Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C400 - C499 >> C401 (With RPO Code UE1)

C401 (With RPO Code UE1)

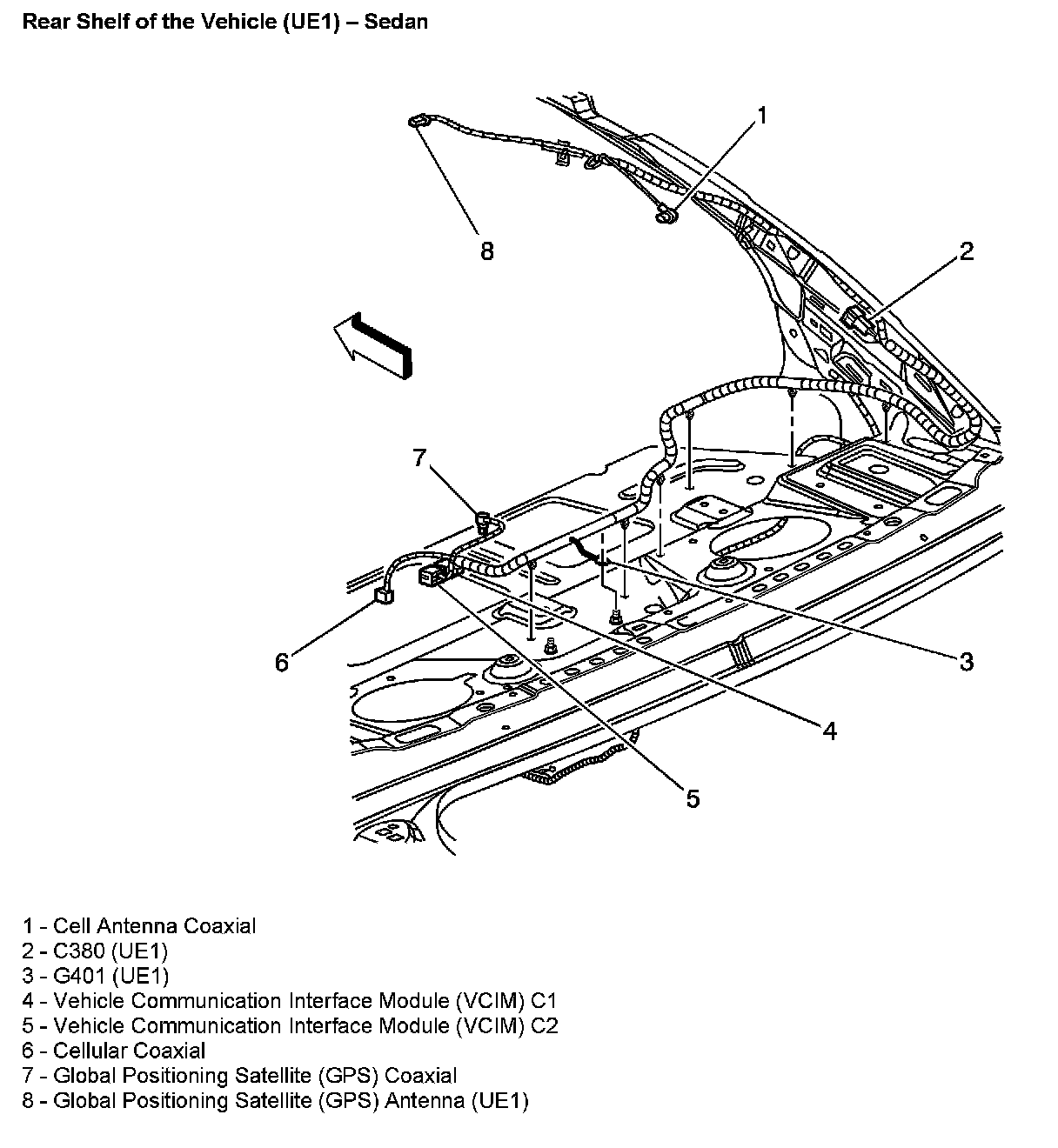

Rear Shelf Of The Vehicle (With RPO Code UE1) - Sedan:
