Steering Column Control Module

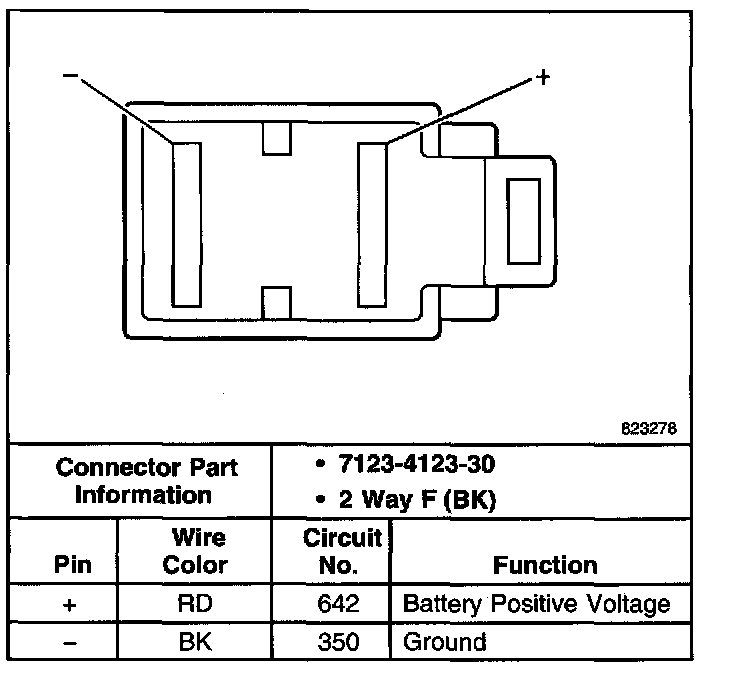

Power Steering Control Module (PSCM) C1:

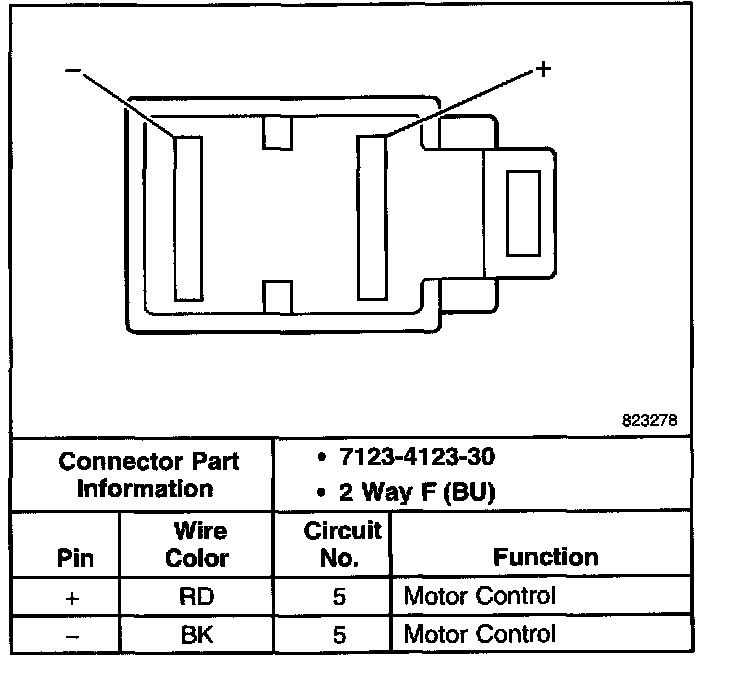

Power Steering Control Module (PSCM) C2:

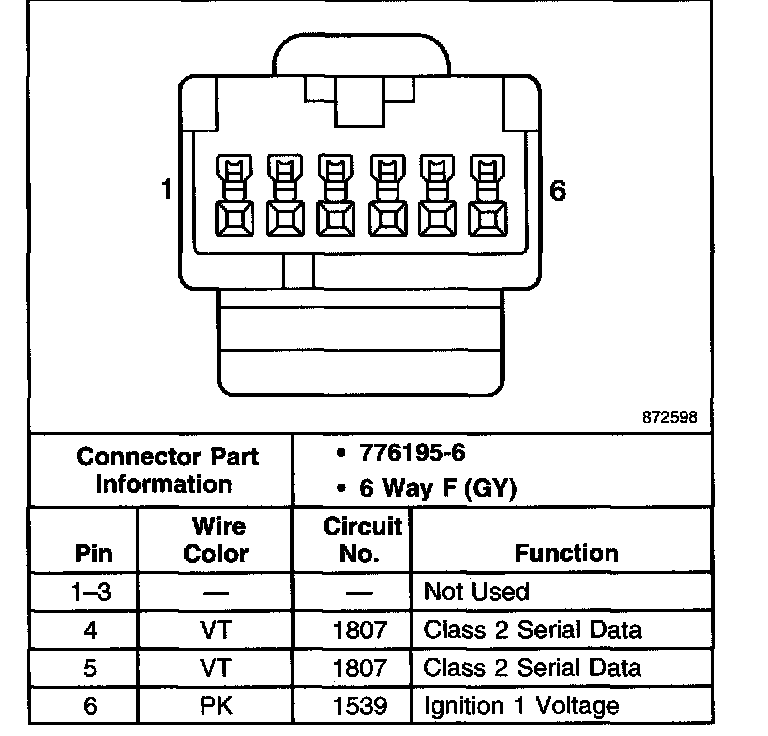

Power Steering Control Module (PSCM) C3:
