ION L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C216 - C490
>>

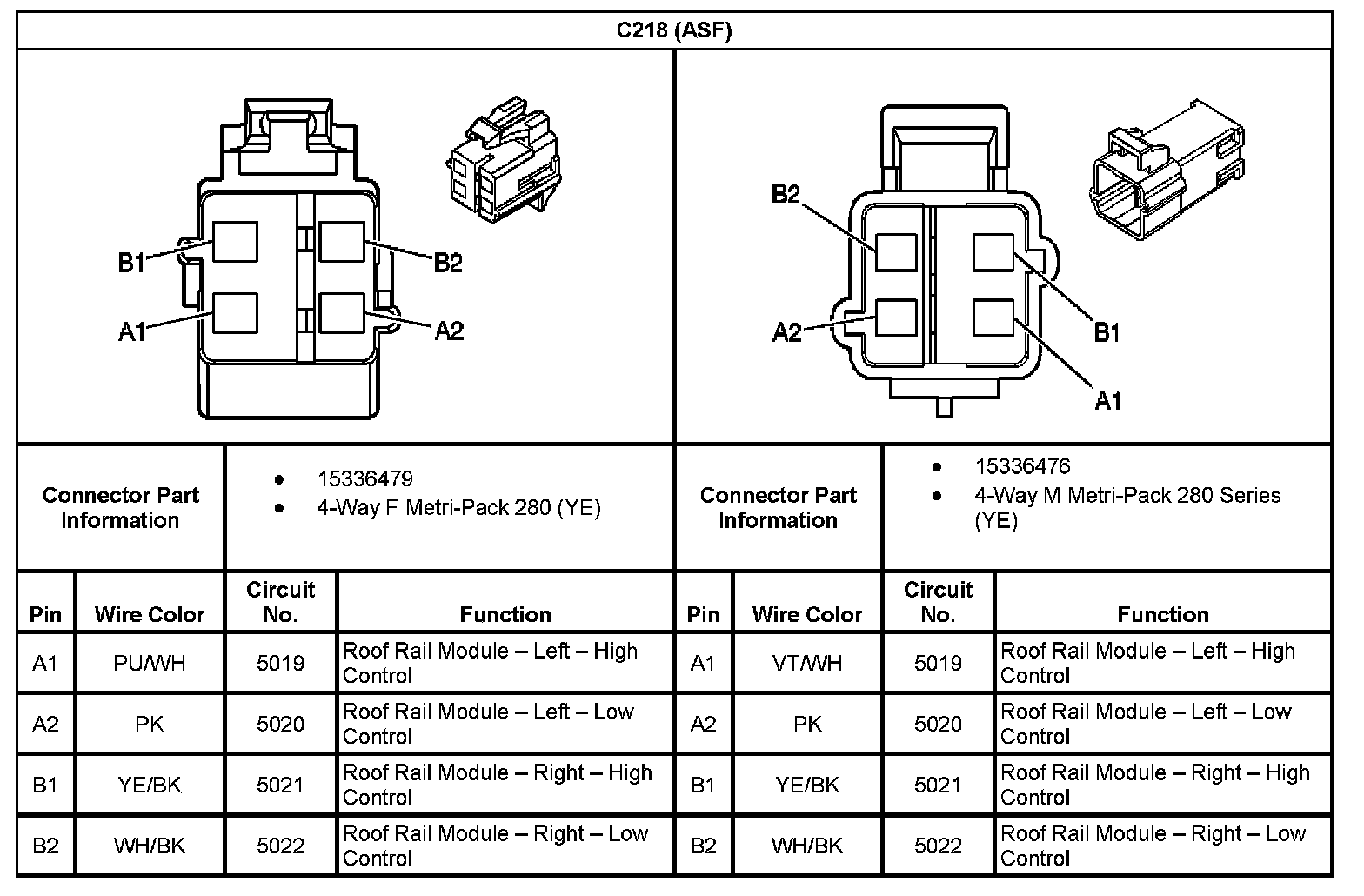

C218 (With RPO Code ASF)
C218 (With RPO Code ASF)
C218 (With RPO Code ASF):
