FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saturn
>>
2004
>>
ION L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C215
>>

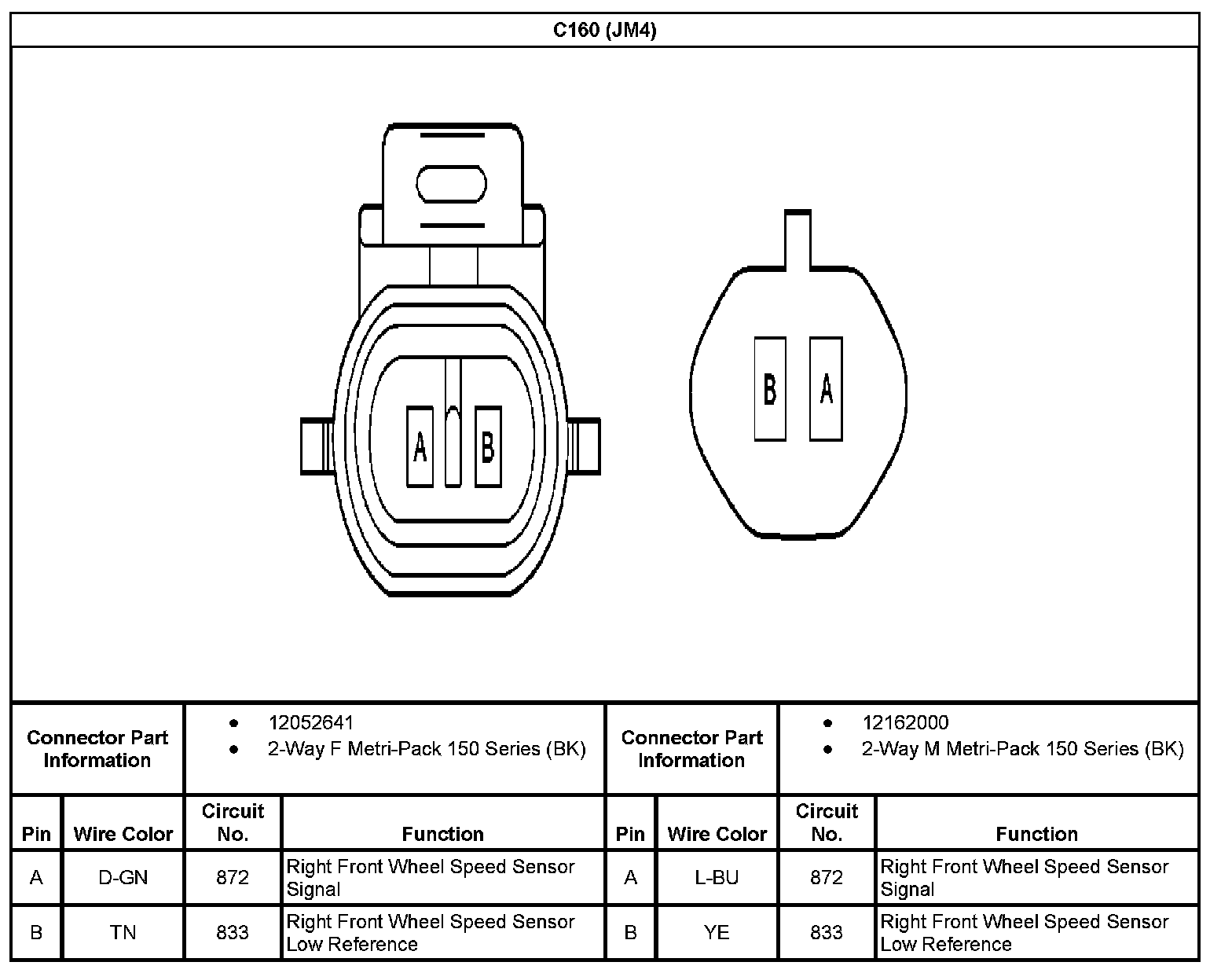

C160 (With RPO Code JM4)
C160 (With RPO Code JM4)
C160 (With RPO Code JM4):
