System Diagram

Headlamp - Left (Coupe):



Headlamp - Left (Sedan):



Headlamp - Right (Coupe):

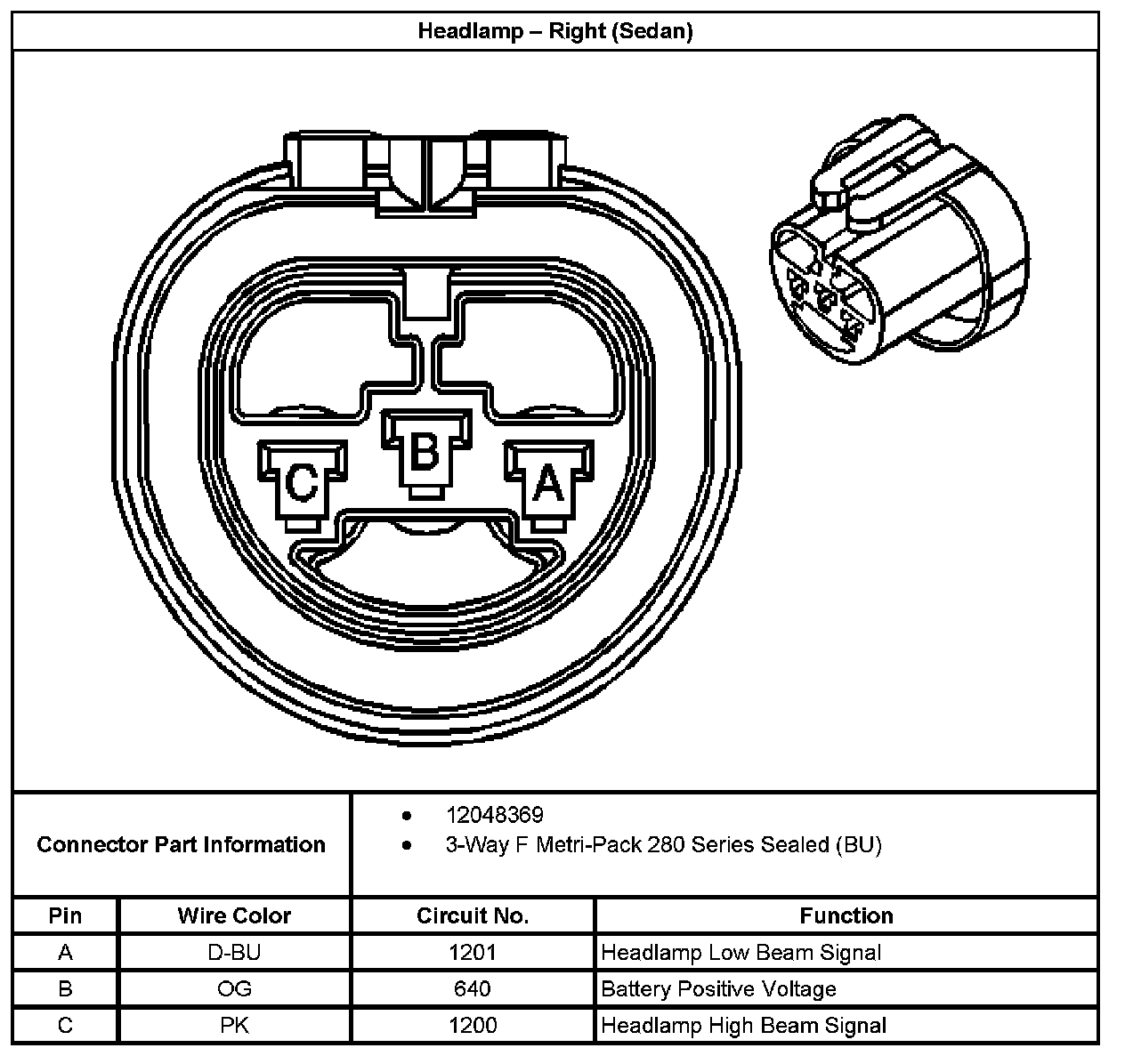

Headlamp - Right (Sedan):
