Saturn
>>
2004
>>
ION L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

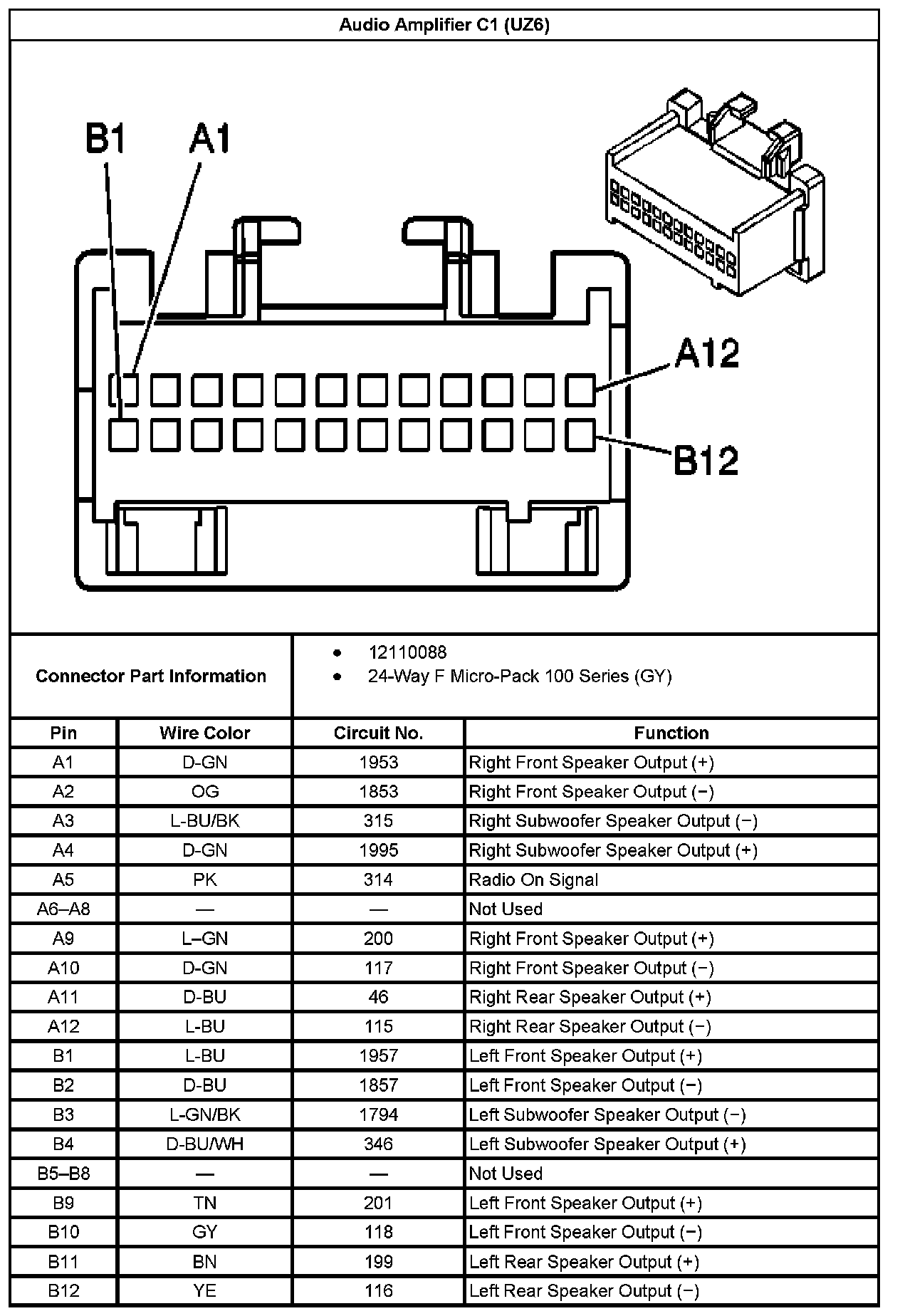

Audio Amplifier C1 (with RPO Code UZ6):

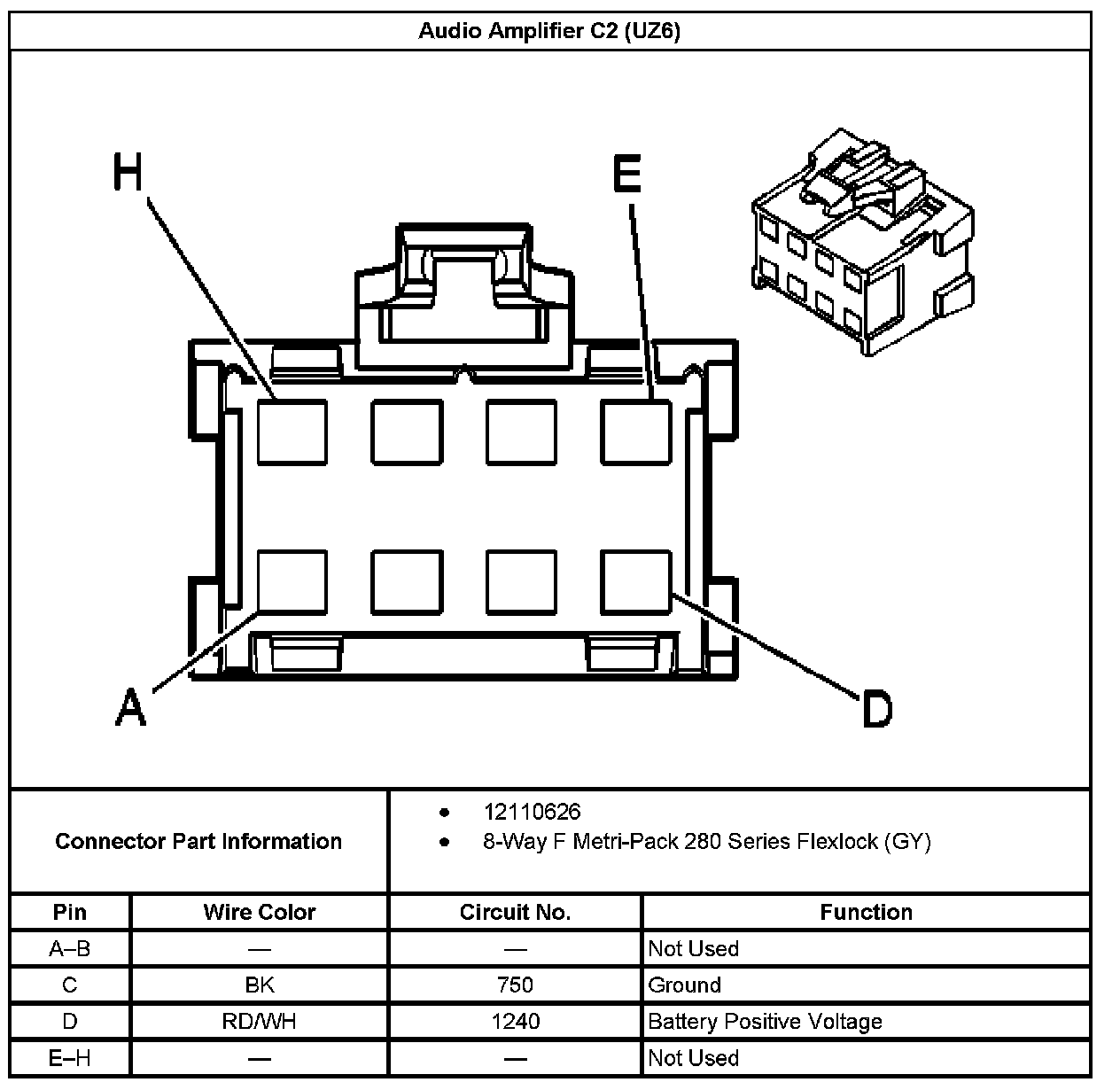

Audio Amplifier C2 (with RPO Code UZ6):
