Window Channel Replacement

Window Channel Replacement - Door

Removal Procedure

1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair
3. Remove the front door window. Refer to Window Replacement - Front Door (Service and Repair) .
4. Remove the front door rear view mirror. Refer to Mirror Replacement (Door Mirror Replacement)
5. Remove the window belt outer sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer - Front (Front Side Door Window Belt Inner Sealing Strip Replacement) .




6. Remove the mastic patch on the window channel lower bolt.

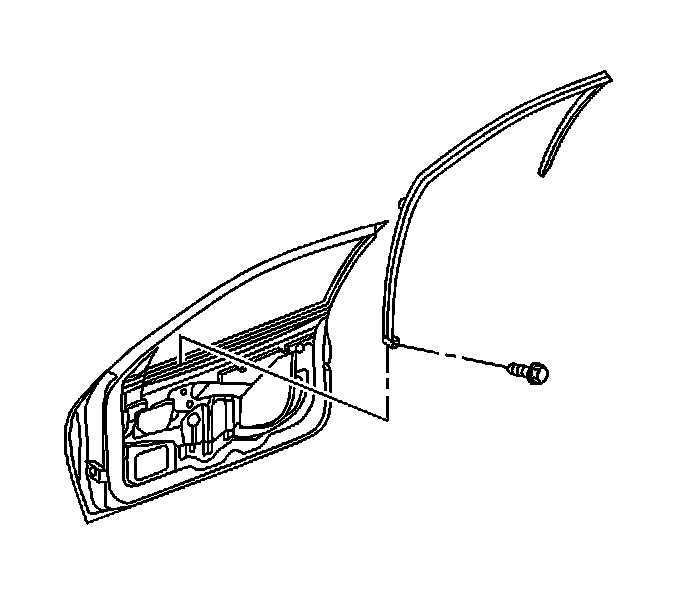

7. Remove the channel lower bolt.
8. Remove the window run channel weatherstrip from the front door.



Installation Procedure





1. Install the run channel weatherstrip to the front door window.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the channel lower bolt.

Tighten the bolt to 6 N.m (53 lb in).

3. Install the window belt outer sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer - Front (Front Side Door Window Belt Inner Sealing Strip Replacement) .
4. Install the front door rear view mirror. Refer to Mirror Replacement (Door Mirror Replacement) .
5. Install the front door window. Refer to Window Replacement - Front Door (Service and Repair) .
6. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair
7. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
