Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Locations

Power Door Lock Switch: Locations

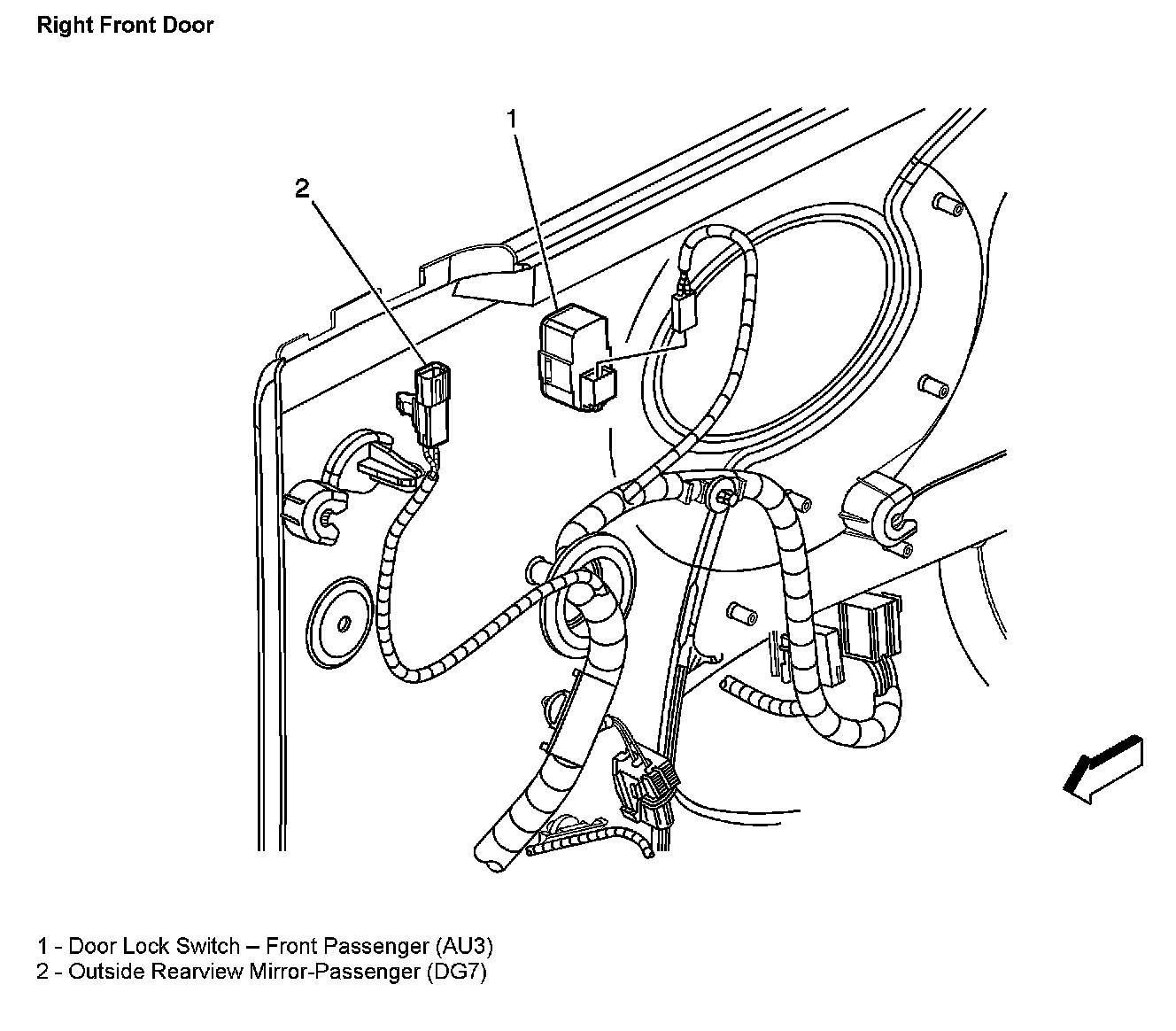

Right Front Door:



Left Front Door (Coupe):
