Power Sunroof Does Not Open to Vent Position

POWER SUNROOF DOES NOT OPEN TO VENT POSITION

DIAGNOSTIC AIDS
If the power sunroof system should not open to the correct vent position, perform the sunroof motor synchronization procedure. Refer to Sunroof Motor Synchronization.

TEST

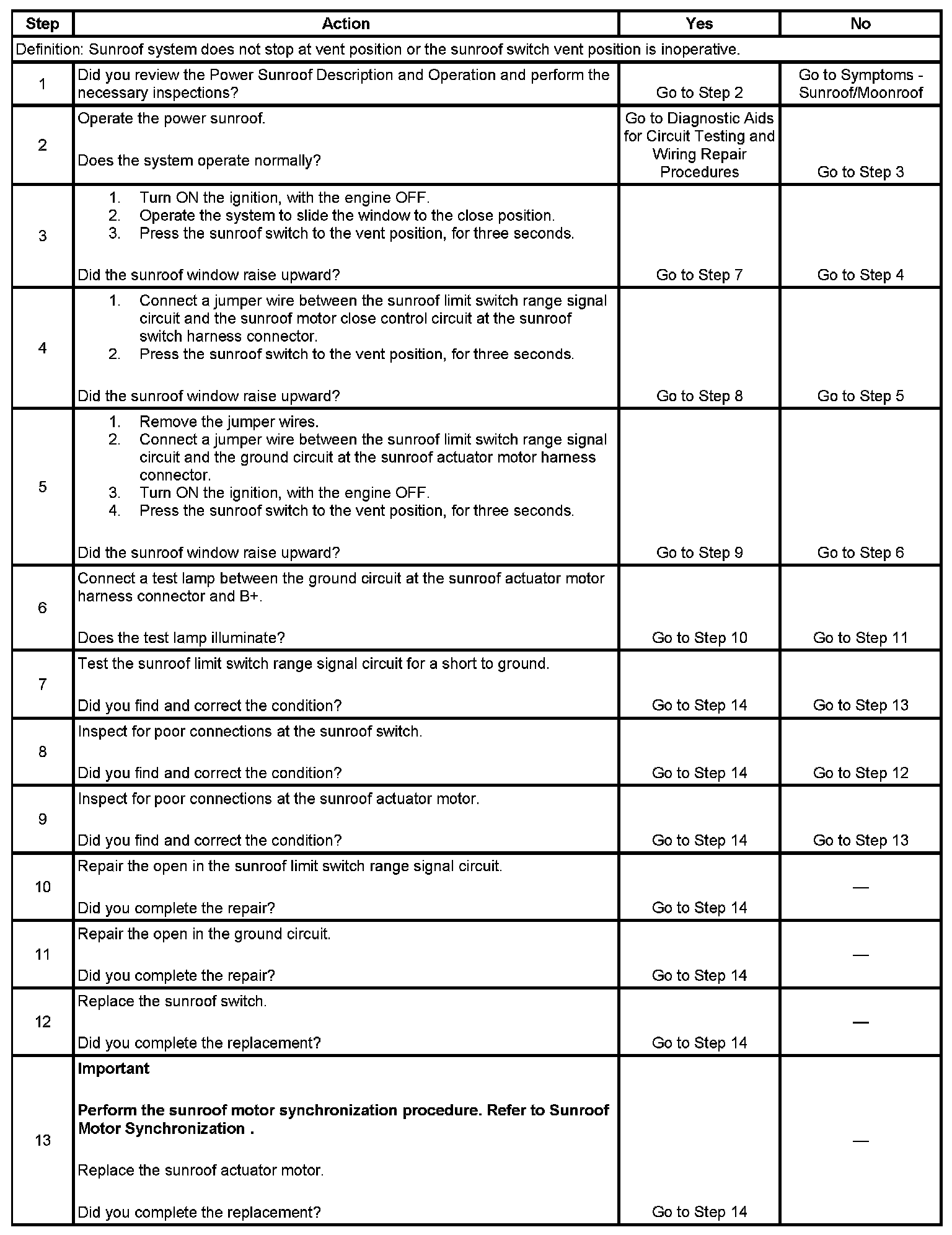

Steps 1-13:

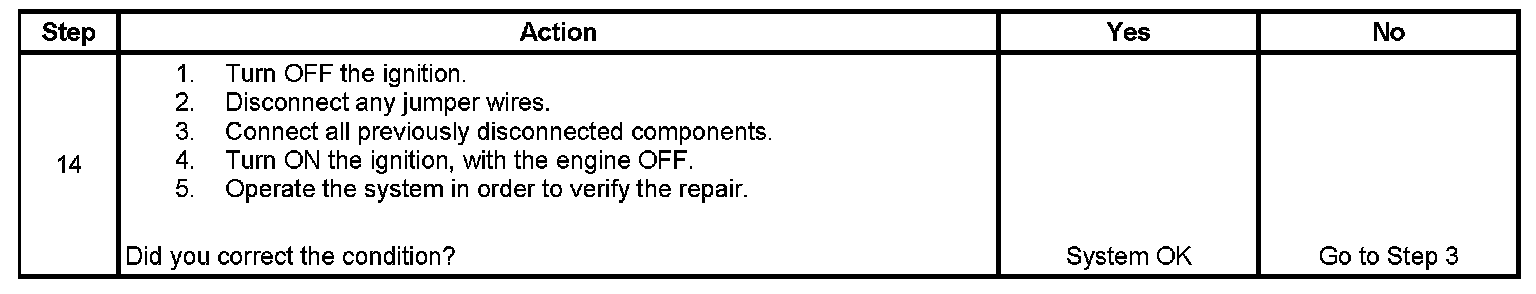

Step 14:
