Sunroof / Moonroof Panel: Service and Repair

SUNROOF WINDOW REPLACEMENT

REMOVAL PROCEDURE
1. Cycle the sunroof window to the vent position.

NOTE: In order to prevent damage to the paint, mask the roof panel in front of the sunroof opening using masking tape and paper.

2. Slide the sunshade rearward.

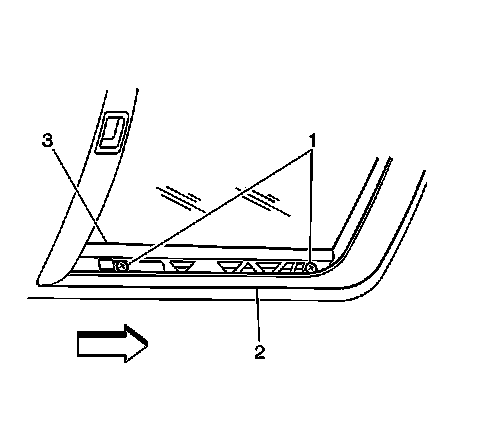

3. Remove the sunroof window screws (1) on both sides.
4. Lift the sunroof window (3) from the sunroof opening.

IMPORTANT: Do NOT scratch the roof surface or the sunroof window.

INSTALLATION PROCEDURE




1. Position the sunroof window (3) into the opening.
2. Ensure that the window trade mark points rearward.
3. Install the sunroof window screws (1). Do not tighten the screws.
4. Carefully close the sunroof window from the vent position to the full closed position.
5. Adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment.
6. Close the sunshade.
7. Cycle the sunroof window to ensure proper operation and fit.
