Power Door Lock Actuator: Diagrams

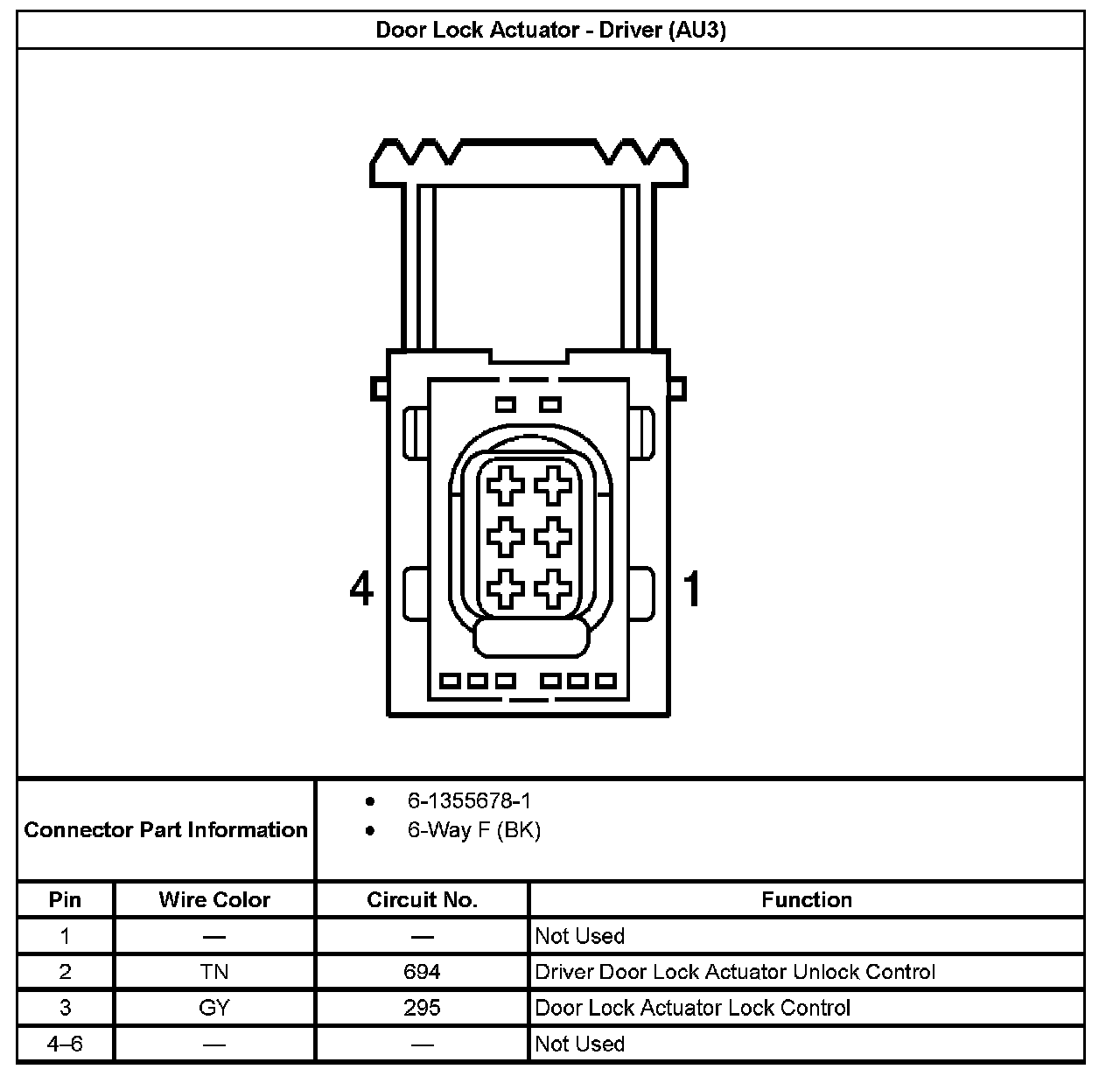

Door Lock Actuator - Driver (With RPO Code AU3):

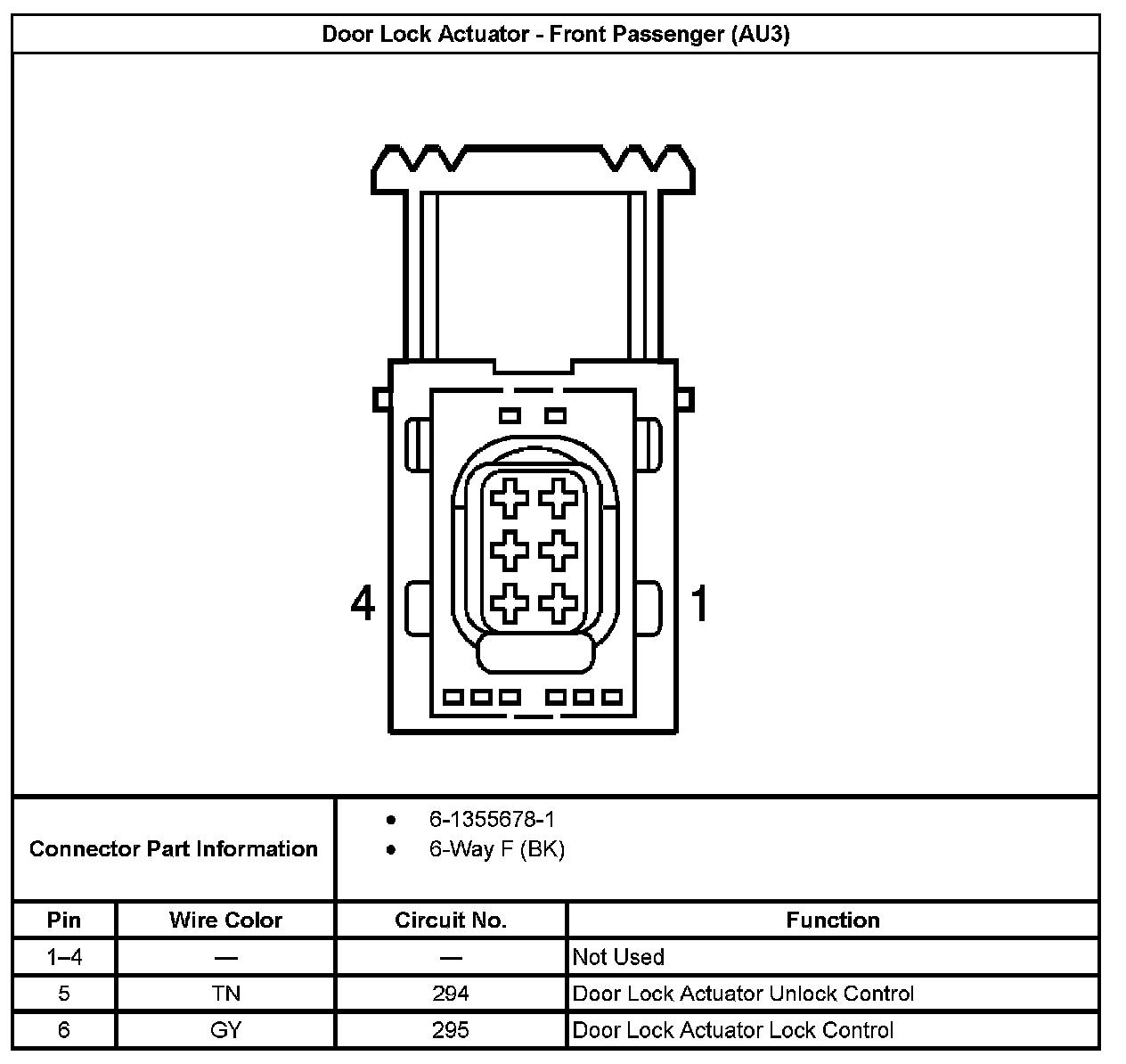

Door Lock Actuator - Front Passenger (With RPO Code AU3):

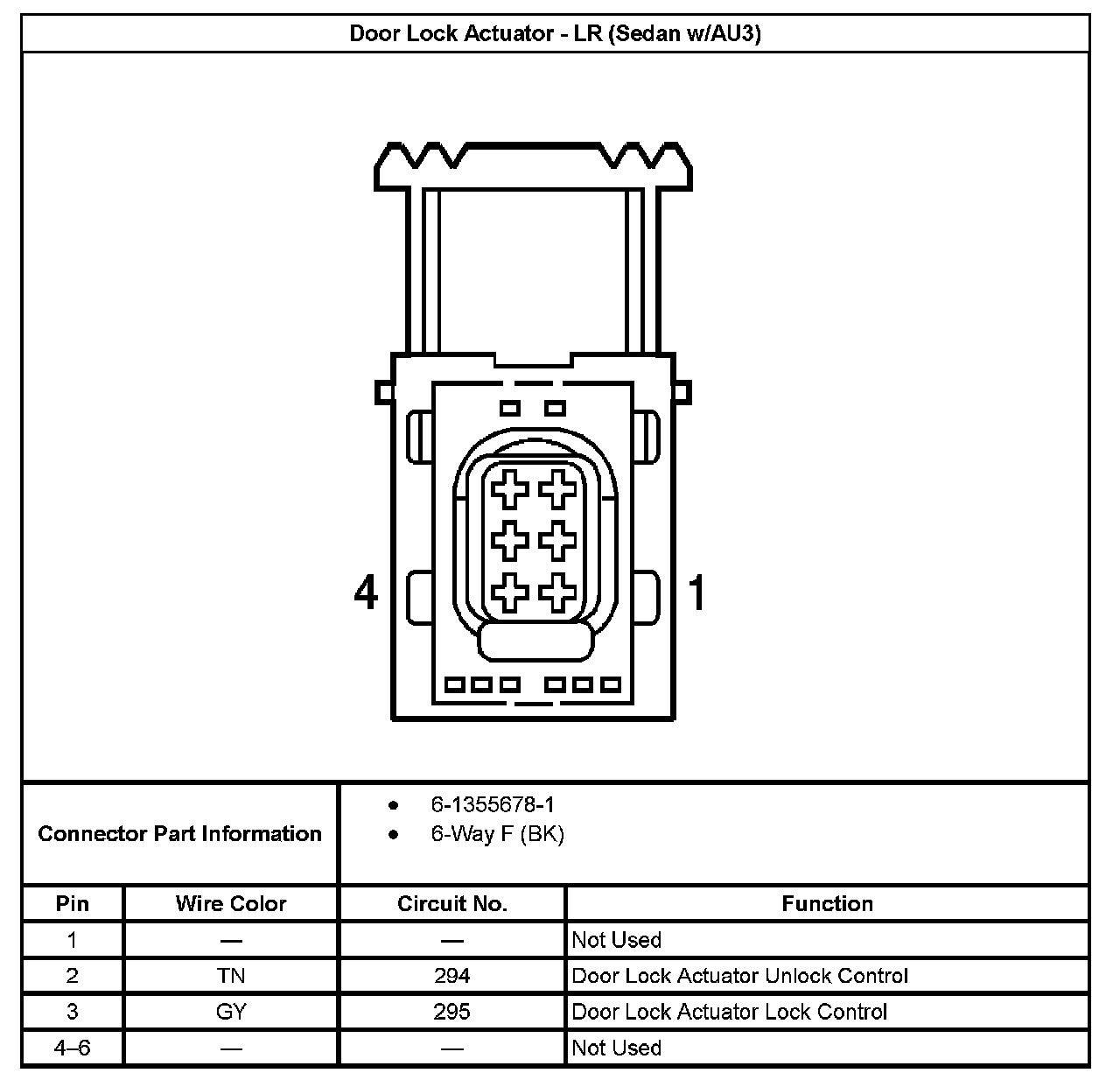

Door Lock Actuator - LR (Sedan With RPO Code AU3):

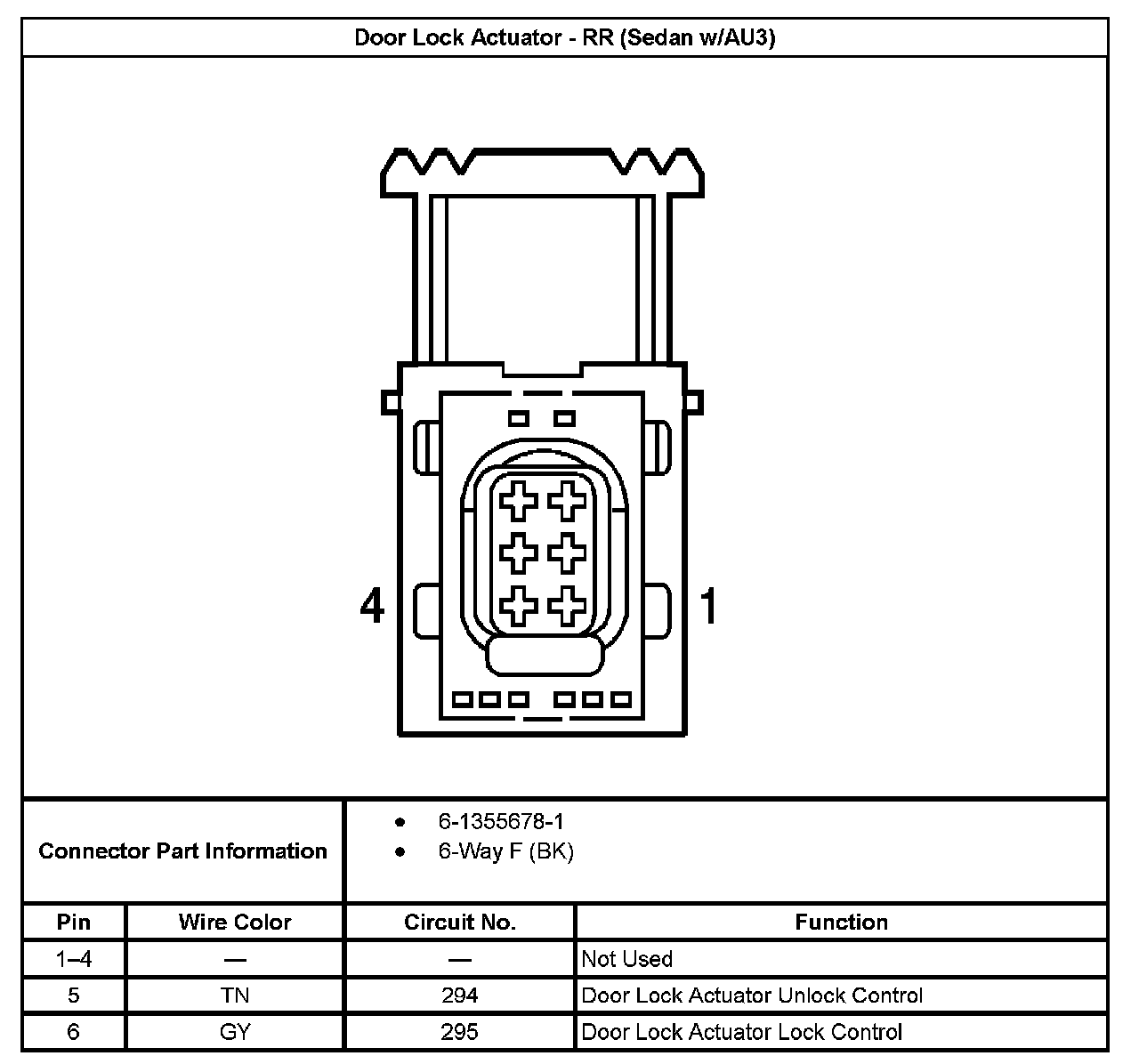

Door Lock Actuator - RR (Sedan With RPO Code AU3):
