Cupholder Replacement - Front Floor Console - Rear



Cup Holder Replacement - Front Floor Console - Rear

Removal Procedure

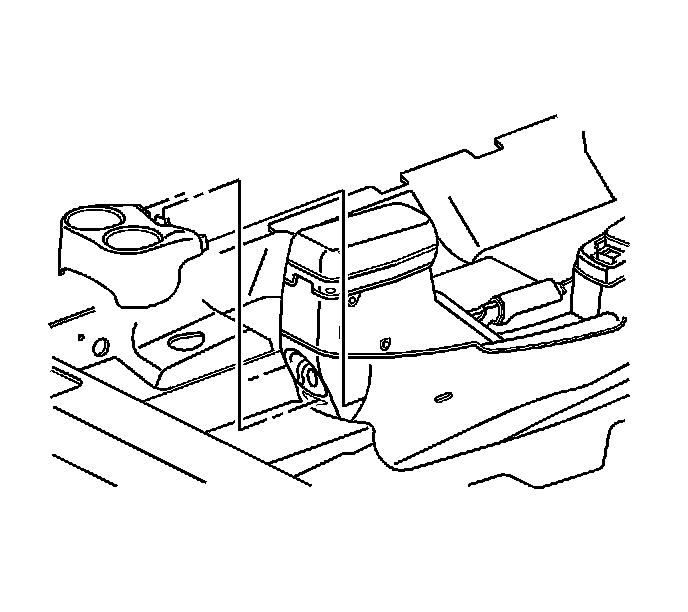

Unsnap the rear cupholder from the console.


Installation Procedure





Align the rear cupholder to the console and snap into place.
