Cup Holder Replacement - Front Floor Console - Rear

CUP HOLDER REPLACEMENT - FRONT FLOOR CONSOLE - REAR

REMOVAL PROCEDURE

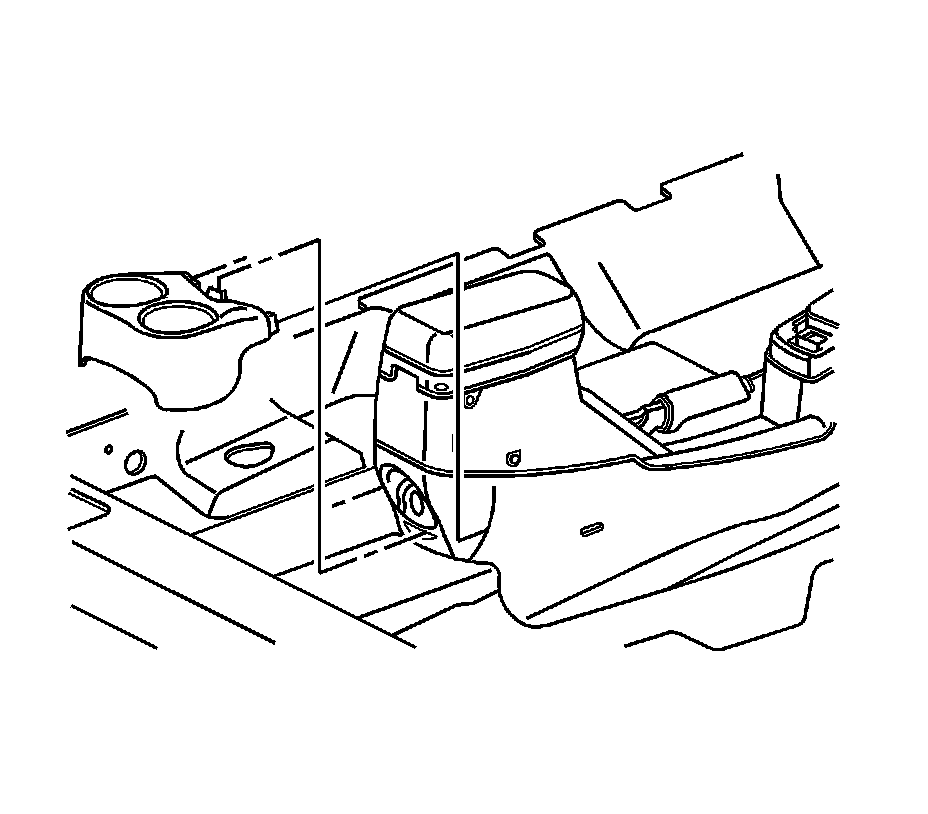

Unsnap the rear cupholder from the console.

INSTALLATION PROCEDURE




Align the rear cupholder to the console and snap into place.
