Center Console End Panel Replacement

Center Console End Panel Replacement

Removal Procedure

1. Remove the front floor console. Refer to Console Replacement - Front Floor (Console Replacement - Front Floor) .

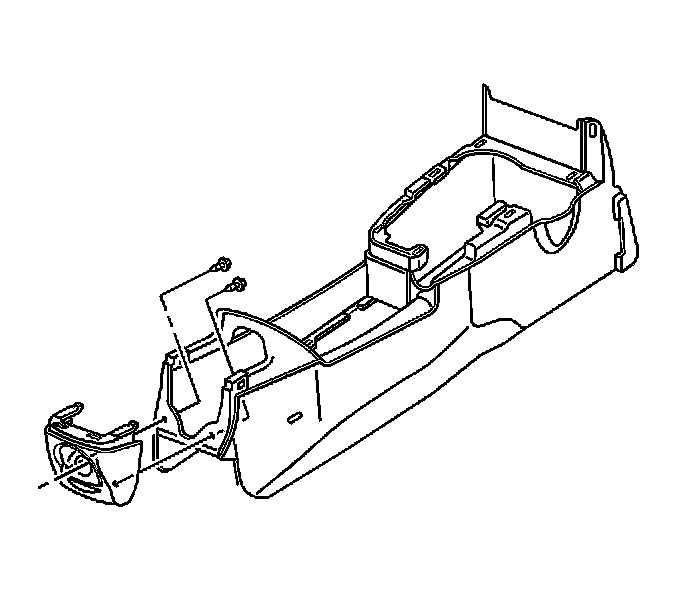

2. Remove the console end panel screws.
3. Rotate the bottom of the console end panel away from the console to remove.



Installation Procedure





1. Align the console end panel tabs to the console and rotate into position.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the console end panel screws.

Tighten the console end panel screws to 2.5 N.m (22 lb in).

3. Install the front floor console. Refer to Console Replacement - Front Floor (Console Replacement - Front Floor) .
