Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Power Trunk / Liftgate Lock Actuator >> Locations

Power Trunk / Liftgate Lock Actuator: Locations

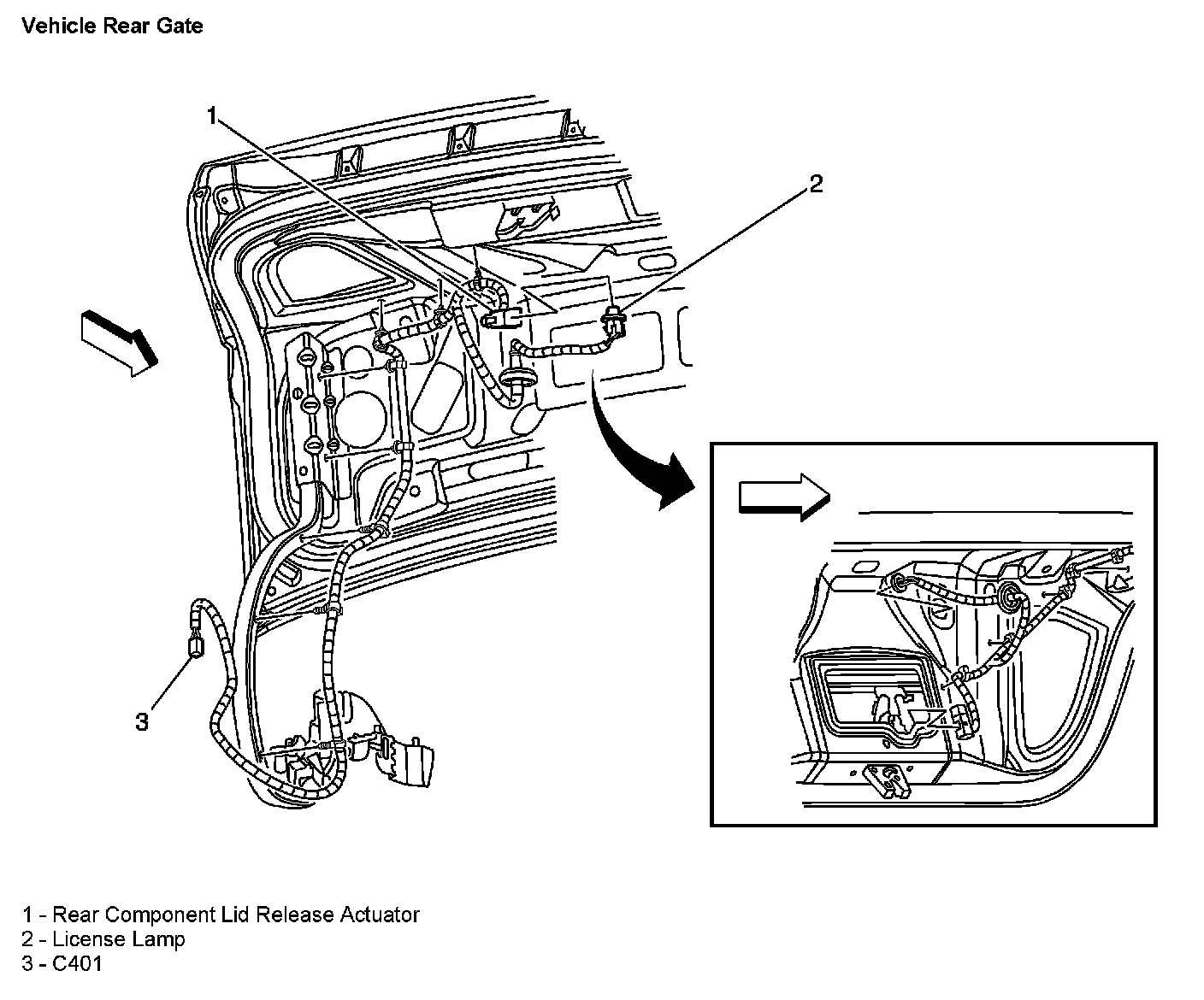

Vehicle Rear Gate:

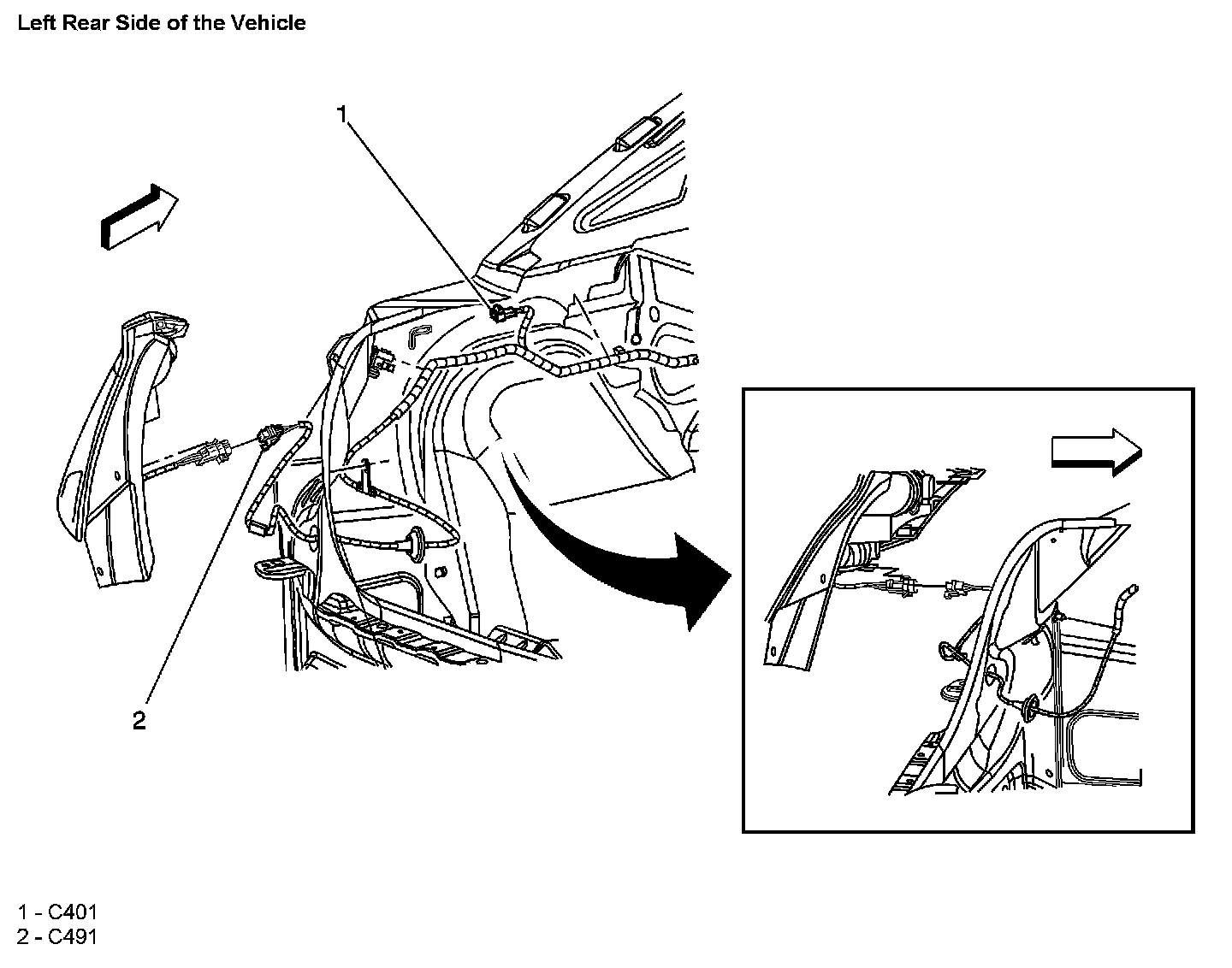

Left Rear Side Of The Vehicle:
