Front Door Striker: Service and Repair

Striker Replacement - Door

Removal Procedure

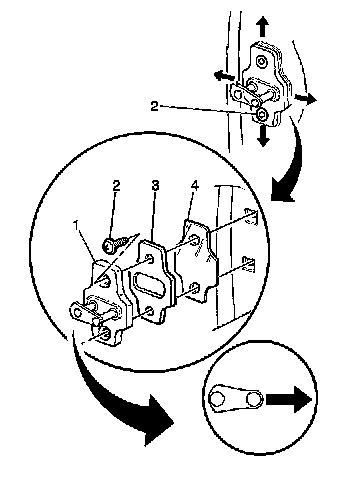

1. Remove the striker bolts (2).
2. Remove the washer (4).
3. Remove the spacer (3).
4. Remove the striker (1).



Installation Procedure





1. Install the washer (4).
2. Install the spacer (3).
3. Install the striker (1).
4. Align the lock striker. Refer to Lock Striker Adjustment - Door (Sedan, Coupe - Front) (Lock Striker Adjustment - Door (Sedan, Coupe - Front)) .

Notice: Refer to Fastener Notice in Cautions and Notices.

5. Install the striker bolts (2).

Tighten the striker bolts (2) to 25 N.m (18 lb ft).
