Front Door Limiter: Service and Repair

Door Check Strap Replacement - Side Front

Removal Procedure

1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair




2. Remove the front door check link bolt.

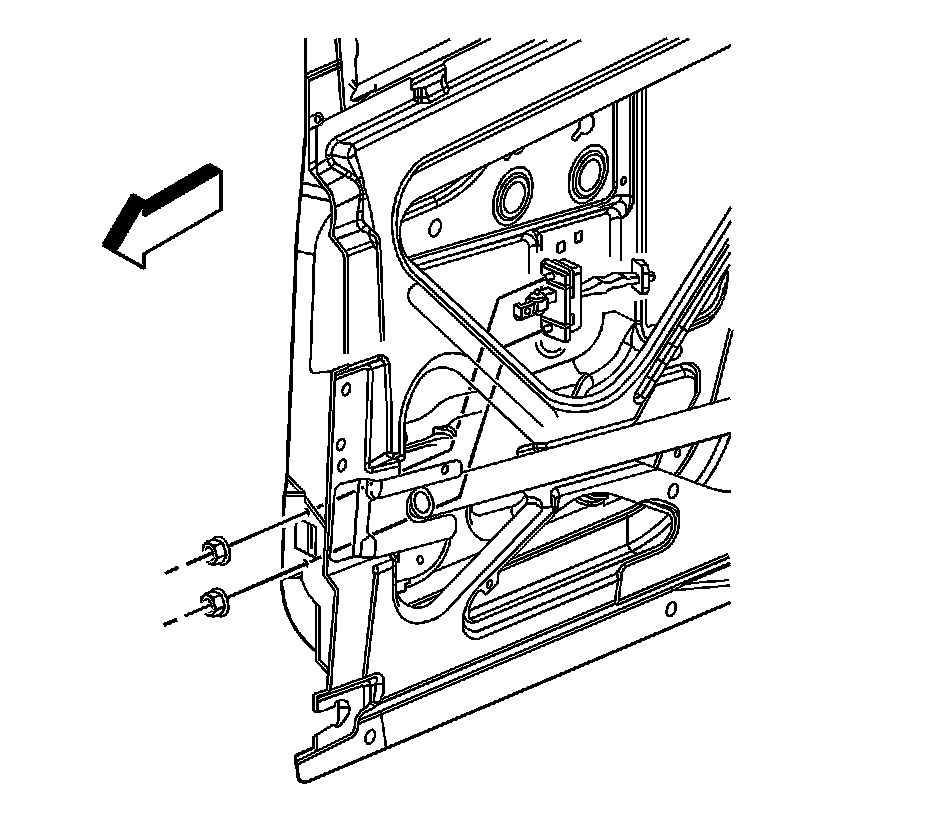

3. Remove the front door check link nuts.
4. Remove the front door check link from the door.



Installation Procedure






Important: The letters R and L are molded into the check link arm. If you are installing on the right side, the letter R must face up. If you are installing on the left side, the letter L must face up.


1. Position the front door check link to the door.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the front door check link nuts.

Tighten the nuts to 10 N.m (89 lb in).





3. Install the front door check link bolt.

Tighten the bolt to 9 N.m (80 lb in).

4. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair
