Speaker Replacement-Front Door

SPEAKER REPLACEMENT - FRONT DOOR

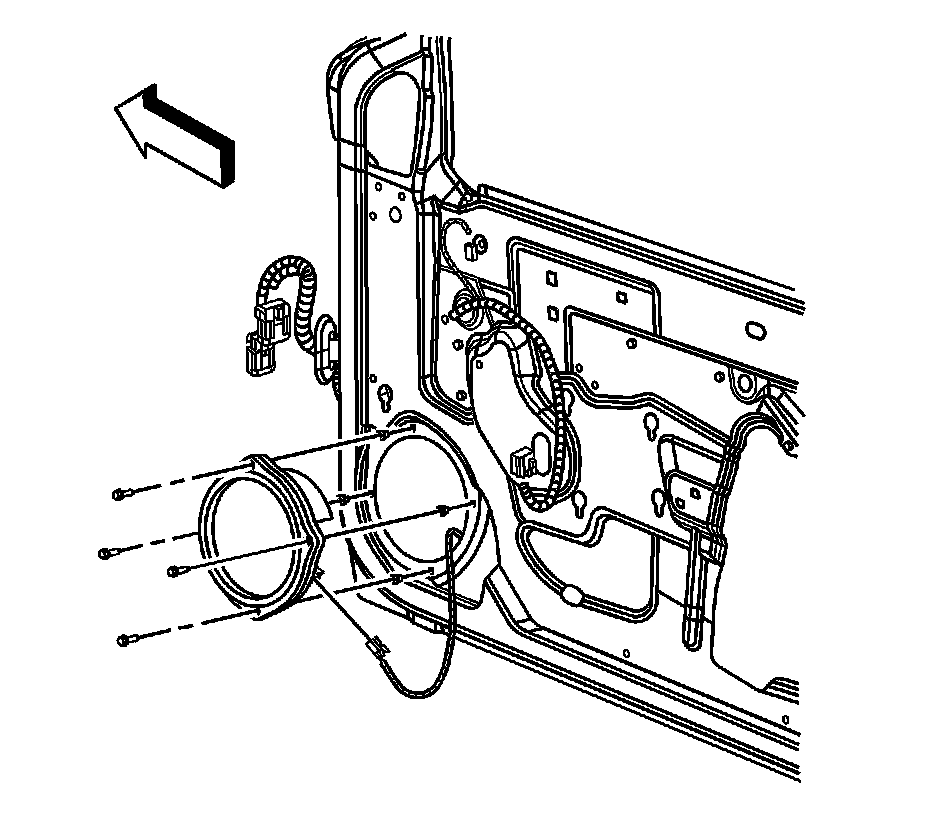

REMOVAL PROCEDURE




1. Remove the front door trim panel.
2. Remove the front door speaker screws.
3. Disconnect the electrical connector from the speaker.
4. Remove the speaker from the front door.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the speaker.
2. Install the speaker to the front door.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the screws to the speaker.

Tighten
Tighten the screws to 1.2 N.m (9 lb in).

4. Install the front door trim panel.
