Fixed Antenna Replacement

FIXED ANTENNA REPLACEMENT

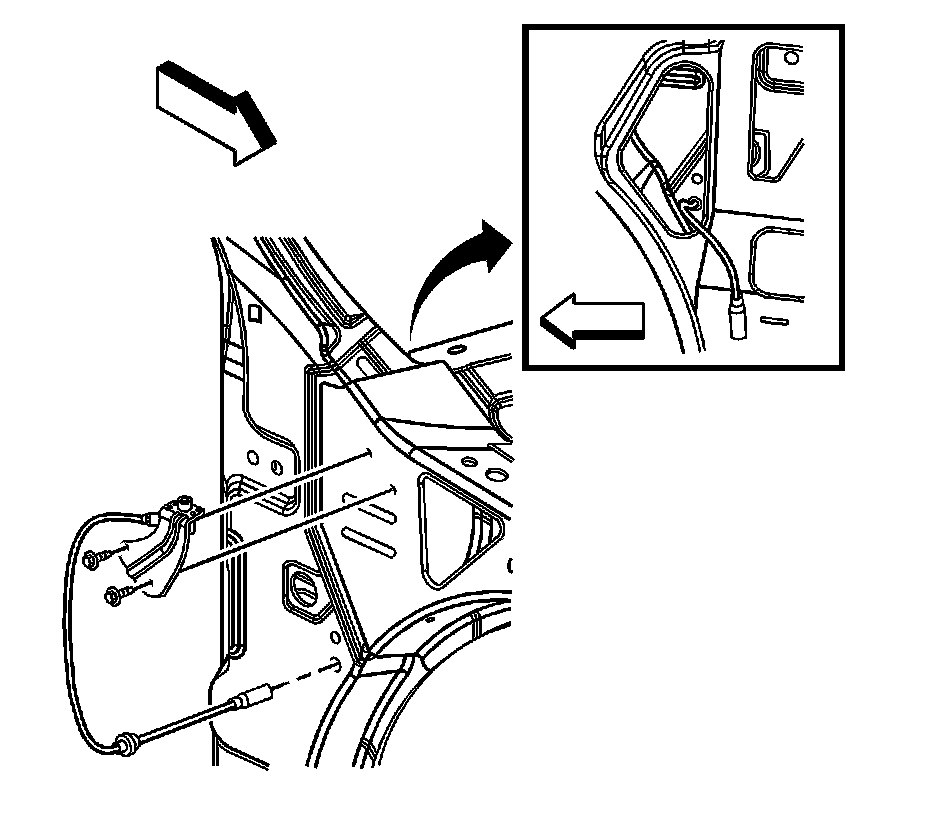

REMOVAL PROCEDURE
1. Remove the front fender.




2. Remove the antenna mast from the antenna base by turning counterclockwise.
3. Disconnect the antenna lead-in from the antenna base.
4. Remove the antenna base screws from the bracket on the antenna base.
5. Remove the antenna base.

INSTALLATION PROCEDURE




1. Connect the antenna lead-in to the antenna base.
2. Install the antenna base.
3. Install the screws to the bracket on the antenna base.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 10 N.m (89 lb in).

4. Install the antenna mast to the antenna base by turning clockwise.

Tighten
Tighten the mast to 10 N.m (89 lb in).

5. Install the front fender.
