C0476

DTC C0476

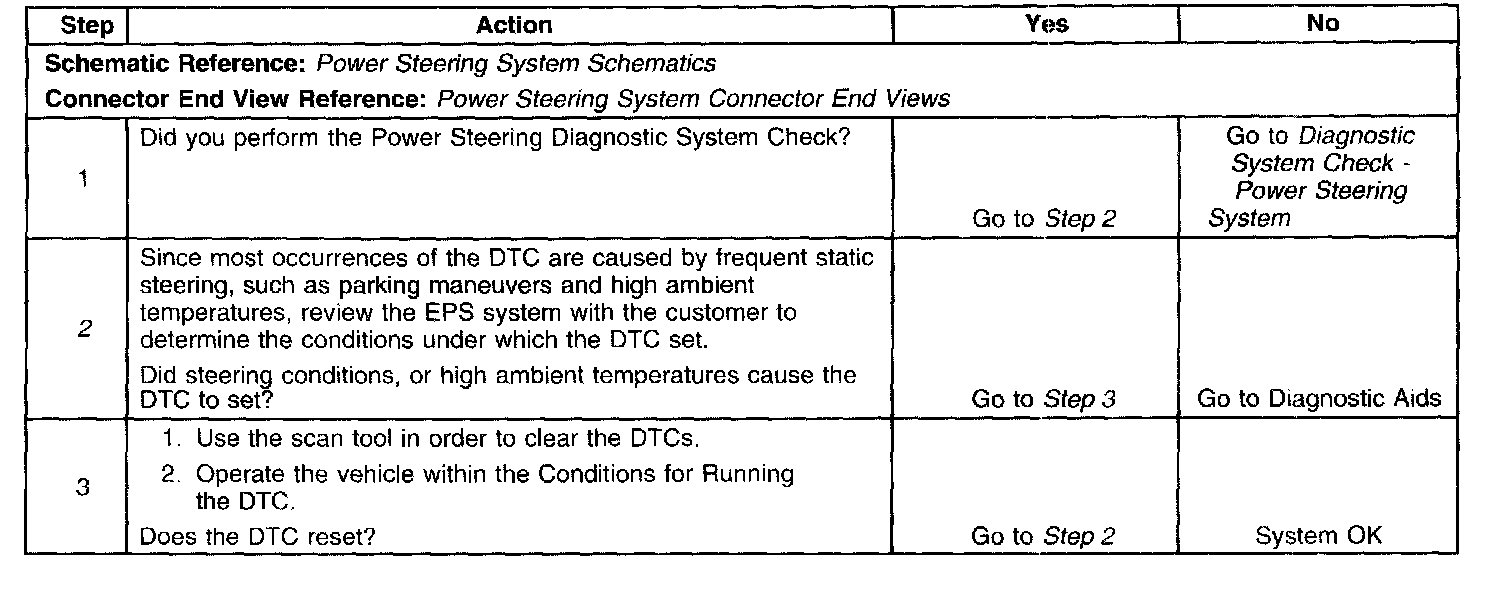

Steps 1-3:

Circuit Description
The Power Steering Control Module (PSCM) monitor the temperature of the Electric Power Steering (EPS) system. The PCSM uses voltage and current levels calculate an estimated system temperature. If the PSCM detects a high system temperature event is occurring the amount of assist is reduced to lower the EPS system temperature to prevent system thermal damage.

Condition for Running the DTC
The ignition is ON.

Conditions for Setting the DTC
The PSCM detects a high system temperature.

Action Taken When the DTC Sets
- A DTC C0476 is stored in memory.
- Steering assist is reduced.

Conditions for Clearing the DTC
- A current DTC will clear when the EPS system temperature returns to normal.
- A history DTC will clear after 100 consecutive malfunction free ignition cycles.
- Using a scan tool

Diagnostic Aids
- DTC C0476 does not indicate that a malfunction has occurred. Rather that the PSCM had to limit current to the EPS motor to avoid system thermal damage.
- Inspect the under dash area around the EPS assembly. ensure that no other components have come in contact with the EPS assembly such as under dash insulation or other electrical components.
- Ensure that no steering components down stream of the EPS assembly, such as ball joints, tie rod ends, universal joints, or the steering rack and pinion are mechanically binding.

Test Description
The number below refer to the step number on the diagnostic table.
2. Tests if the high system temperature is system, or driving condition related.
