Specifications
>>
Pressure, Vacuum and Temperature Specifications
Pressure, Vacuum and Temperature Specifications

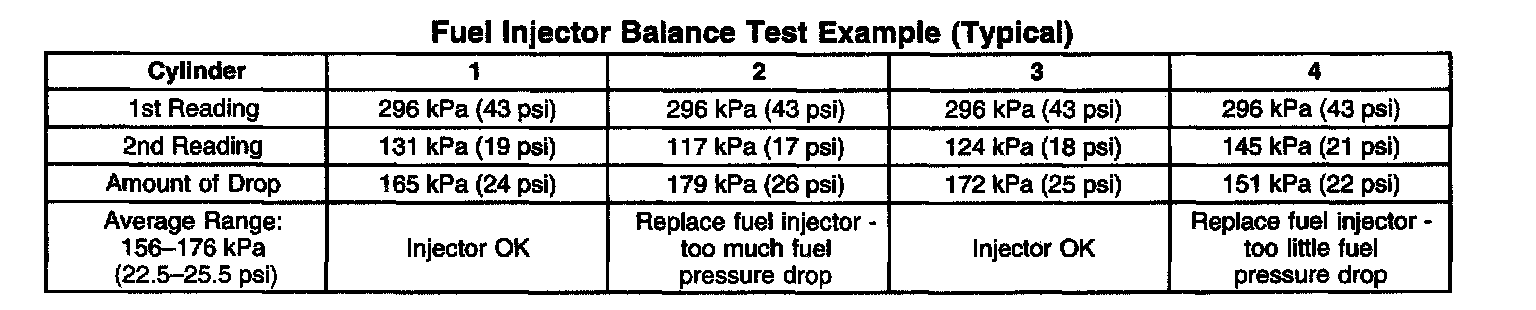

Fuel Injector Balance Test Example (Typical):
Pressure drop within
10 kPa (1.5 psi)
of the average pressure drop value.
