Intake Manifold Installation

Intake Manifold Installation

Important: Ensure that the bolts and the bolt holes are clean and free of contaminants.





1. Install the intake manifold spacer and install the intake manifold spacer seals.
2. Install the intake manifold spacer bolts.

Notice: Refer to Fastener Notice in Service Precautions.

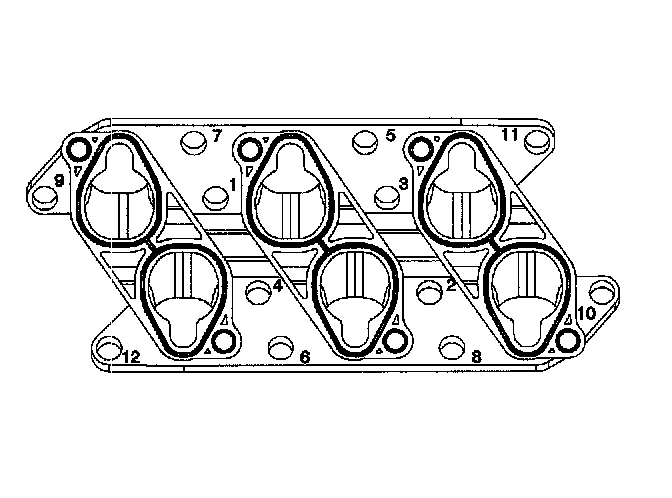

3. Apply LOCTITE 242 thread locker to the spacer bolt. Tighten using the torque sequence shown.
^ Tighten the intake manifold spacer bolt to 20 Nm (15 ft. lbs.).

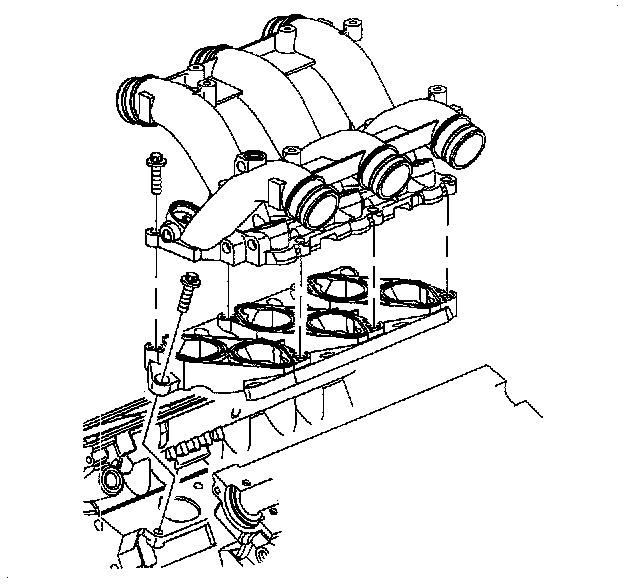

4. Install the intake manifold.
5. Install the intake manifold bolts, and apply LOCTITE 242 thread locker.
^ Tighten the intake manifold bolts to 20 Nm (15 ft. lbs.).
