Home >> Saturn >> 2003 >> LW300 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> System Diagram >> HVAC Jumper to I/P Inline - I/P

HVAC Jumper to I/P Inline - I/P

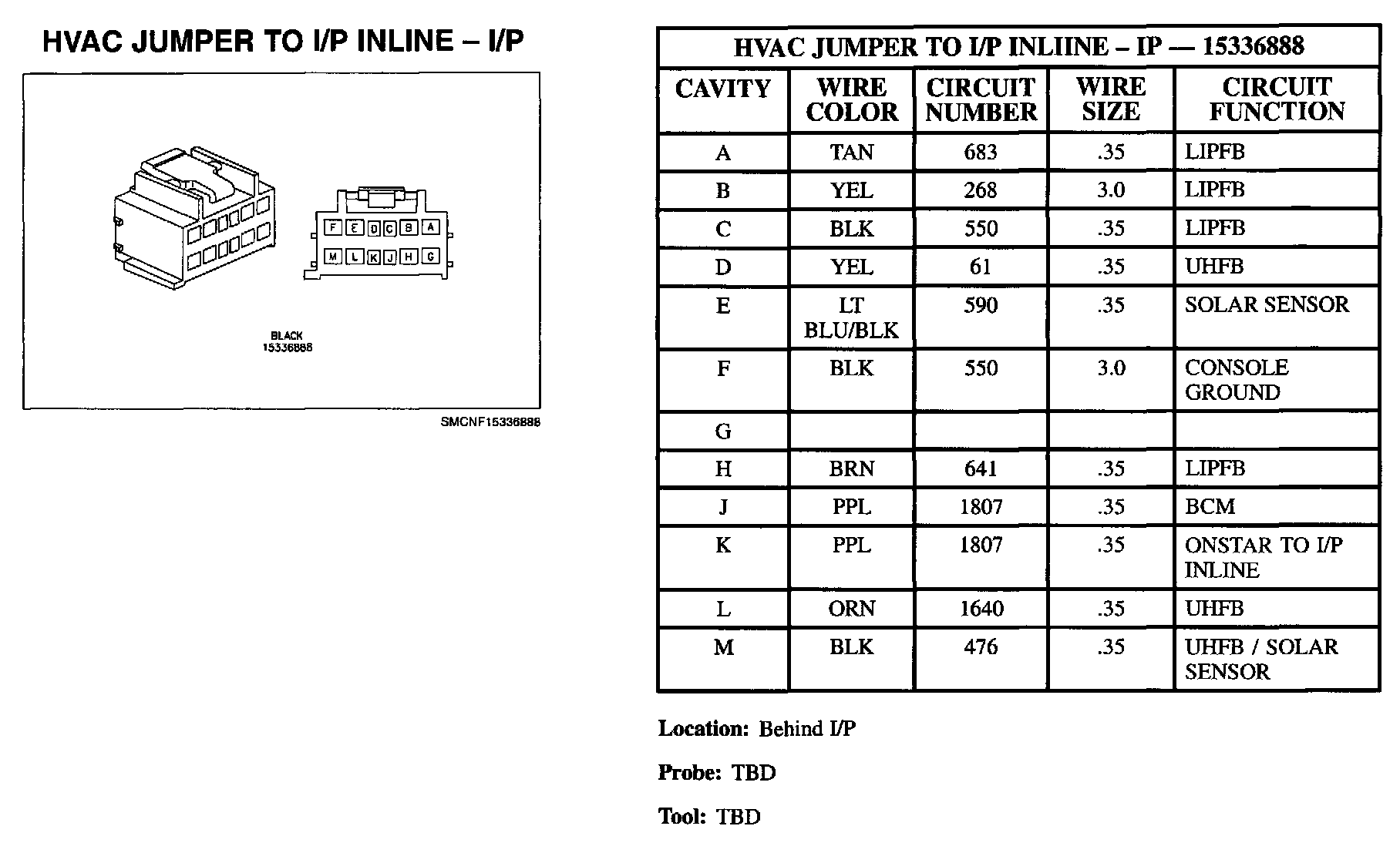

HVAC Jumper To I/P Inline - I/P:
