Side Air Bag - Module Inflator Restraint
Side Air Bag - Module Inflator Restraint

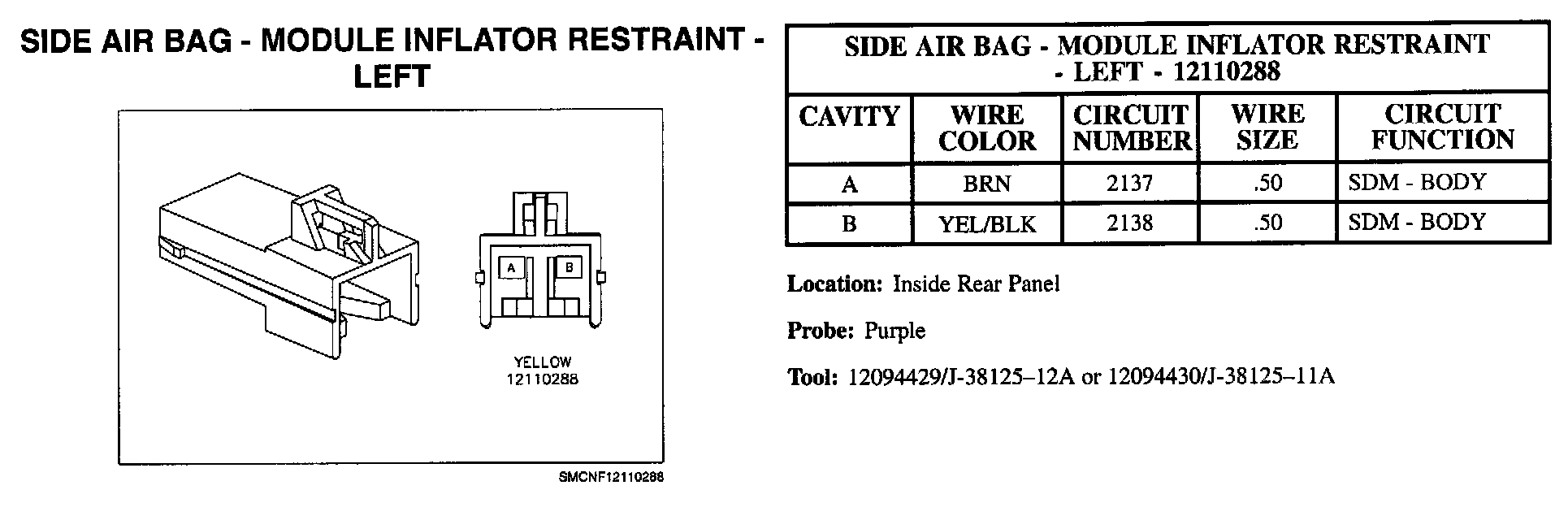

Side Air Bag - Module Inflator Restraint - Left:

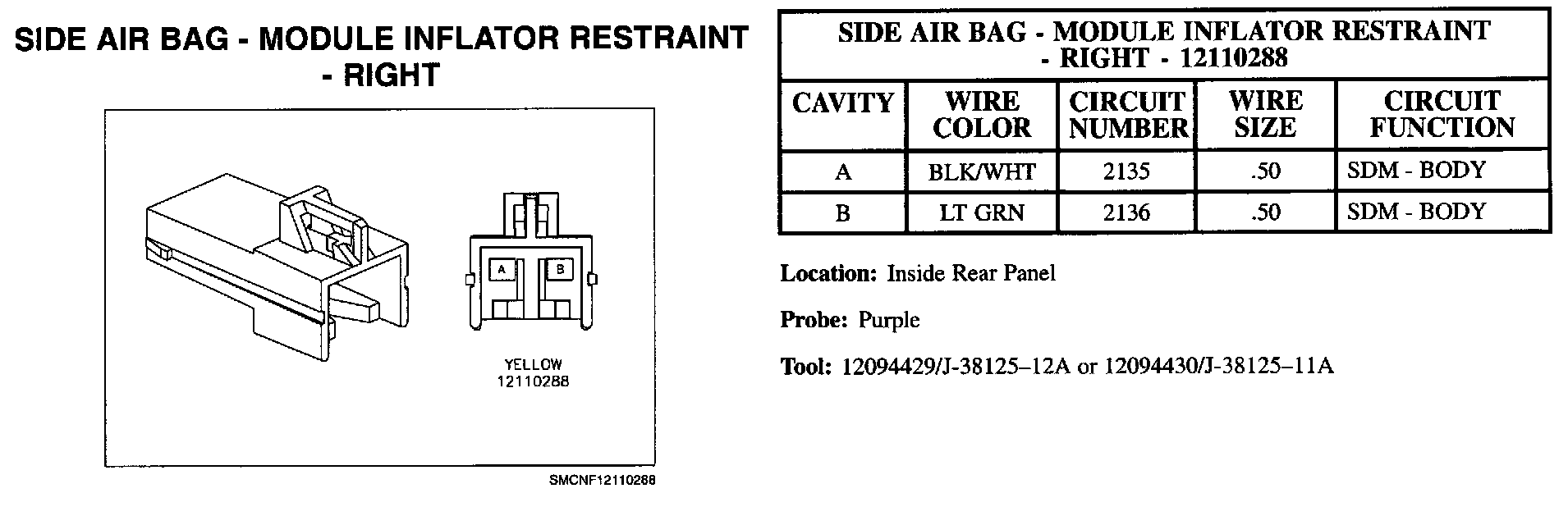

Side Air Bag - Module Inflator Restraint - Right:
