Power Door Lock Actuator: Diagrams

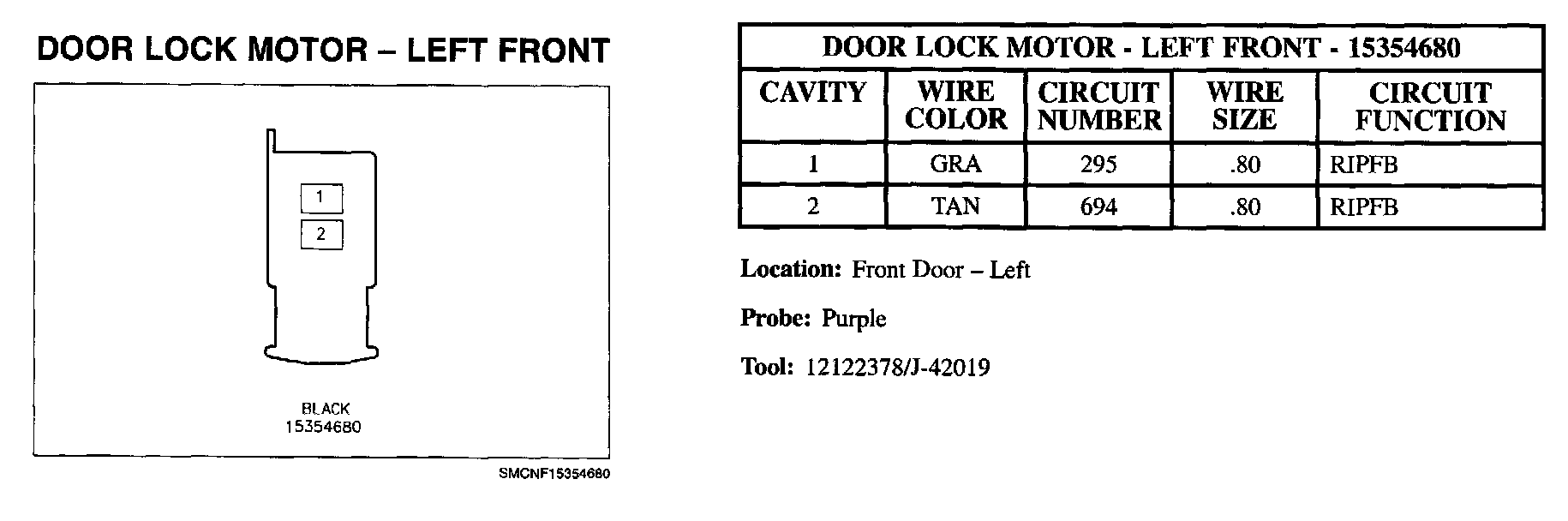

Door Lock Motor - Left Front:
Door Lock Motor - Left Rear:

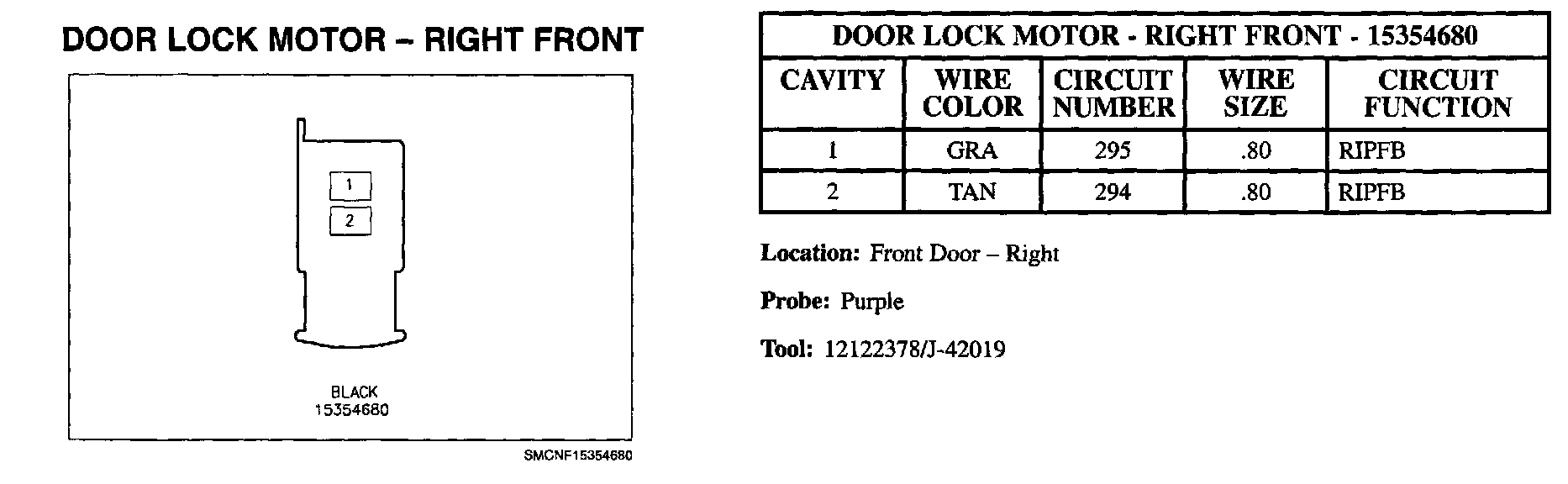

Door Lock Motor - Right Front:

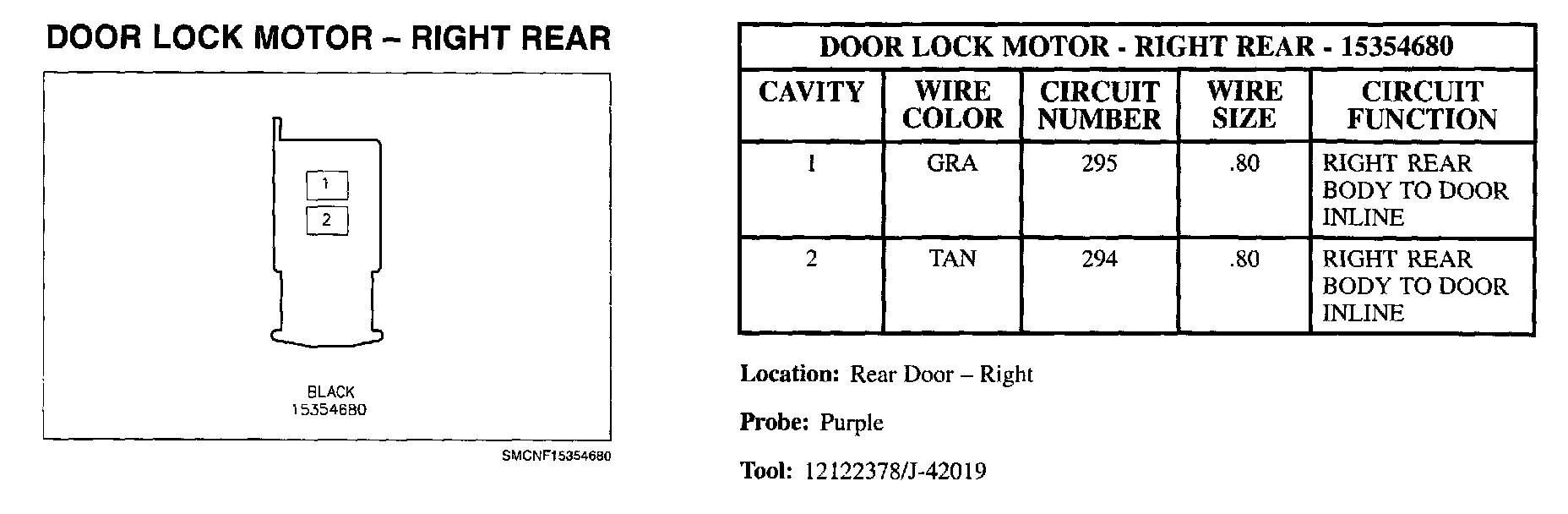

Door Lock Motor - Right Rear:
