Remote Keyless Entry (RKE)/Security System - Schematics
Remote Keyless Entry (RKE)/Security System - Schematics

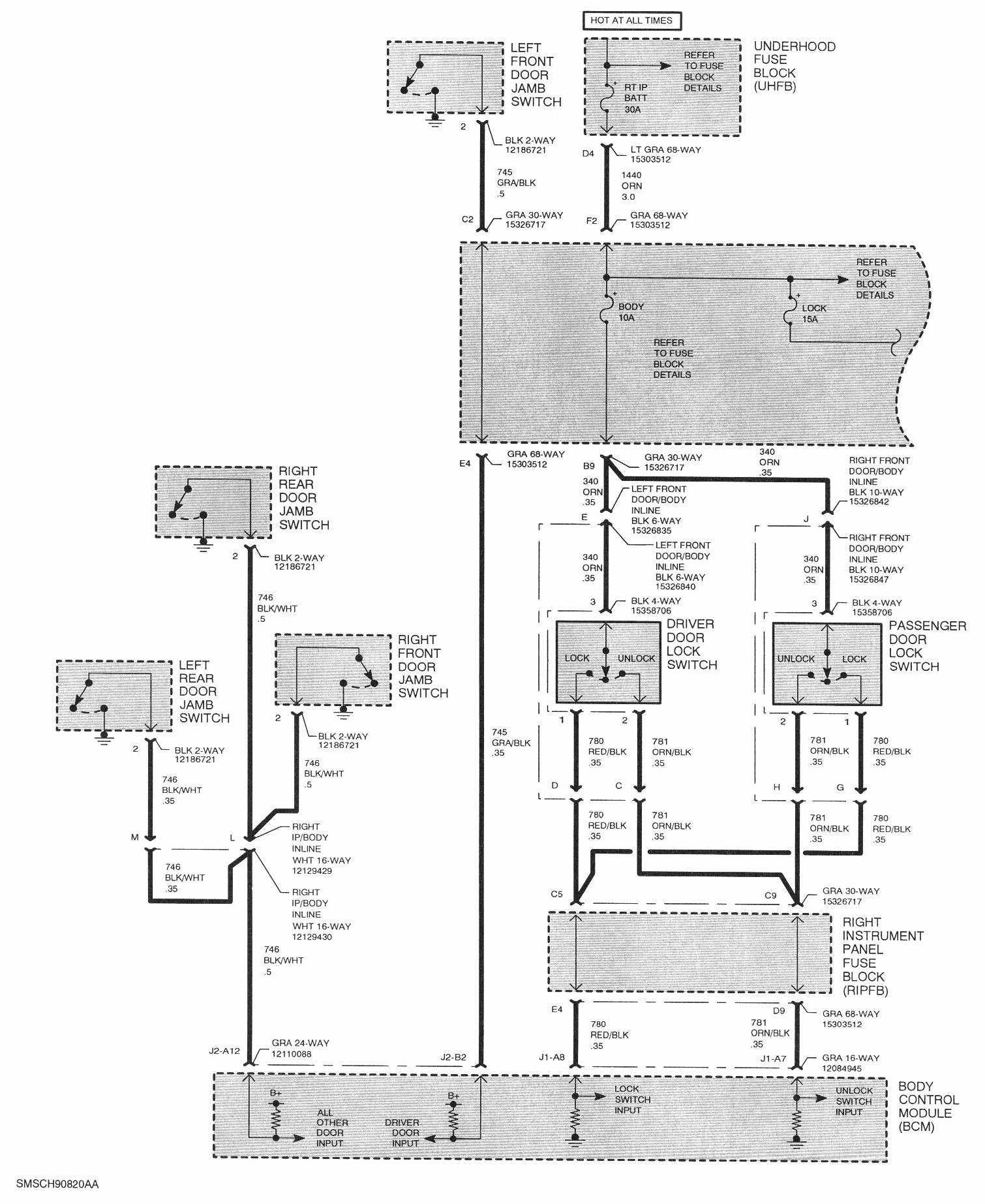

Remote Keyless Entry (RKE)/Security System - Schematics Part 1:

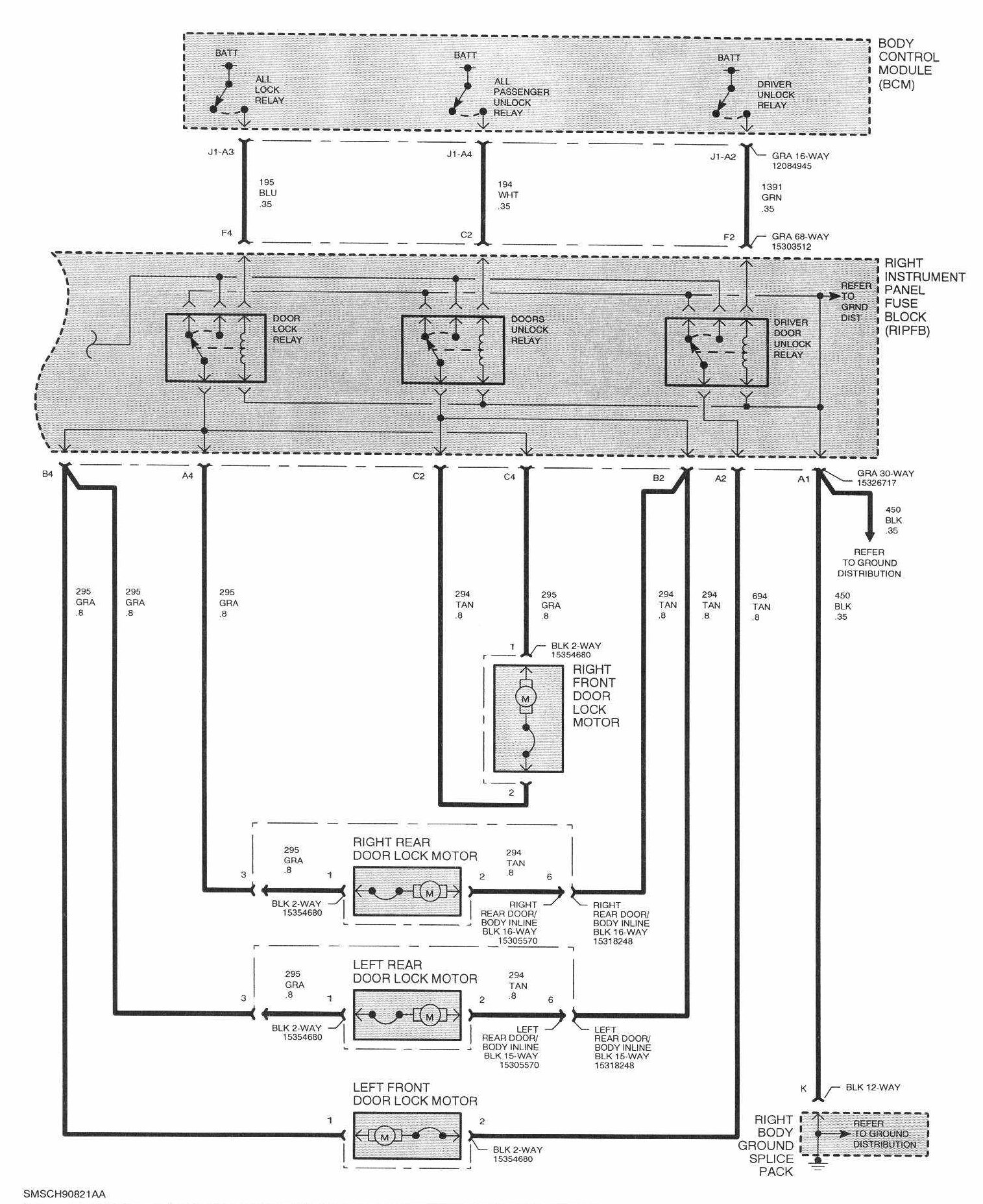

Remote Keyless Entry (RKE)/Security System - Schematics Part 2:
