CIM Installation

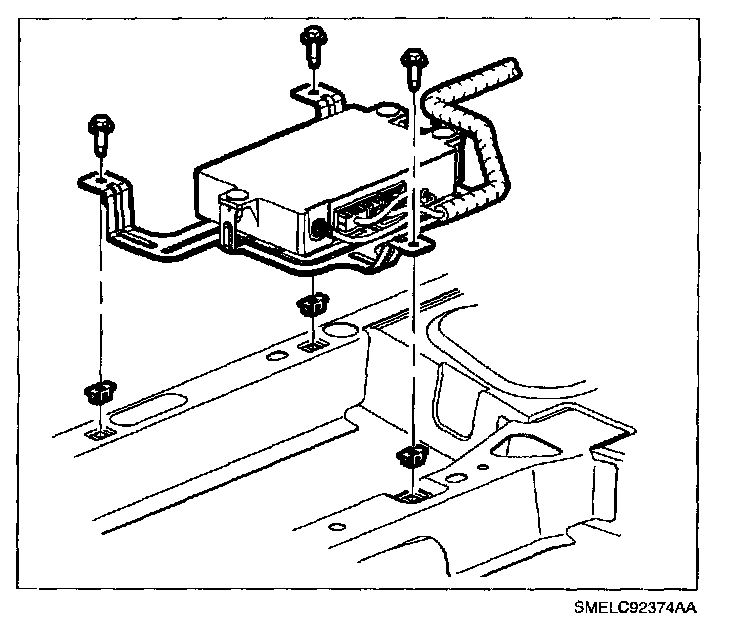

1. Install CIM module.
2. Install three push pins.




3. Connect GPS antenna.




4. Connect the wiring connectors.
5. Connect the cellular antenna.
6. Key on vehicle.
7. Press the OnStar call button.
8. Configure the OnStar CIM. Refer to "OnStar Programming" procedure.
