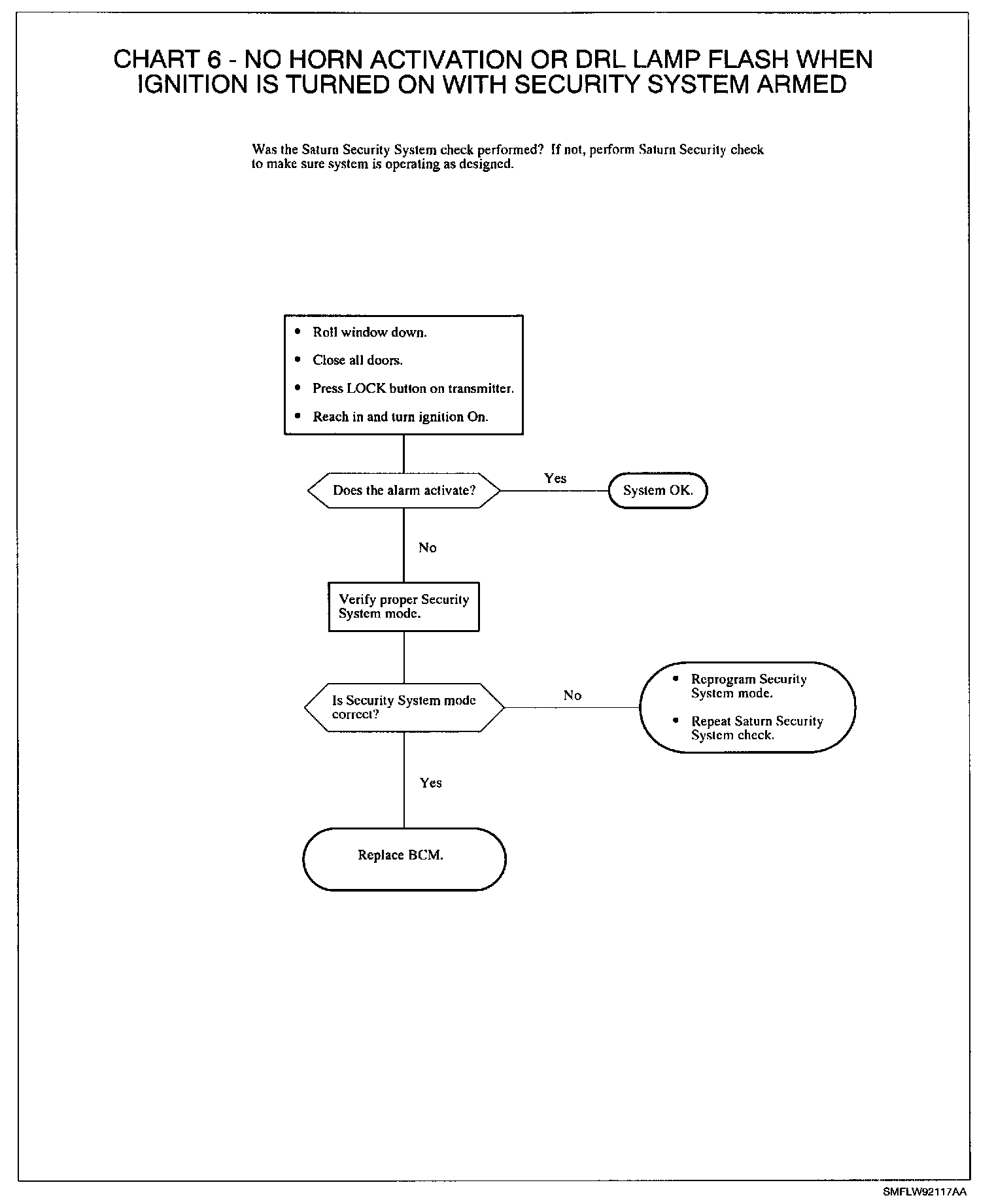

Diagnostic Chart 6:
CHART 6 - NO HORN ACTIVATION OR DRL LAMP FLASH WHEN IGNITION IS TURNED ON WITH SECURITY SYSTEM ARMED
