B2585 - Parklamp Control Circuit Malfunction

Schematic:

CIRCUIT DESCRIPTION
The BCM monitors circuit 74 for parking switch position. In addition the BCM monitors circuit 1080 for proper parklamp relay function. When the BCM is in ALC mode and the solar light sensor indicates a dark condition the BCM will provide ground on circuit 1080, to activate parklamp relay. Feedback from circuit 1080 to BCM will indicate that the relay is energized. If feedback does not change, then fail DTC B2585 as a current code.

DTC PARAMETERS
^ ALC Parklamp relay commanded On or parklamp switch is On.
^ Parklamp feedback is off.
^ Ignition in RUN.
^ Condition is present for 5 seconds.
^ No telltale illumination.

DIAGNOSTIC AIDS
^ Check for poor connection at the BCM. Inspect harness connectors for backed-out terminals, improper terminal mating, broken connector locks, improperly formed or damaged terminals and poor terminal-to-wire connection (terminal crimped over wire insulation and not conductors).
^ Inspect wiring harness for damage. Check for broken or chaffed insulation.
^ If fault is suspected to be intermittent, wiggling harness wiring may help in locating fault.

TEST

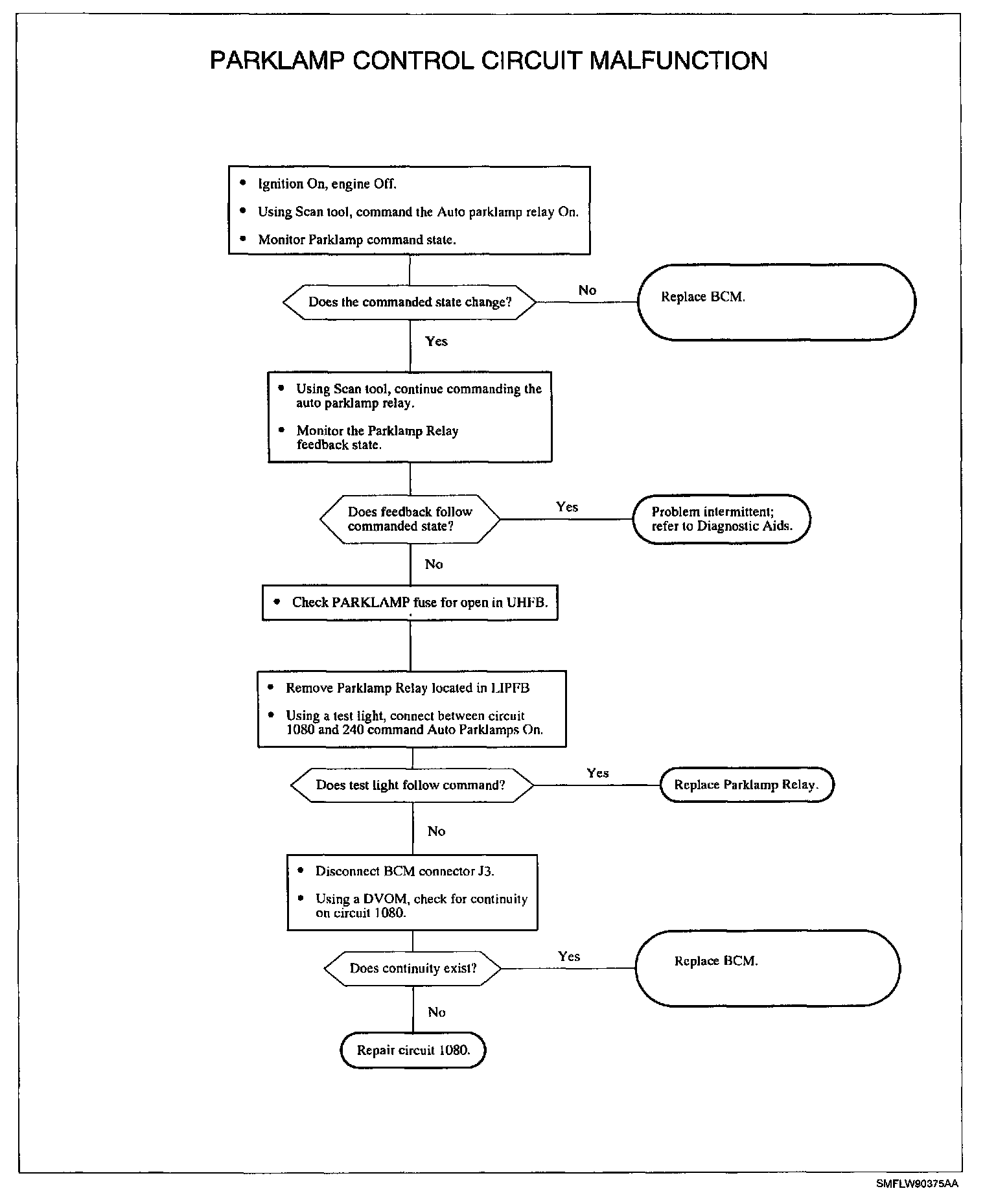

Diagnostic Chart:
