42. Checkballs Installation

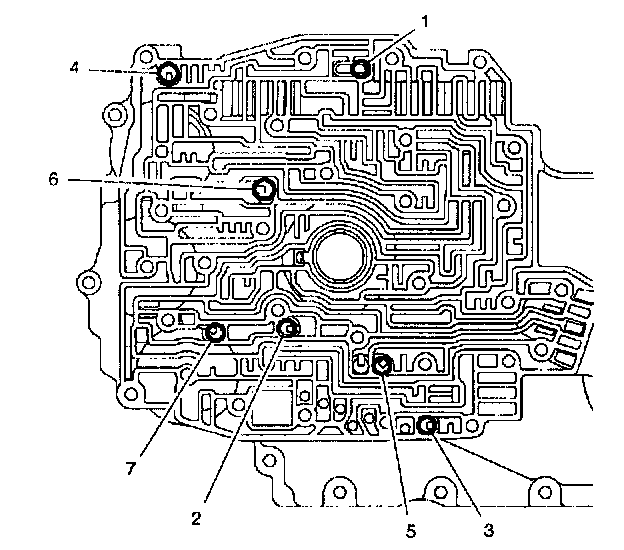

CHECKBALLS INSTALLATION





Install checkballs into proper locations on channel plate.
