3. Drive Sprocket Support Installation

DRIVE SPROCKET SUPPORT INSTALLATION

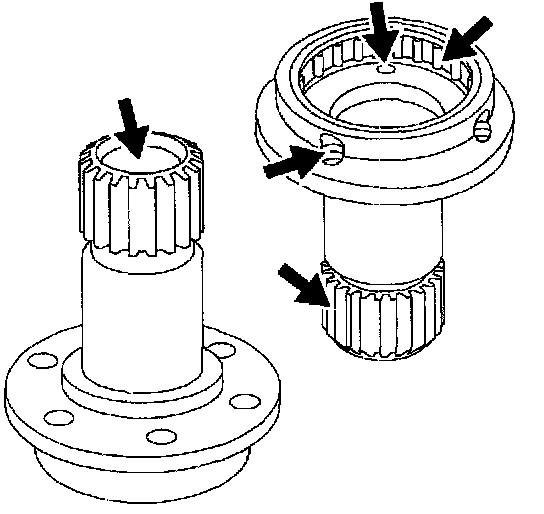

1. Inspect drive sprocket support for damage to stator shaft splines, journals, bushings, and roller bearing.
2. Inspect converter seal drain holes for blockage.





3. Lubricate drive sprocket support bearing with petroleum jelly.

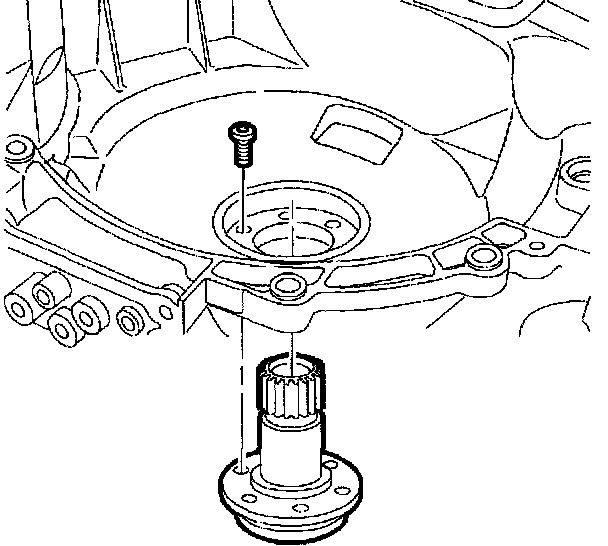

4. Install drive sprocket support into boil housing of transaxle case.
5. Install drive sprocket support bolts into drive sprocket support.
6. Hand start bolts then tighten.
Torque:
Drive Sprocket Support Bolts: 12 Nm (9 ft. lbs.)
