17. Low/Reverse Band Installation

LOW/REVERSE BAND INSTALLATION

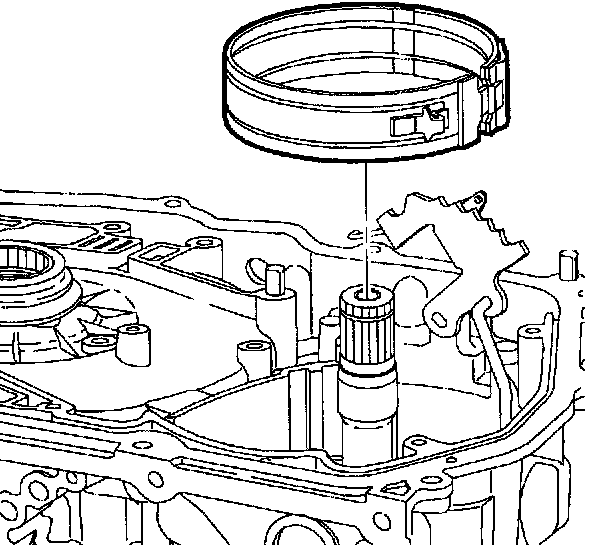

Install low/reverse band into transaxle case. Align servo pin apply surface toward bottom pan and hook band into band anchor pin inside transaxle case.
