Maxifuse/Minifuse Feeds

Maxifuse/Minifuse Feeds:

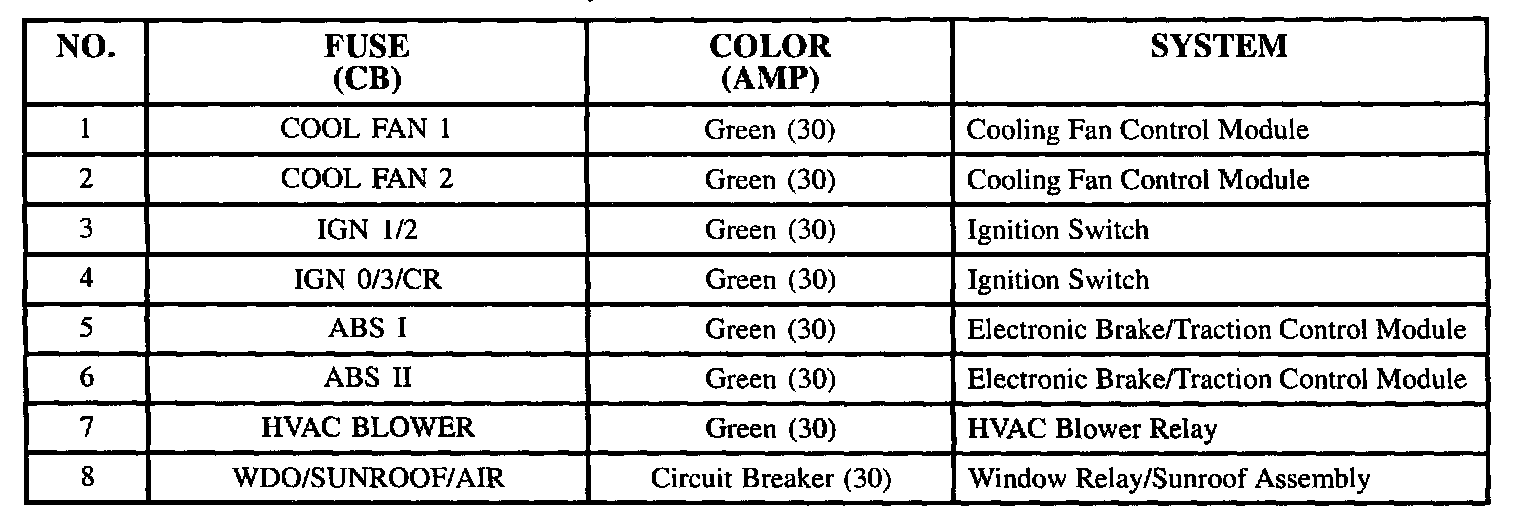

The chart lists the minifuses located in the underhood fuse block, and the circuits they feed
