Home >> Saturn >> 2003 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Thread Repair Specifications

Thread Repair Specifications

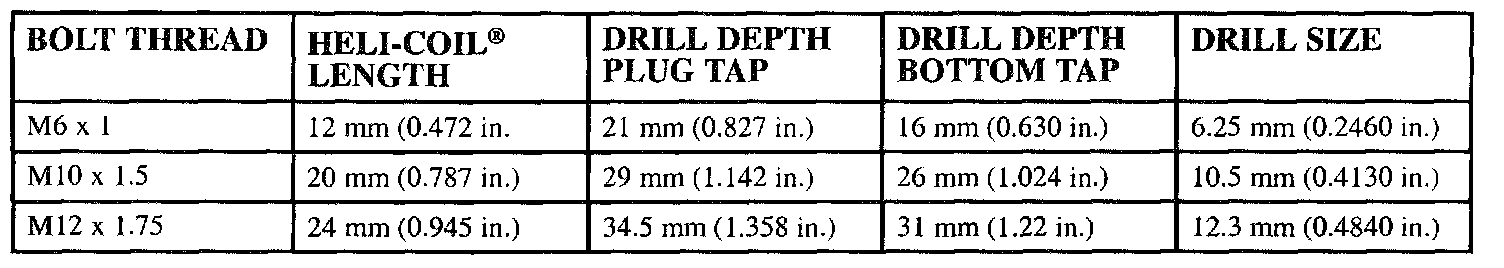

Heli-Coil Specification Chart

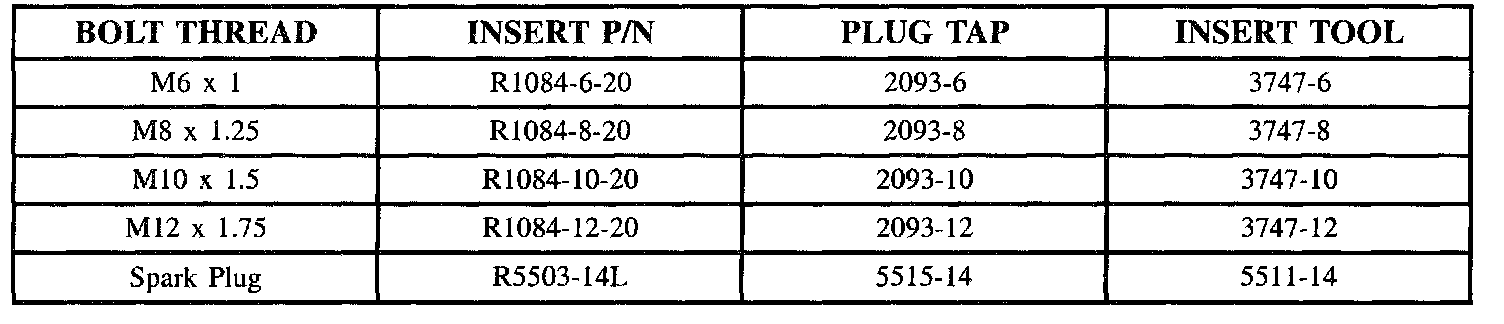

Heli-Coil Tool Numbers Chart
