System Specifications

SPECIFICATIONS

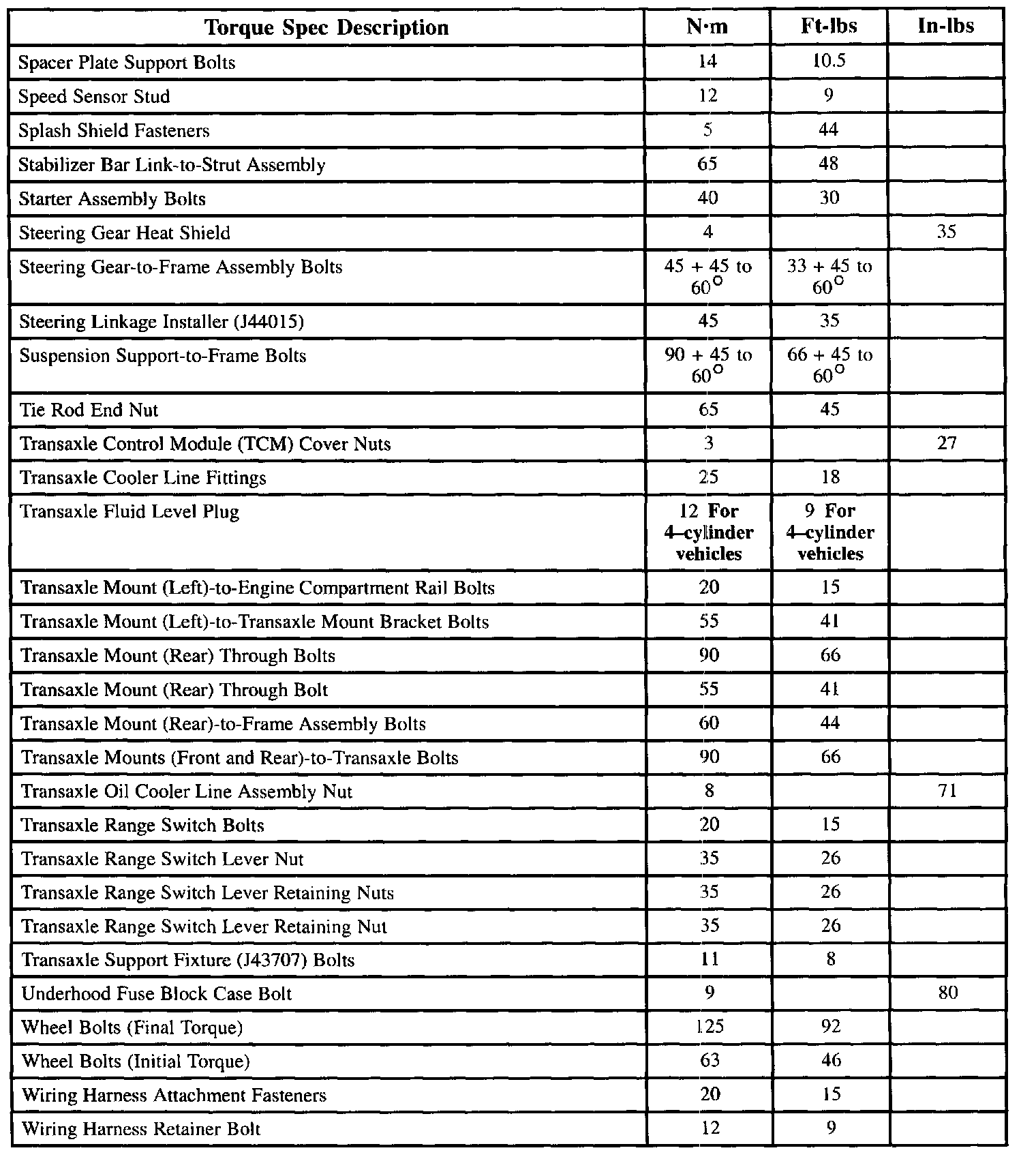

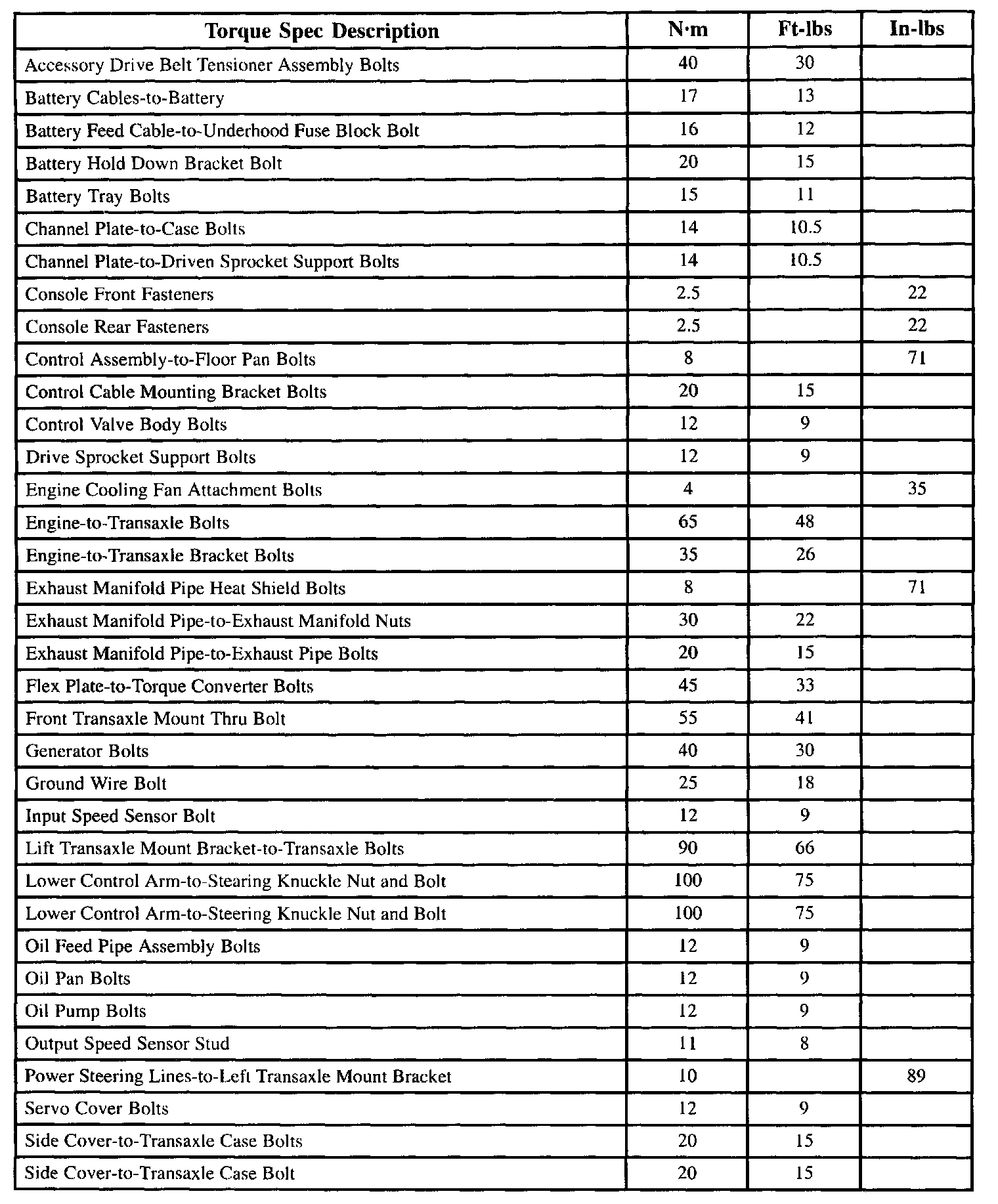

AUTOMATIC TRANSAXLE TORQUE SPECIFICATIONS

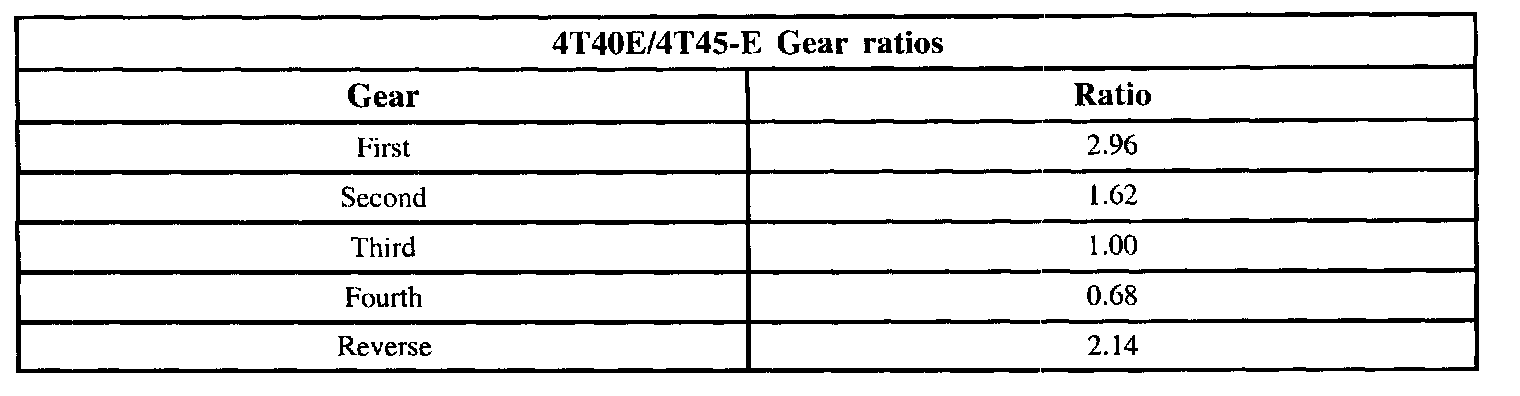

GEAR RATIOS

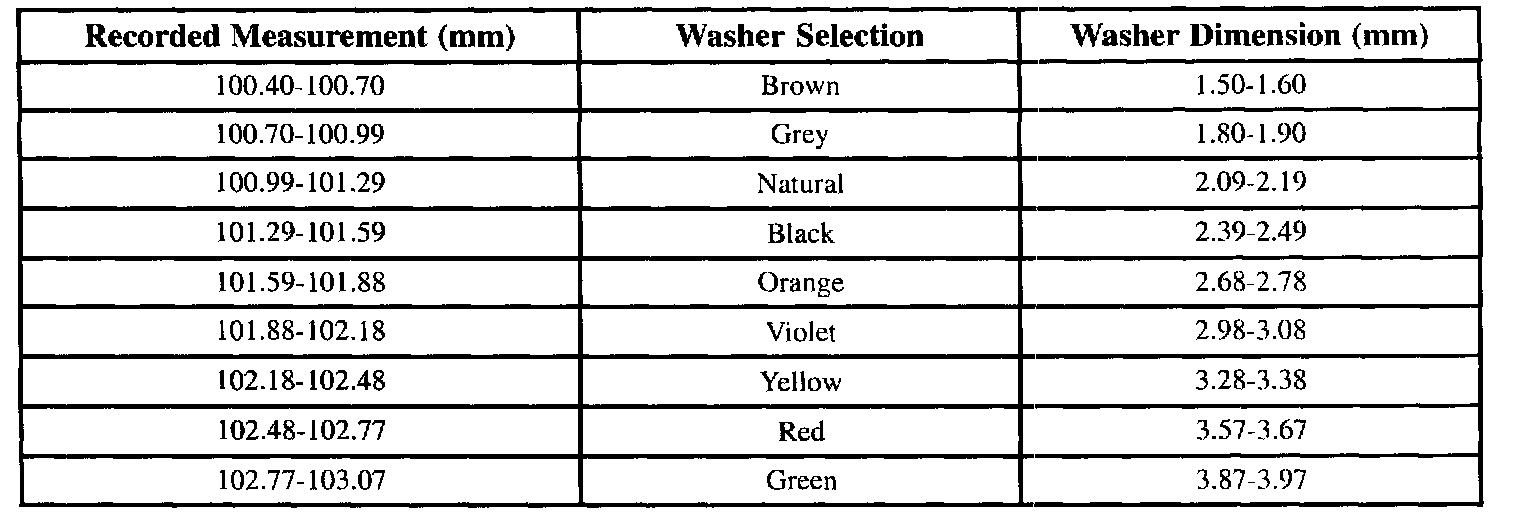

END PLAY SPECIFICATION CHART

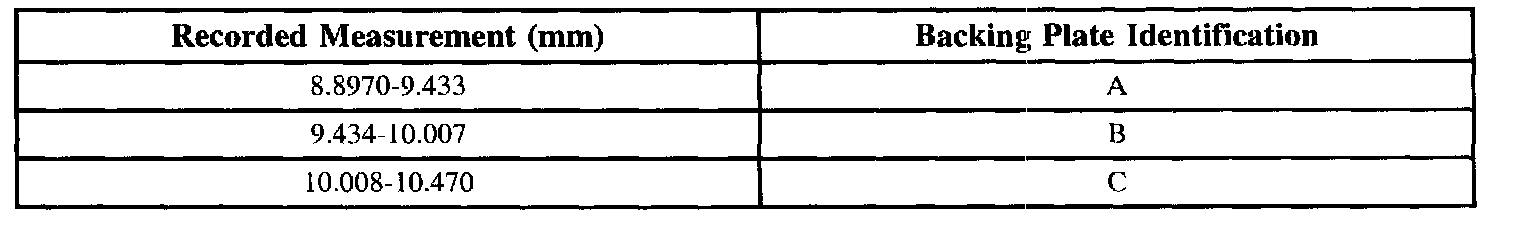

REVERSE CLUTCH BACKING PLATE SPECIFICATION





RANGE REFERENCE CHART

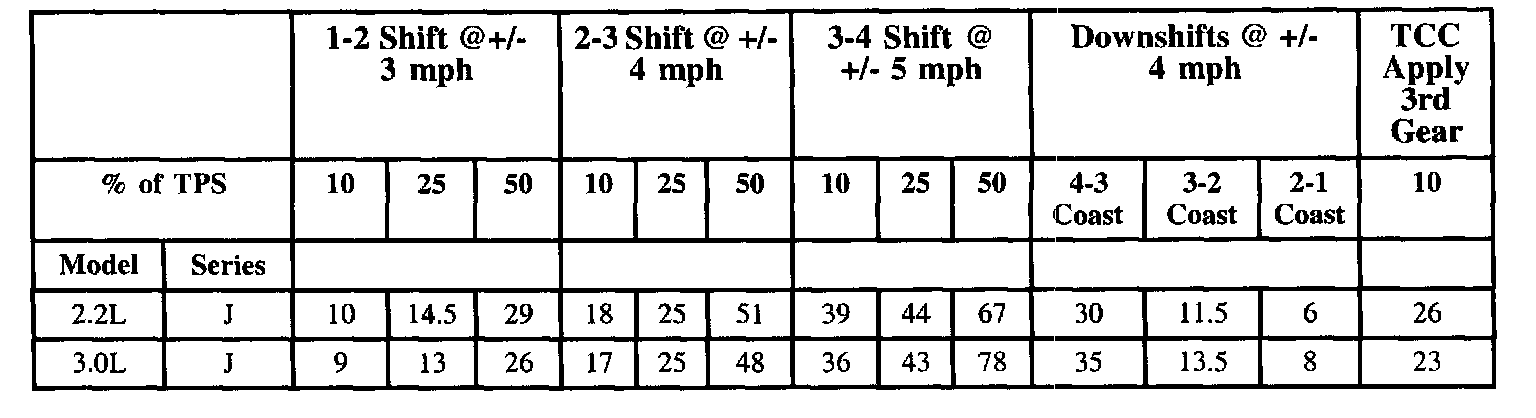

SHIFT SPEED CHART
