Brake Switch (Cruise Control): Diagrams

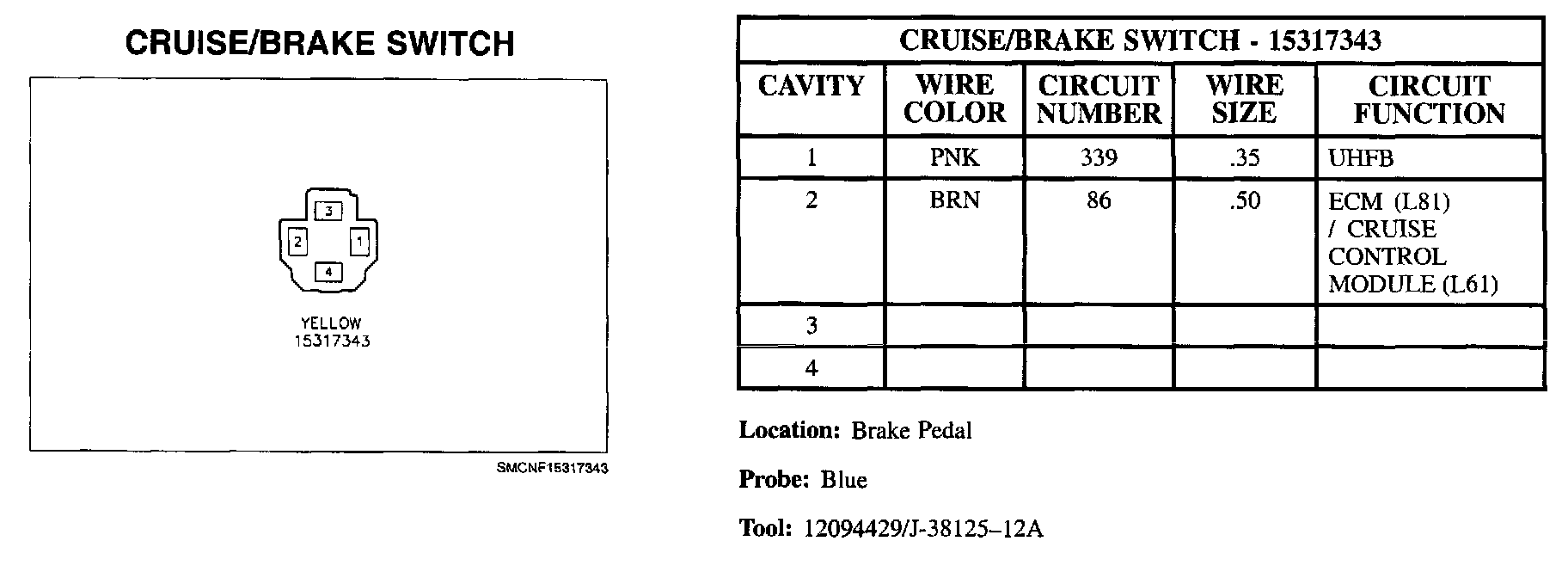

Cruise/Brake Switch:

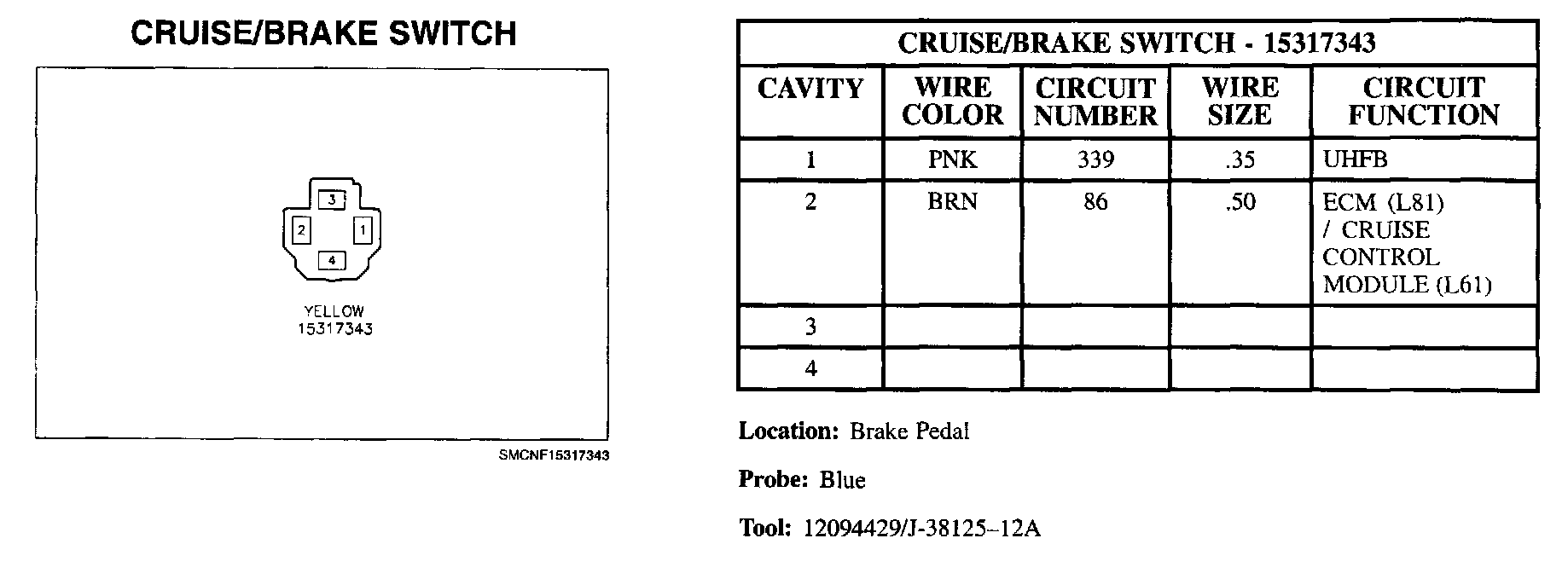

Cruise/Brake Switch:

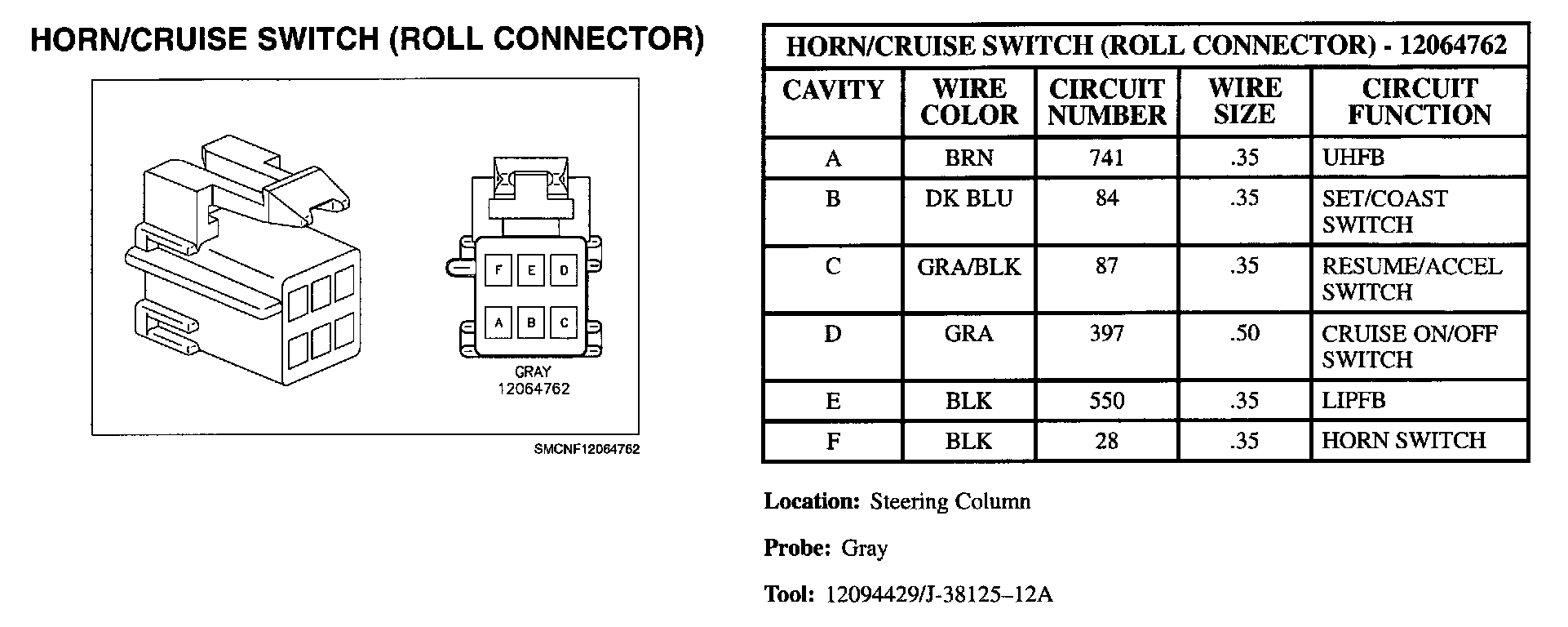

Horn/Cruise Switch (Roll Connector):
