EGR Control Solenoid: Service and Repair

EXHAUST GAS RECIRCULATION VALVE SOLENOID

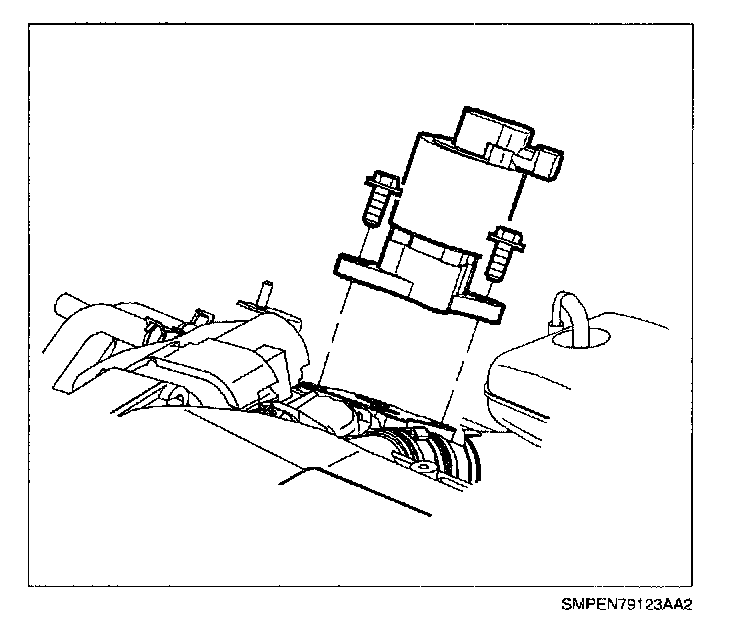

REMOVAL




1. Disconnect exhaust gas recirculation (EGR) valve.
2. Remove EGR bolts.
3. Remove EGR valve.

INSTALLATION




1. Install new gasket.
2. Install EGR valve.
3. Install EGR valve bolts.

Torque:
EGR Valve Bolts: 20 N.m (15 ft-lbs)

4. Connect EGR valve electrical connector.
