Air Recirculation Malfunction



Air Recirculation Malfunction

Test Description

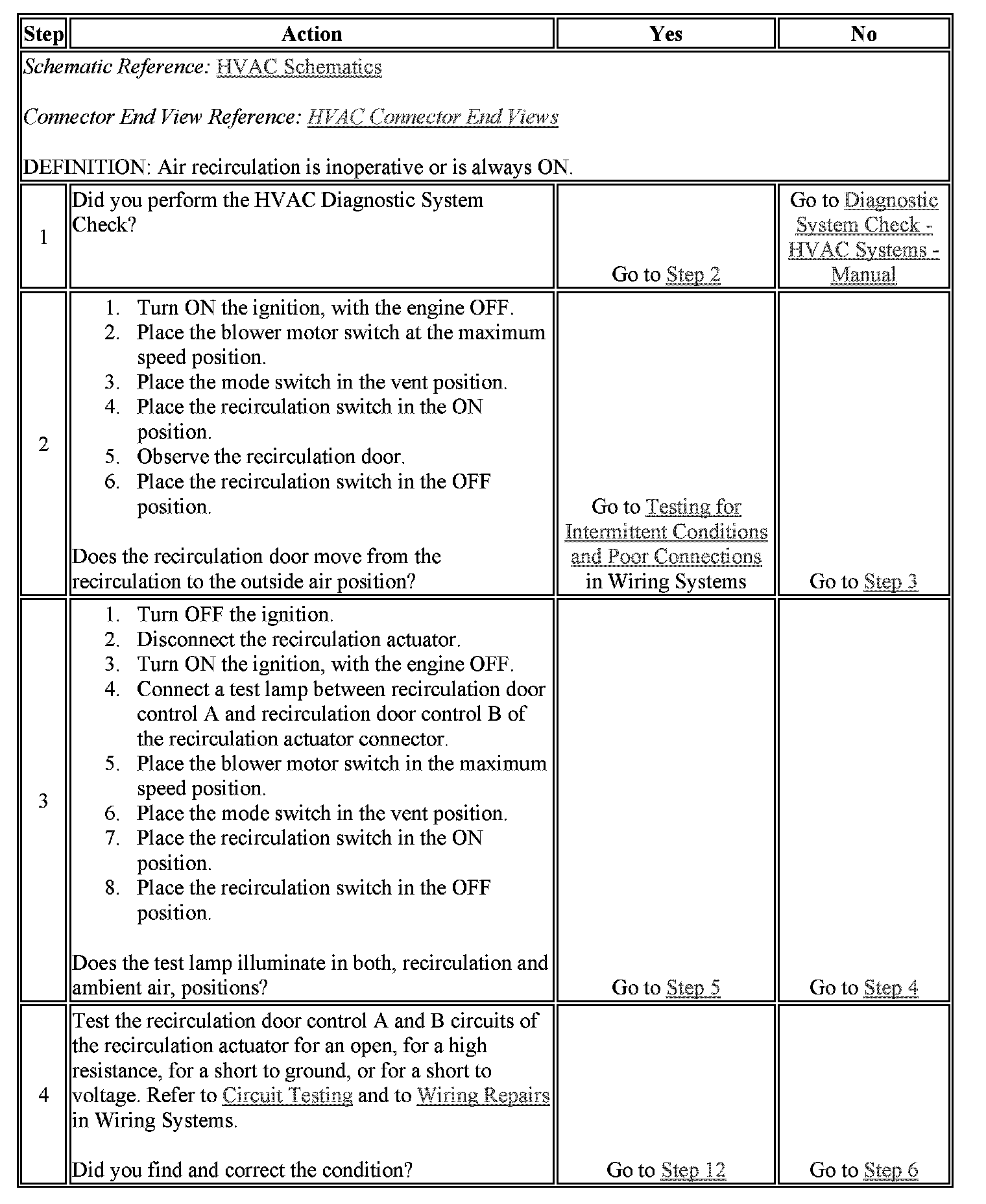

The number below refers to the step number on the diagnostic table.

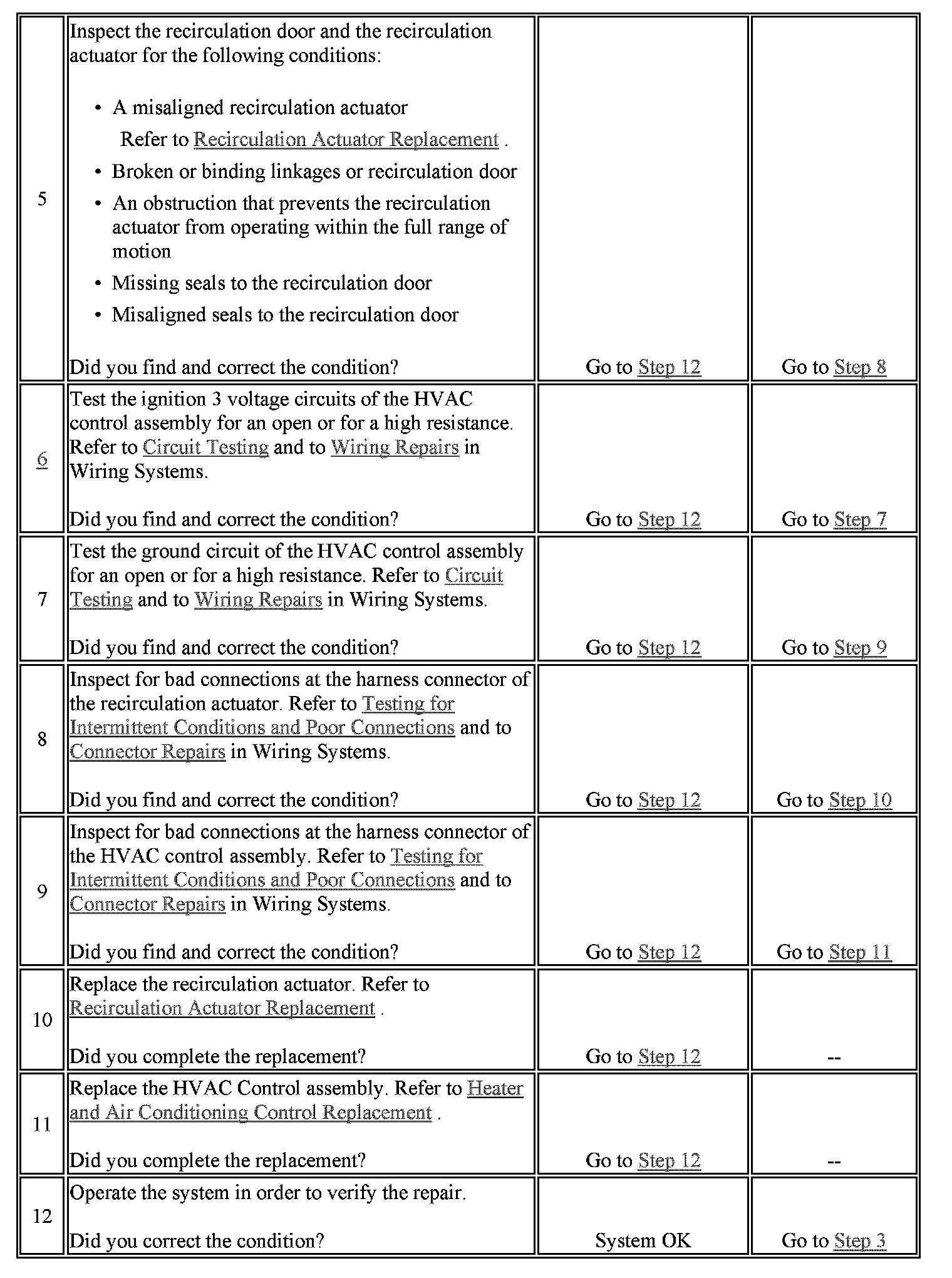

6. The HVAC control assembly is supplied by 2 ignition-3 voltage circuits. Test both ignition-3 voltage circuits.
