Home >> Saturn >> 2003 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> HVAC Module - Standard HVAC - Component Locations

HVAC Module - Standard HVAC - Component Locations

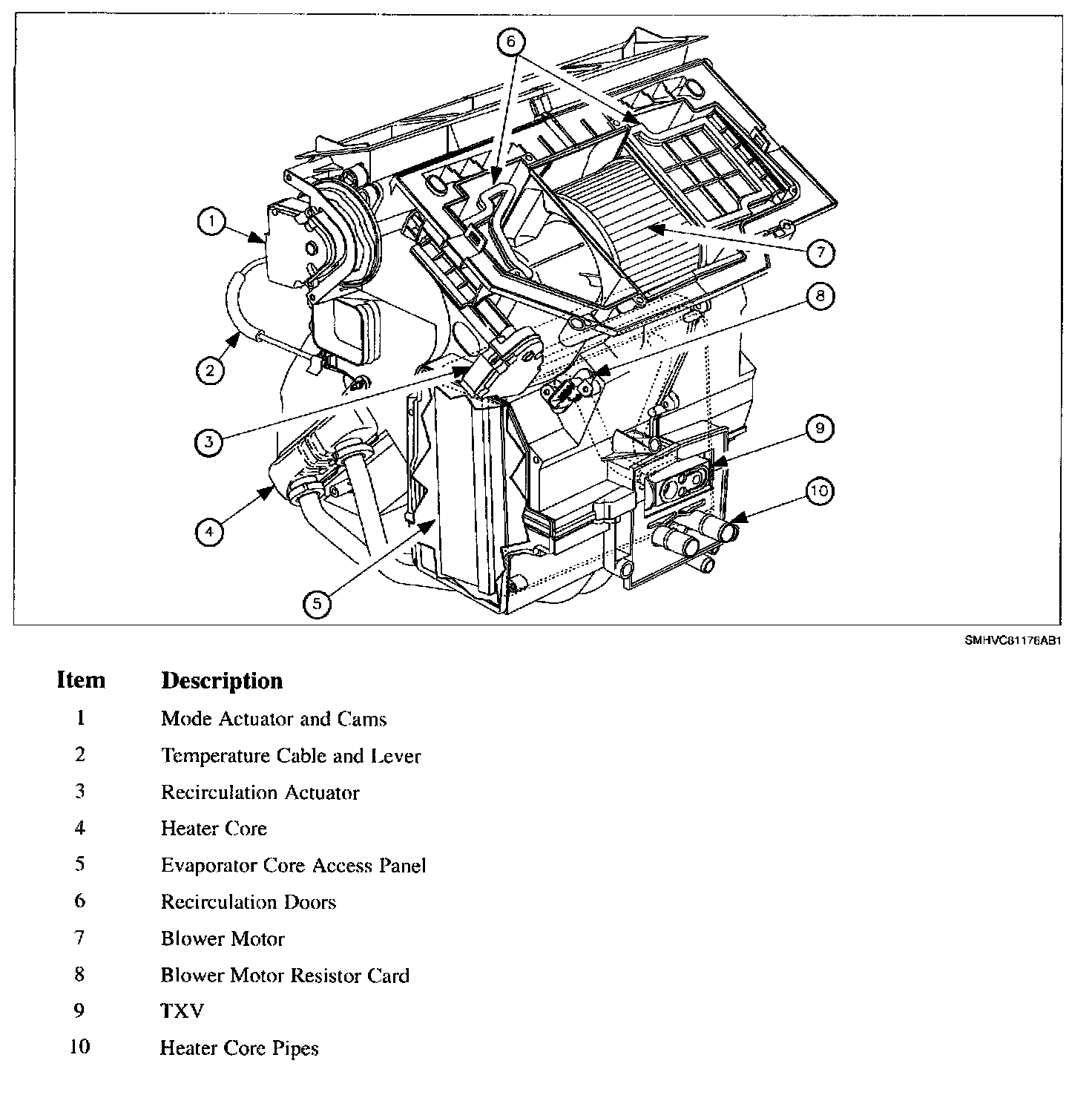

Locations View (HVAC Module - Standard HVAC):
