HVAC Module - Automatic Climate Control - Component Locations

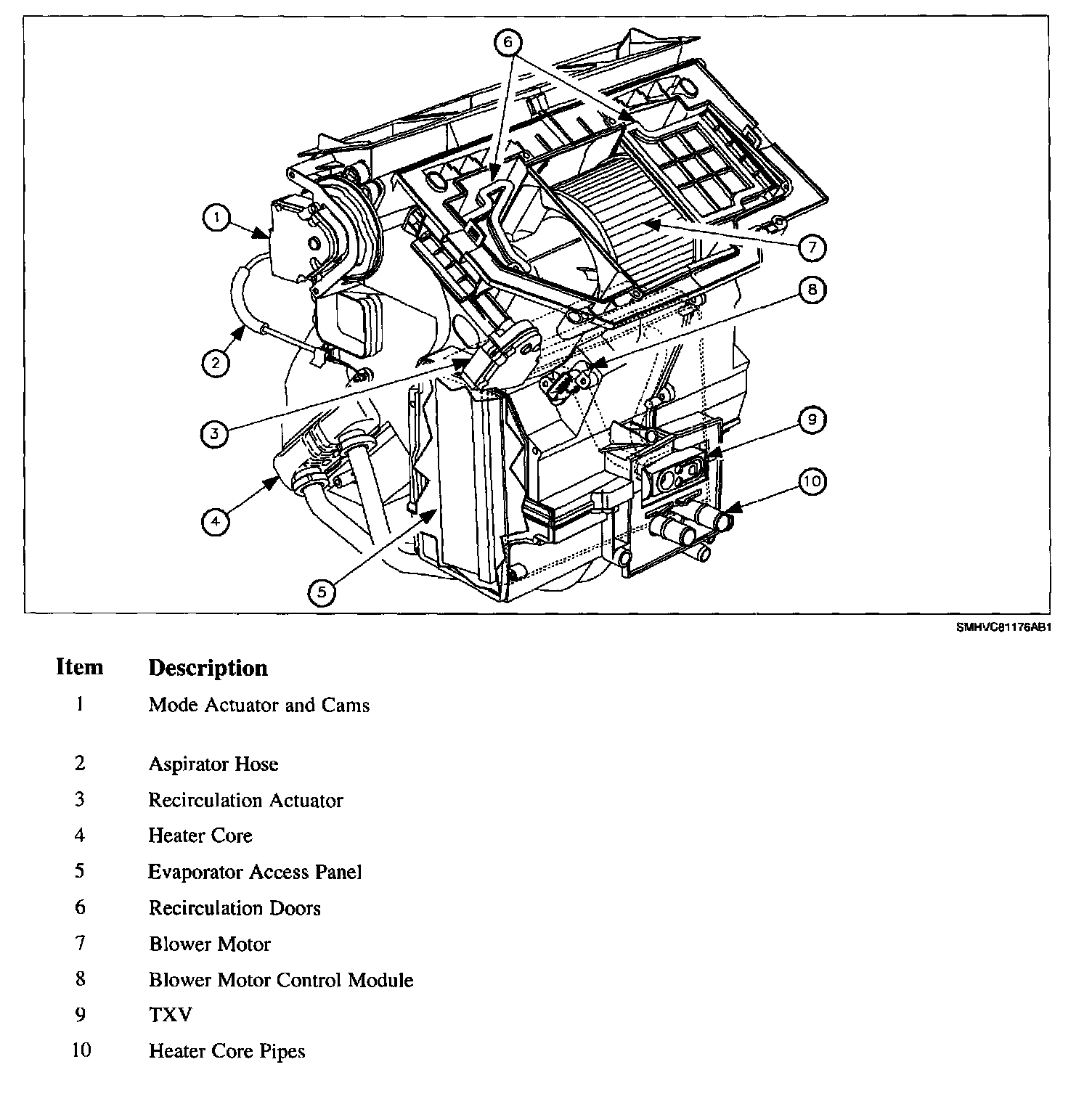

Locations View (HVAC Module -Standard HVAC):
