Removal and Replacement

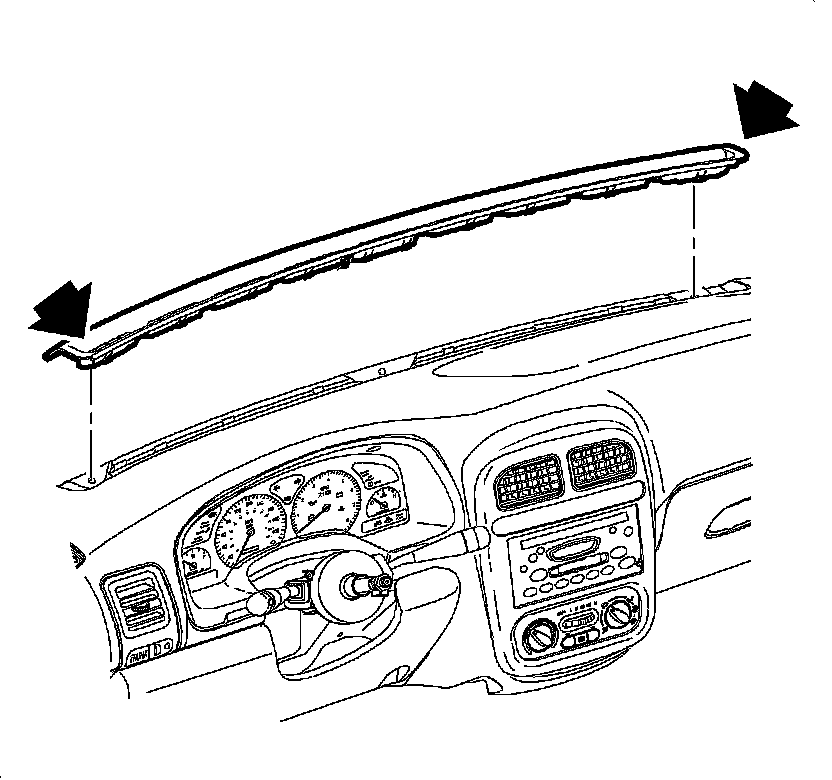

Defroster Grille Replacement

Removal Procedure




1. Using a flat-bladed tool, pry the grille away from the I/P.
2. Remove the defroster grille.

Installation Procedure




1. Insert the defroster grille into the opening.
2. Press the grille until all of the clips are fully seated.
