System Diagram

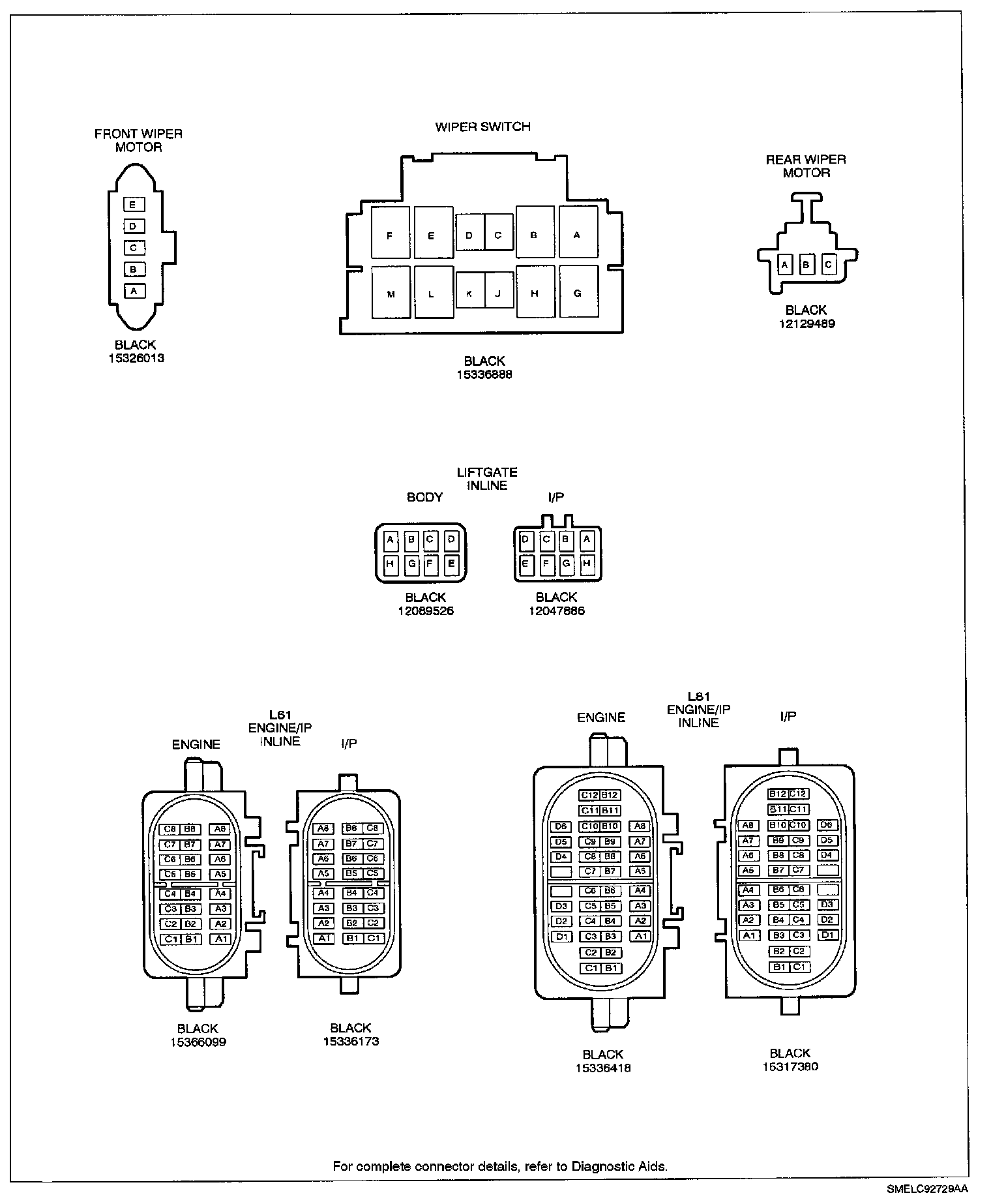

Wiper/Washer Connector Face Views Part 1:



Wiper/Washer Connector Face Views Part 2:
