System Diagram

Decklid/Liftgate Release (Sedan/Wagon) Connector Face Views:

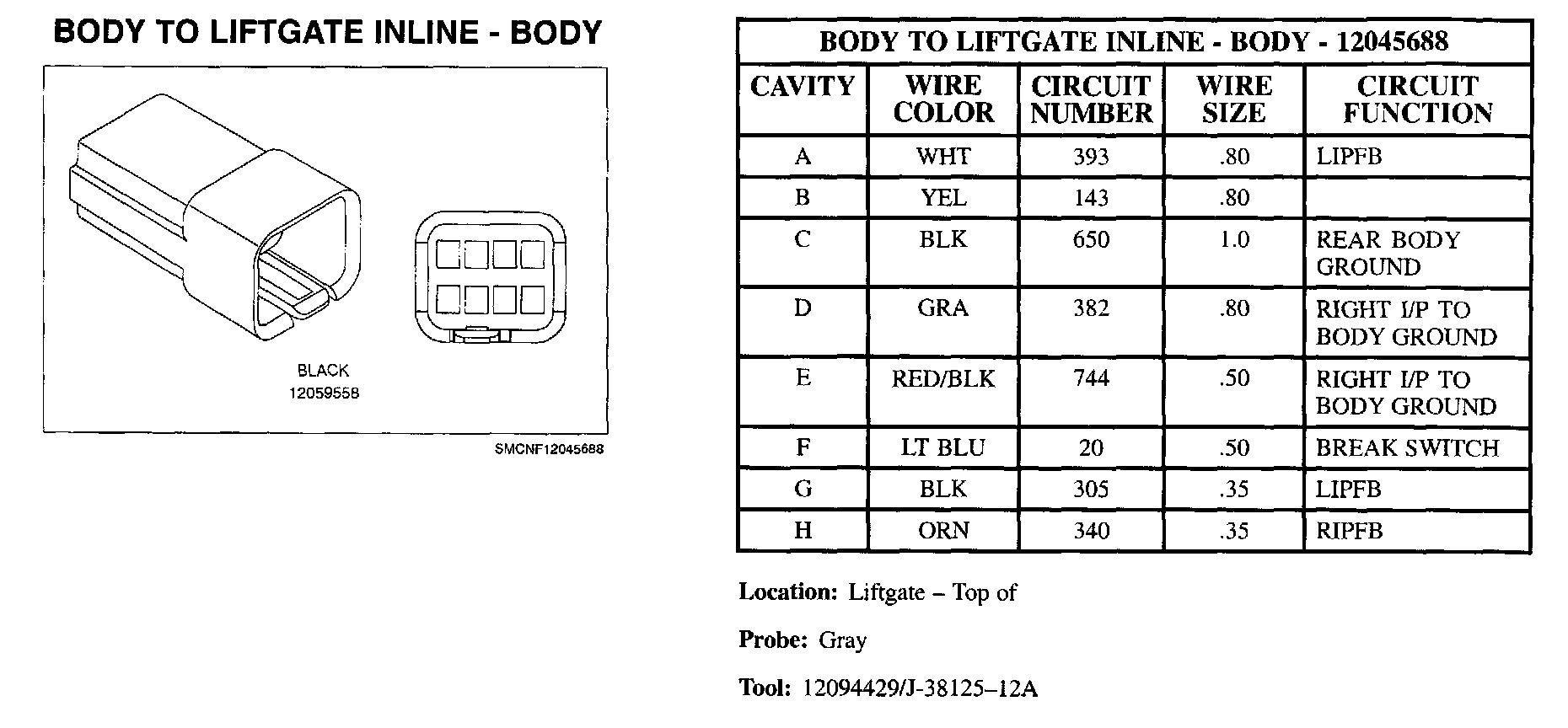

Body To Liftgate Inline - Body:



Body To Liftgate Inline - Liftgate:
