Home >> Saturn >> 2003 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Fuse Block >> I/P Fuse Block - Left - I/P

I/P Fuse Block - Left - I/P

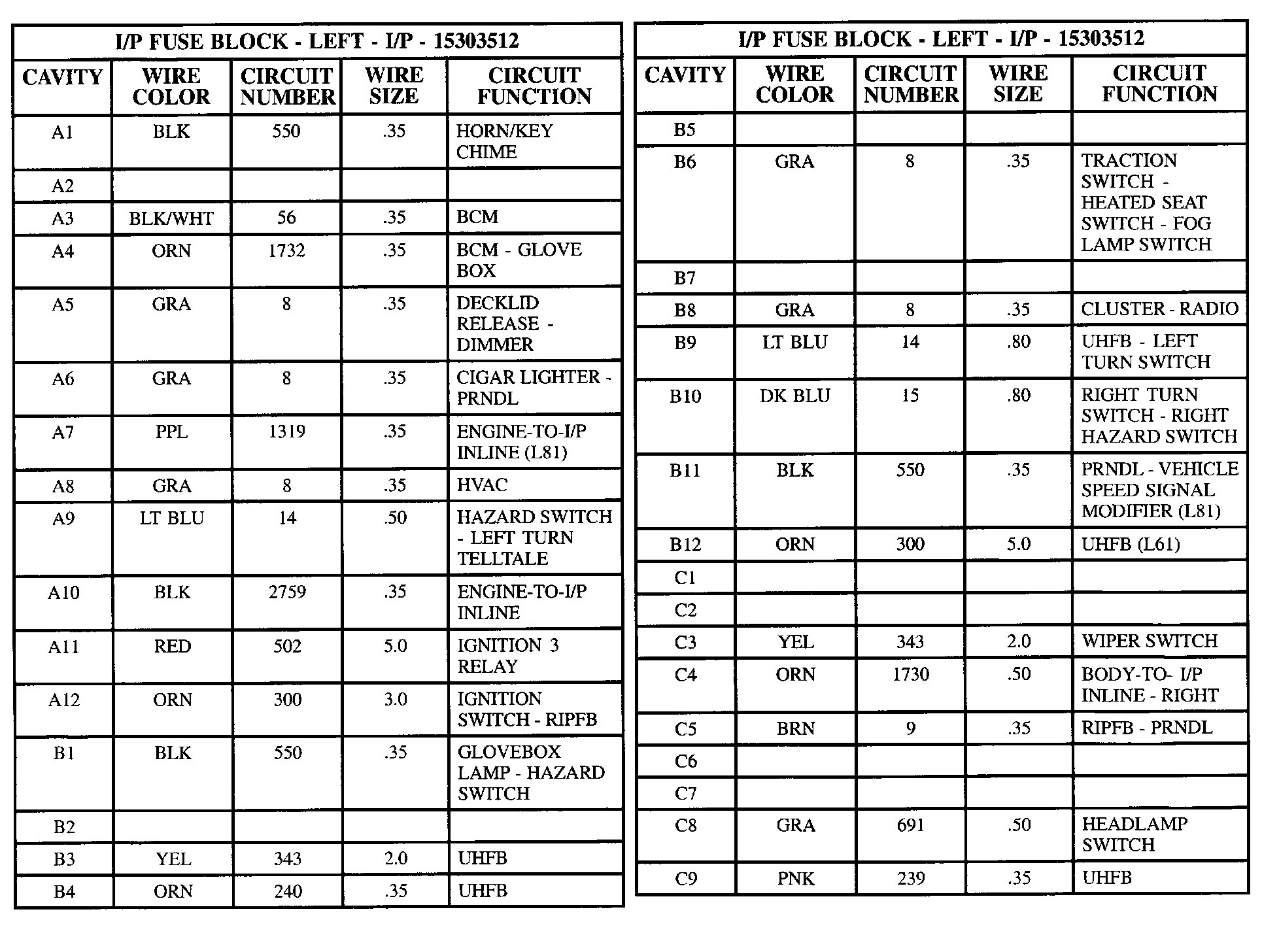

I/P Fuse Block - Left - I/P Part 1:

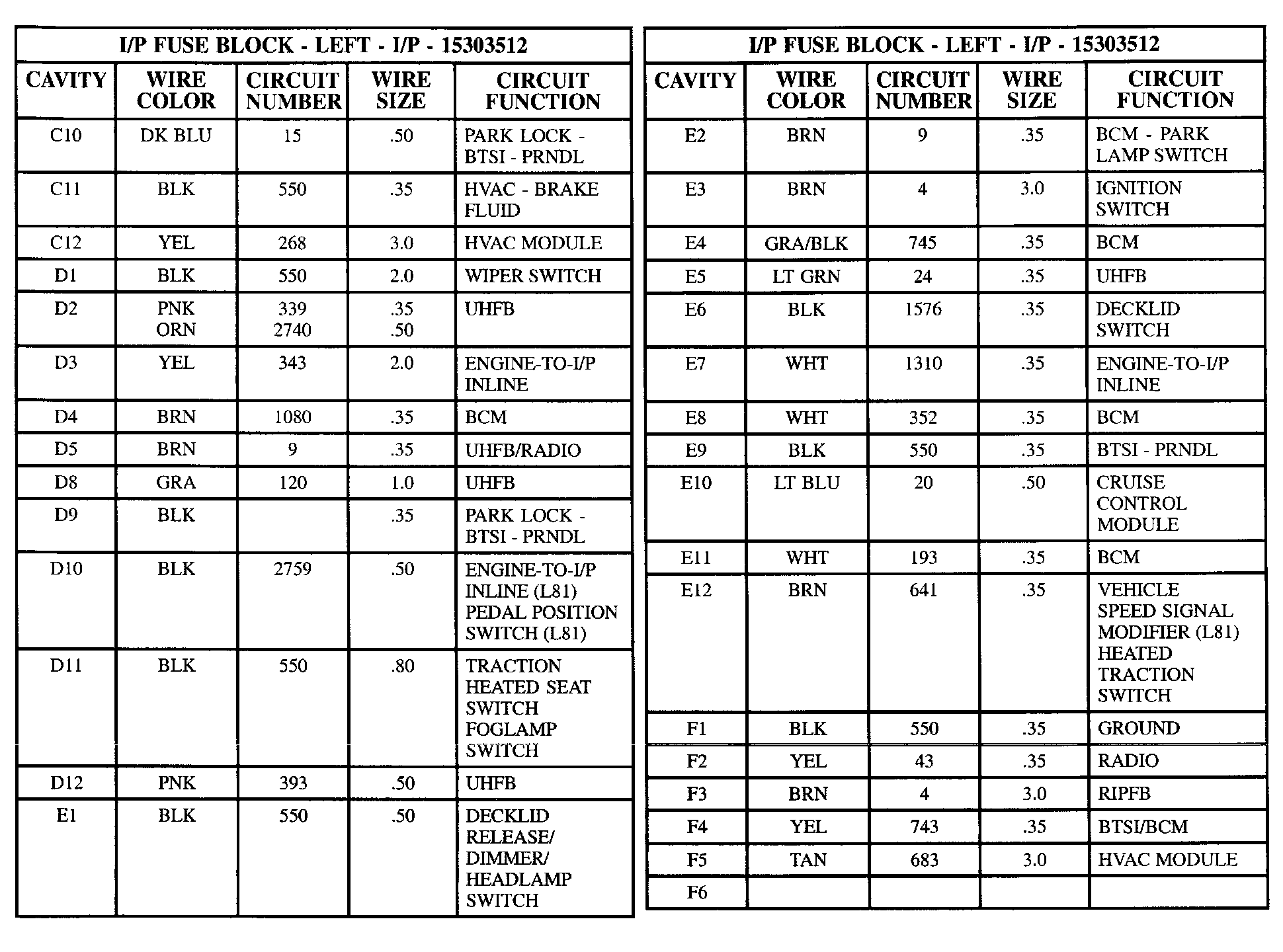

I/P Fuse Block - Left - I/P Part 2:

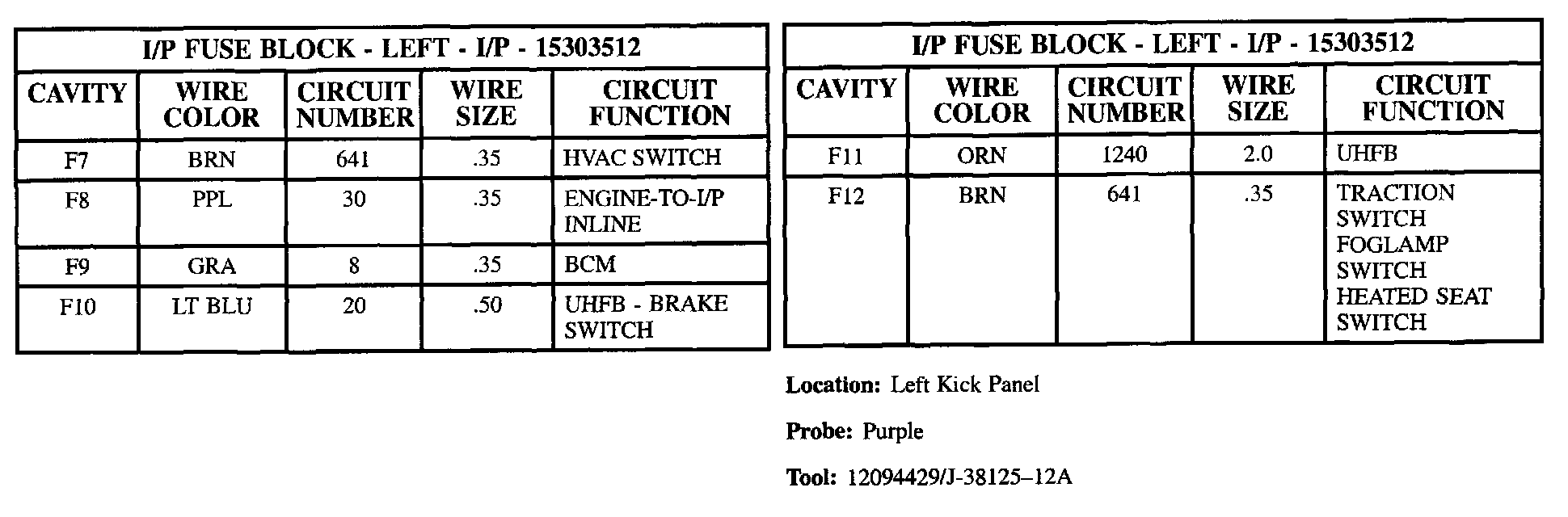

I/P Fuse Block - Left - I/P Part 3:

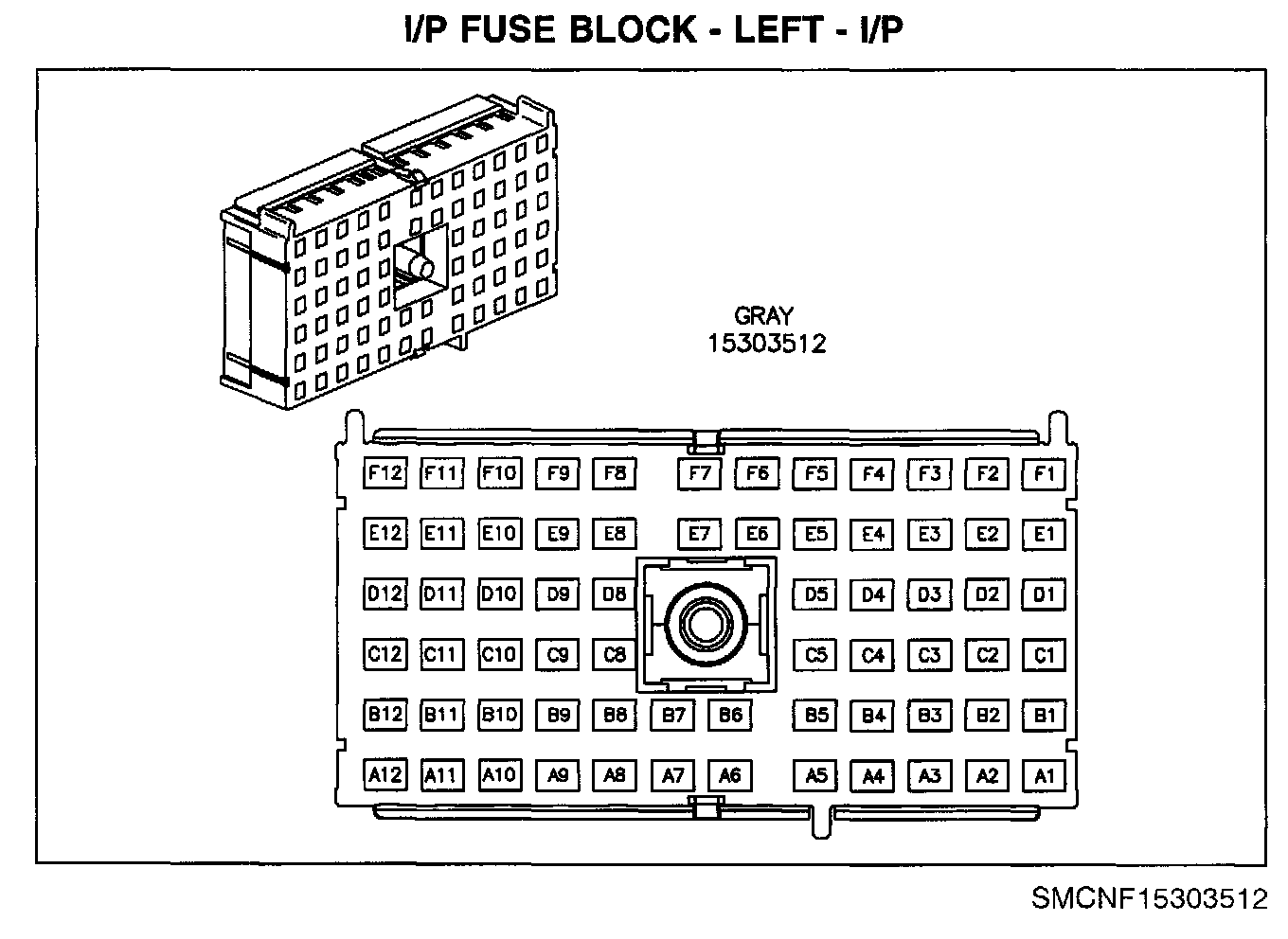

I/P Fuse Block - Left - I/P Part 4:
