Home >> Saturn >> 2003 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Courtesy Lamp >> System Diagram >> Body To Courtesy Lamp - Right - Body Side

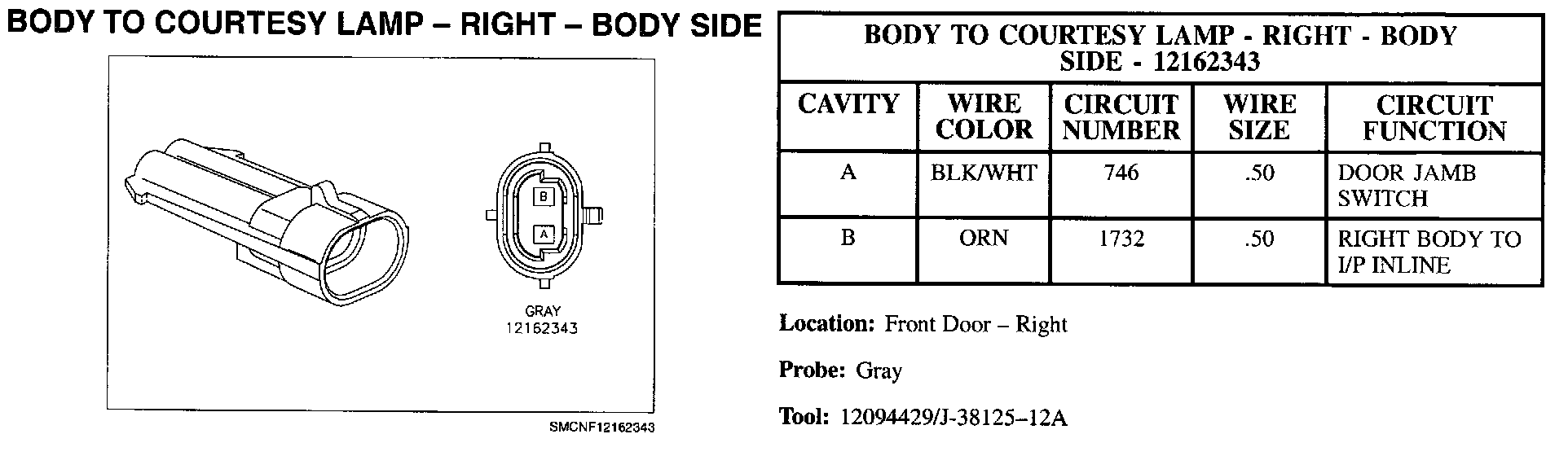

Body To Courtesy Lamp - Right - Body Side

Body To Courtesy Lamp - Right - Body Side:
