Stop/Tail/Back-Up Turn/Marker Lamp - Left
Stop/Tail/Back-Up Turn/Marker Lamp - Left

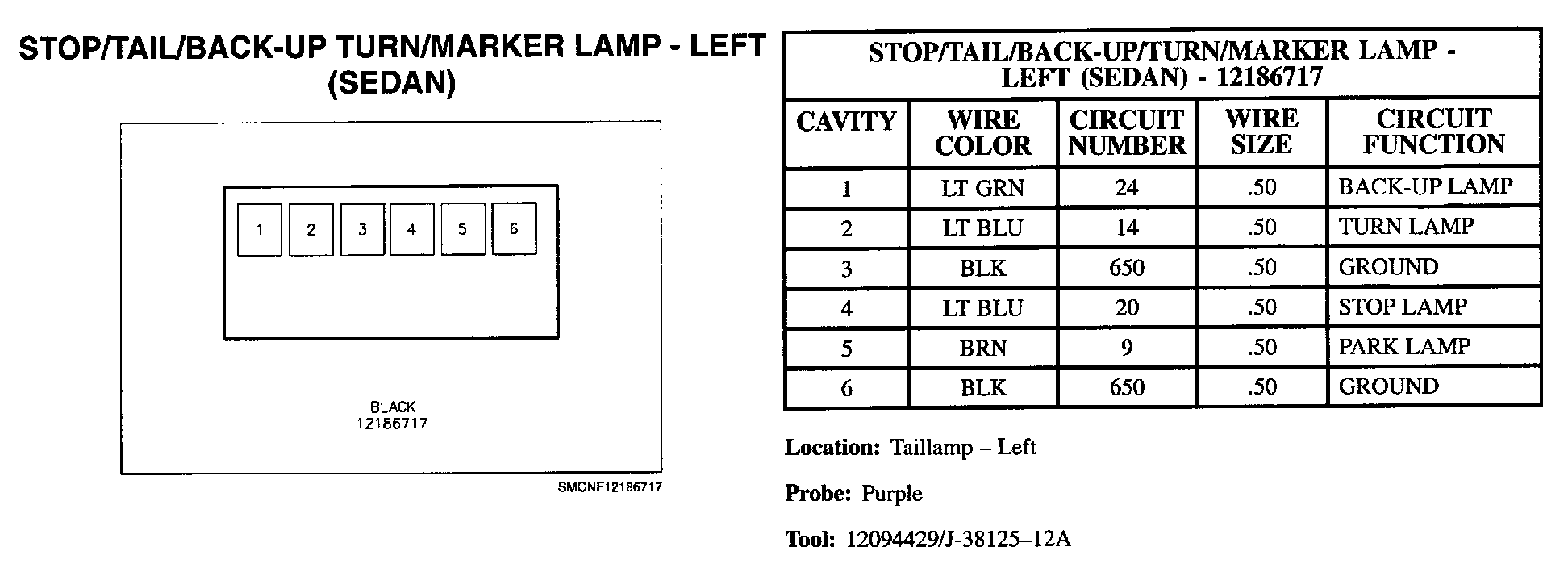

Stop/Tail/Back-up Turn/Marker Lamp - Left (Sedan):

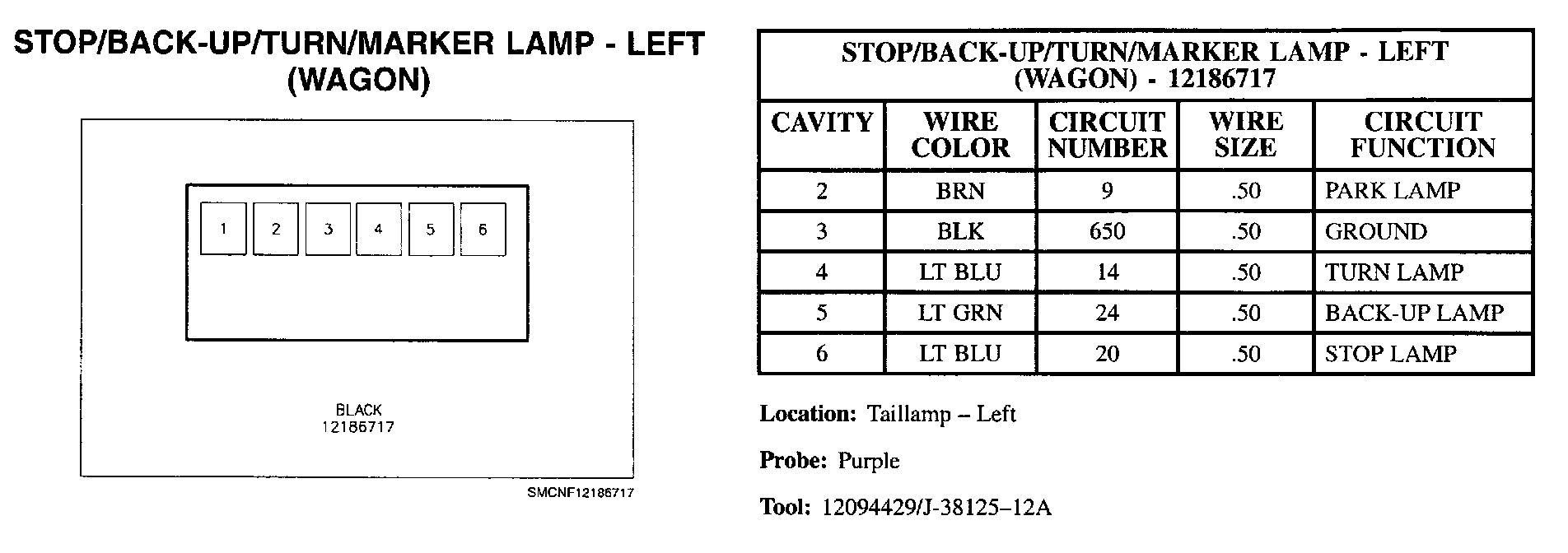

Stop/Back-Up/Turn/Marker Lamp - Left (Wagon):
