Home >> Saturn >> 2003 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> System Diagram >> HVAC Jumper to Temperature Actuator

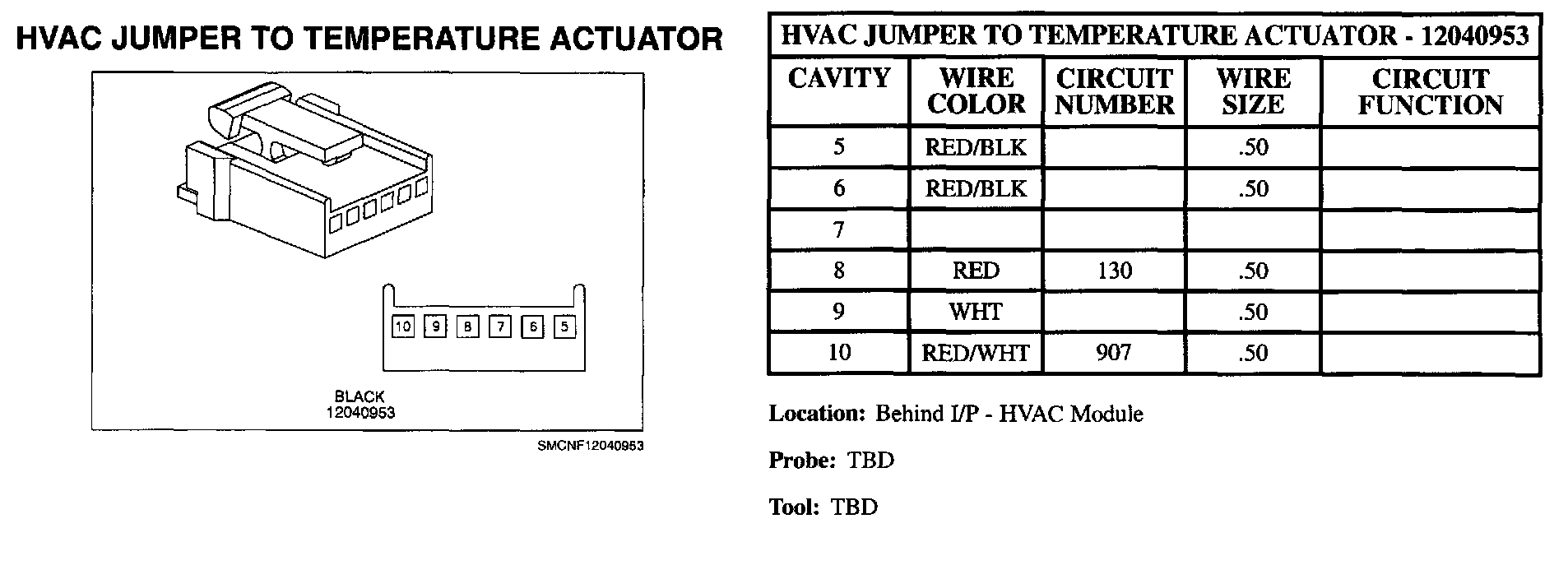

HVAC Jumper to Temperature Actuator

HVAC Jumper To Temperature Actuator:
