Home >> Saturn >> 2003 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Component Name >> I/P to Body Inline I/P

I/P to Body Inline I/P

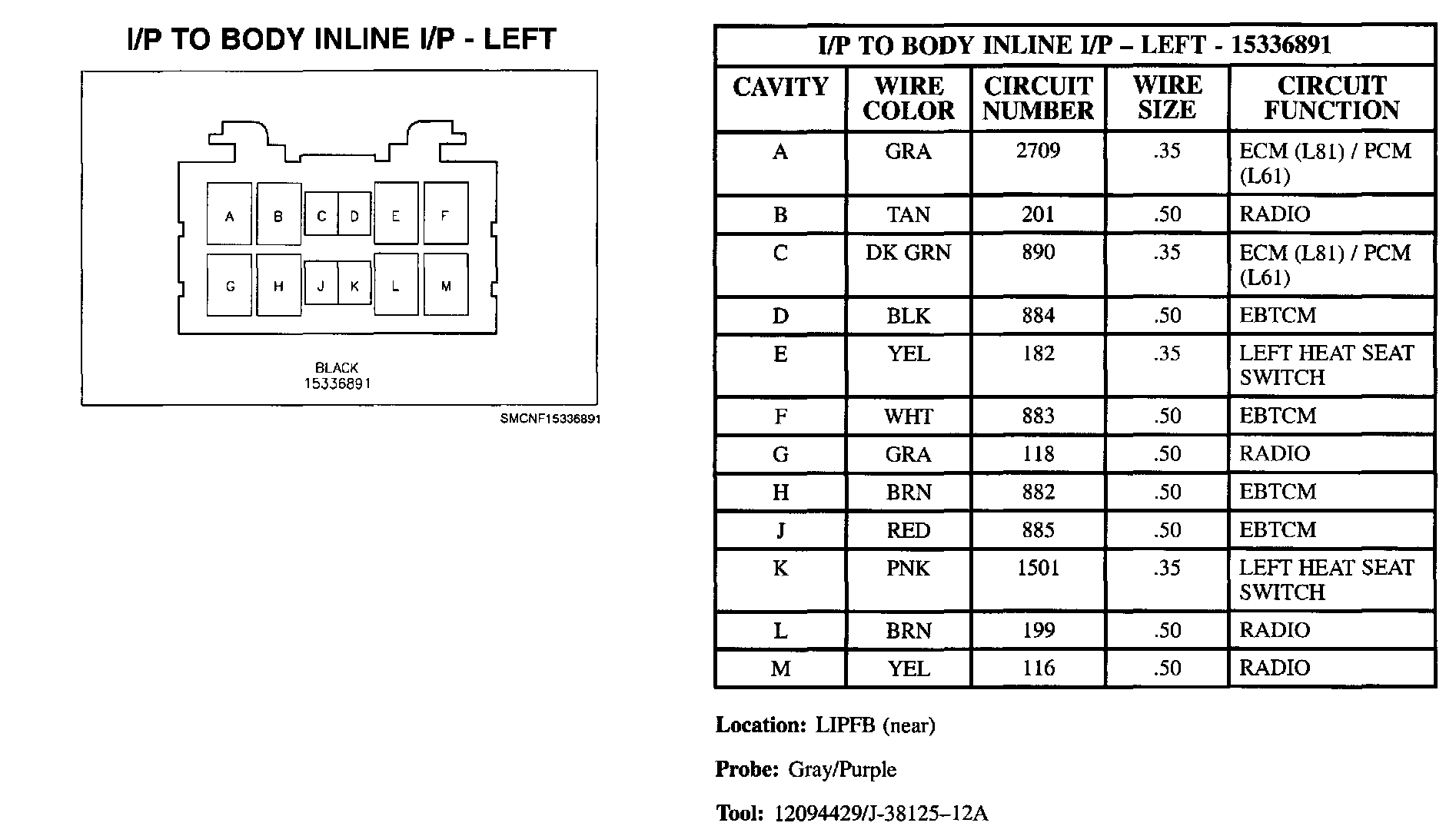

I/P To Body Inline I/P - Left:

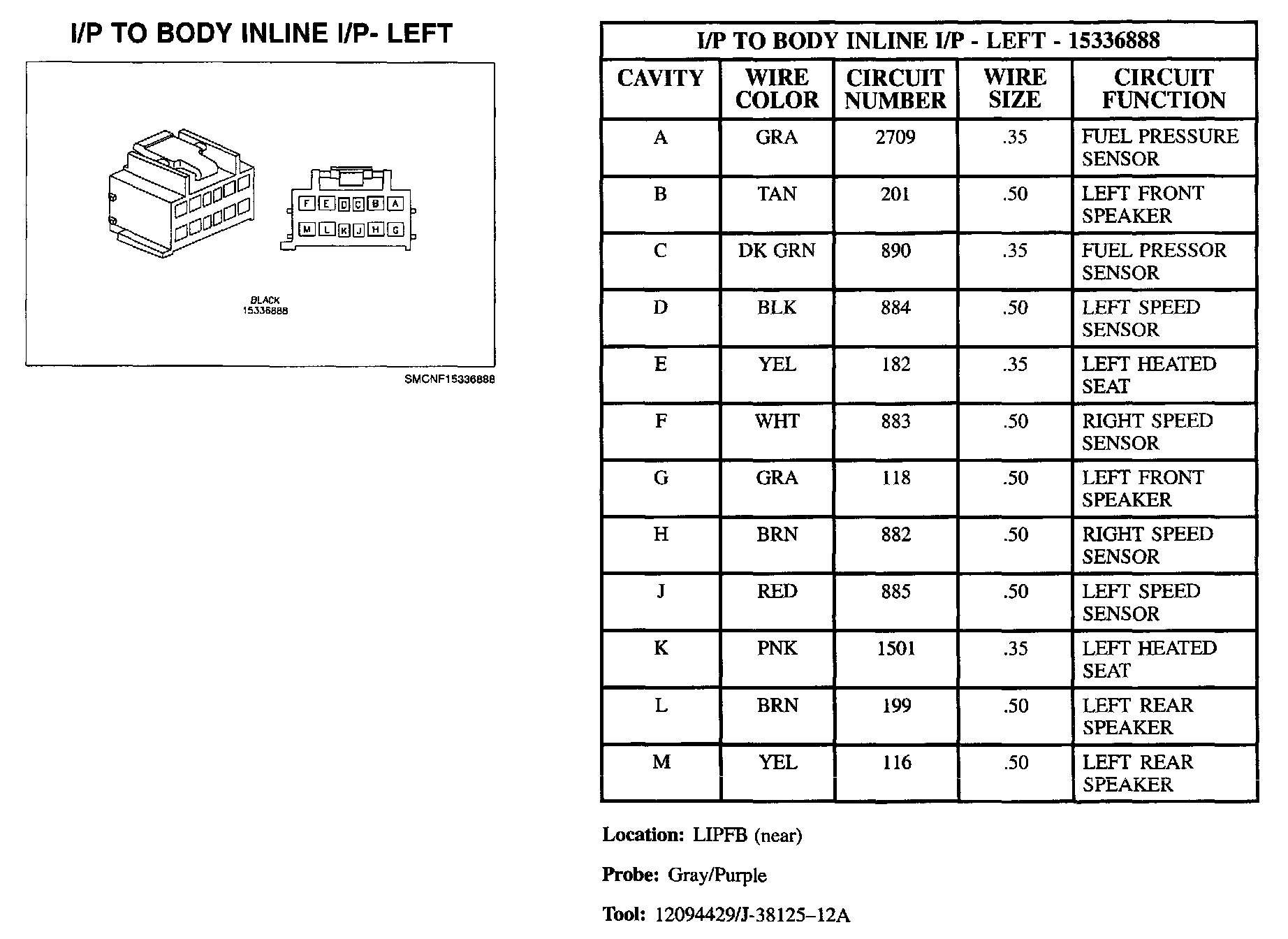

I/P To Body Inline I/P - Left:
