Seat Latch: Service and Repair

REMOVAL

CAUTION: LATCH BRACKETS MUST BE REPLACED IF IT EITHER VISIBLY DAMAGED OR THE VEHICLE WAS INVOLVED IN AN ACCIDENT DURING WHICH THE LATCH SYSTEM WAS USED.




1. Remove rear seat cushion assembly.

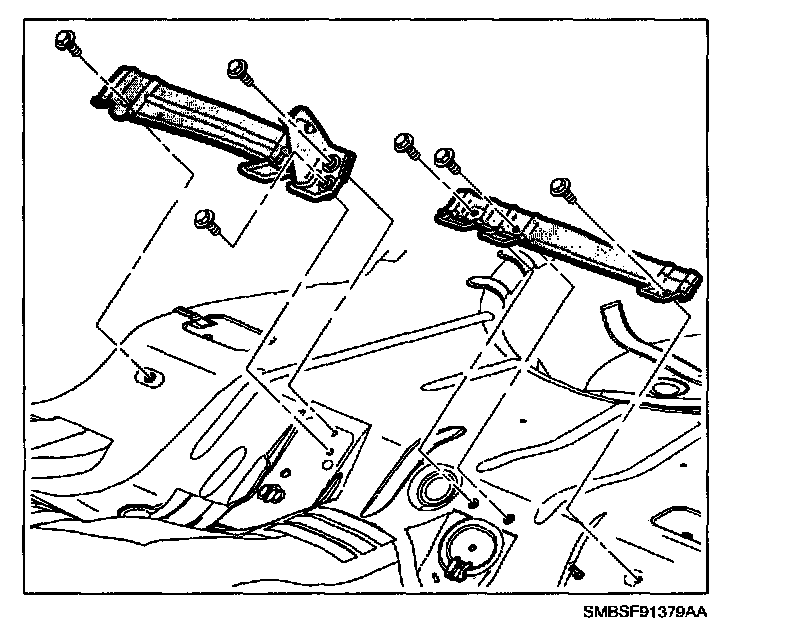

2. Remove latch bracket attaching bolts and brackets.

INSTALLATION




1. Position new brackets and torque bolts.

Torque:
Latch Bracket Attaching Bolts: 25 N.m (18 ft-lbs)
