Decklid Latch Mechanism

DECKLID LATCH MECHANISM

REMOVAL




1. Open rear compartment lid.

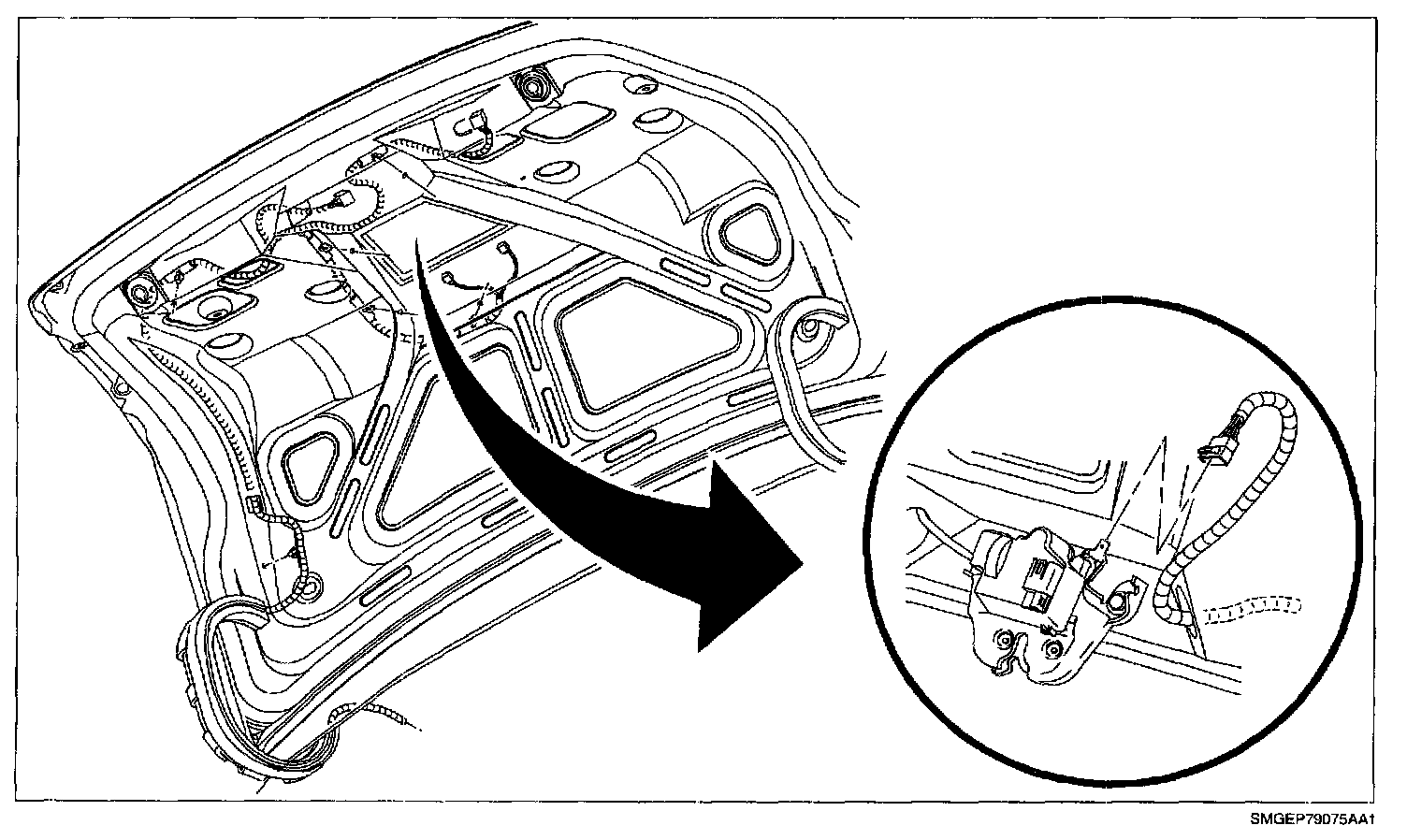

2. Disconnect electrical connector from latch assembly.

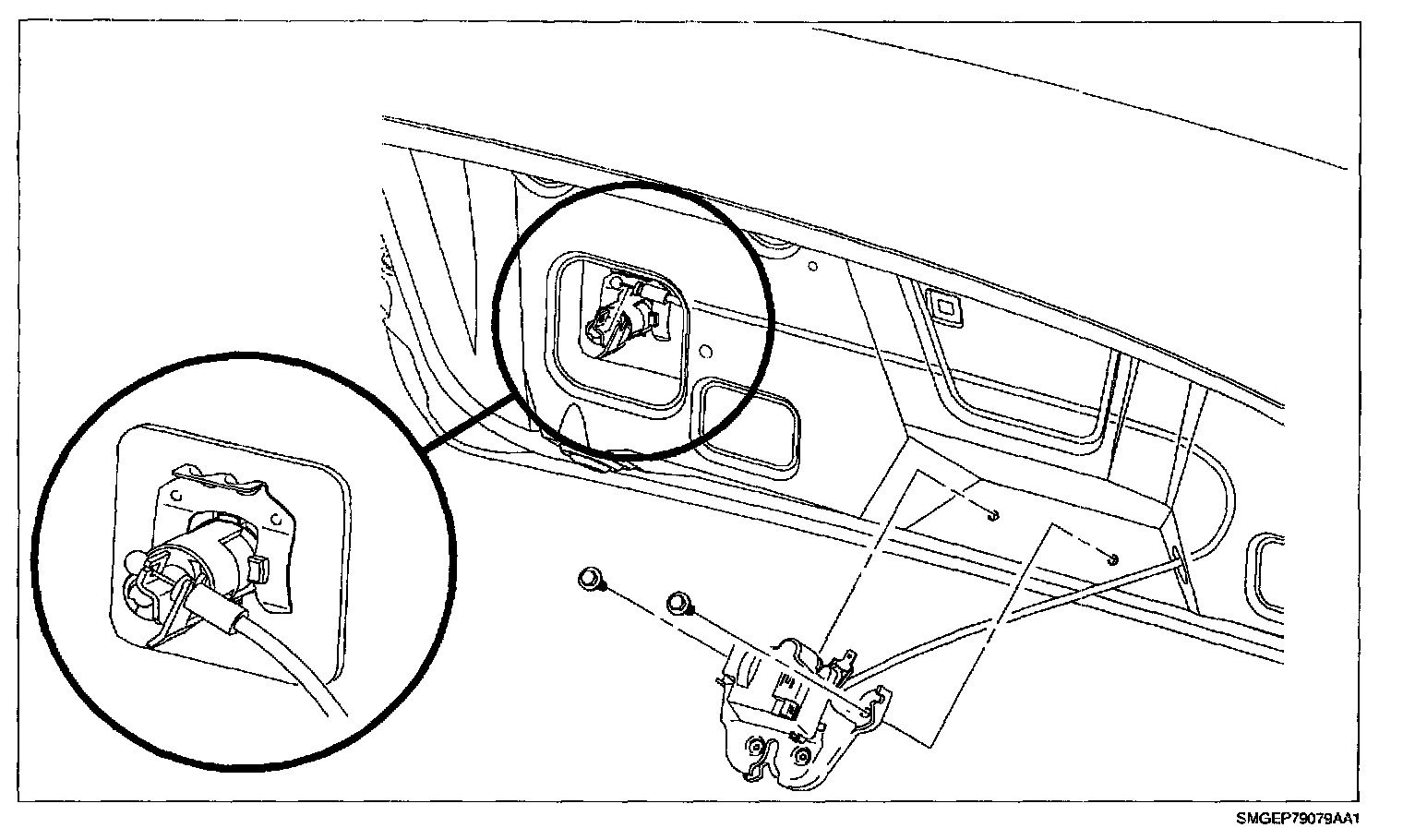

3. Remove screws from latch assembly.
4. Unhook lock cylinder actuator cable from latch assembly.
5. Remove latch assembly.

INSTALLATION




1. Install latch assembly.
2. Rook lock cylinder actuator cable to latch assembly.
3. Install screws to latch assembly.

Torque:
Lock Cylinder Actuator-to-Latch Assembly Screws: 10 N.m (89 in-lbs)

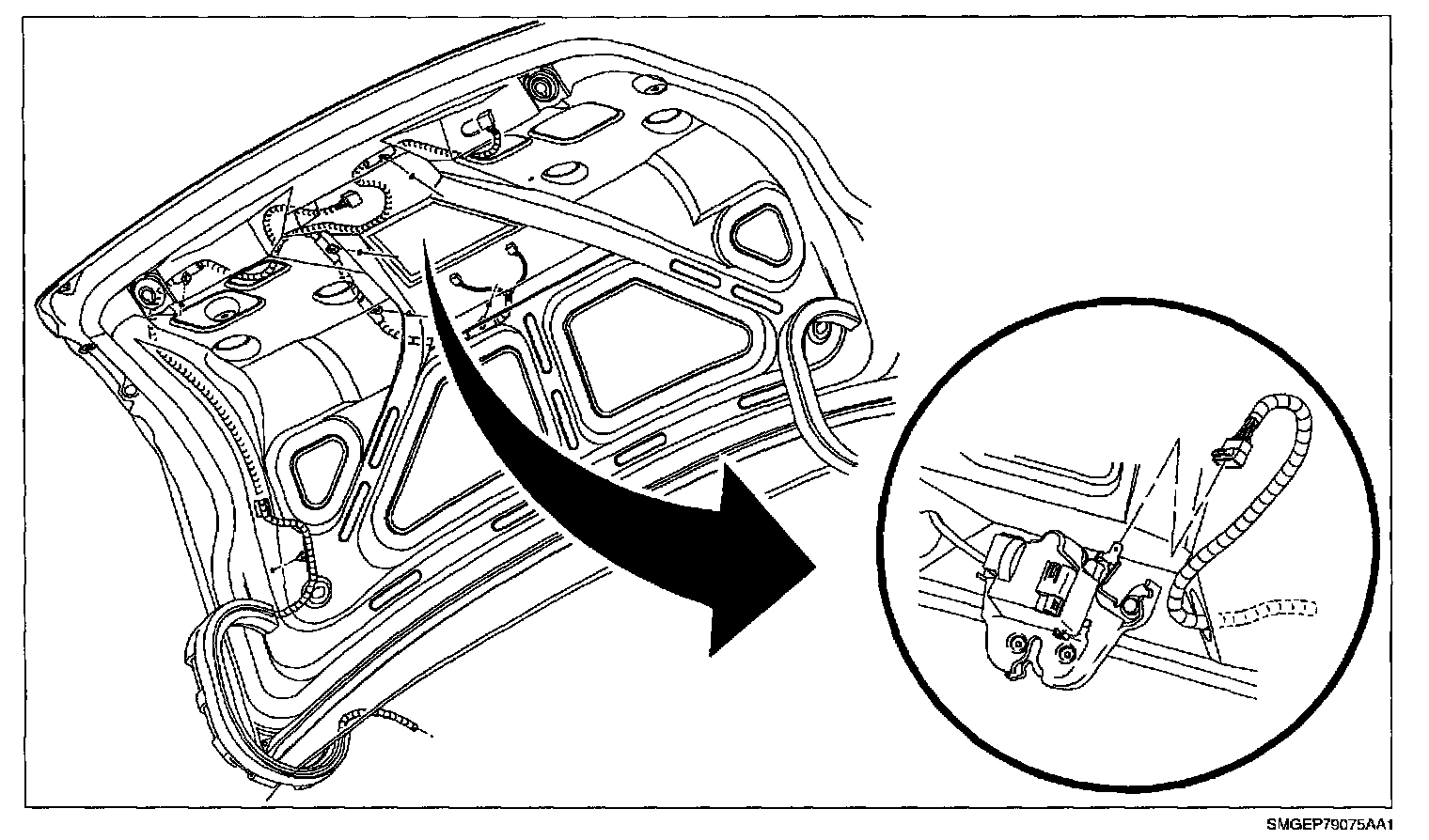

4. Connect electrical connector to latch assembly.




5. Close rear compartment lid.
